Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316

Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316
Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316

Large Image :  Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: ISO
Model Number: XL- Wedge Wire Screen Pipe - 020
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: Negotiable
Packaging Details: wooden, pallet
Delivery Time: 5-7days
Payment Terms: T/T, L/C
Supply Ability: 100pcs / 15days

Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316

Description
Keywords: Wedge Wire Screen Pipe, Johnson V Wire Filter Tube, LCG Screen Pipe, LCG Water Well Screen Pipe, Wire Wrapped Screen Tube, , V Wire Slot Tube, Sand Control Well Screen Pipe Material: Stainless Steel (AISI 304, 316, 316L,205,201...), Duplex Stainless Steel 2205, Etc
Filter Type: Filter Tube, Screen Pipe, Filter Cylinder, Filter Element, Mine Sieving Mesh, Strainer Nozzle, Header Lateral, Flat V Wire Panel, Strainer Pipe, Rotary Drum Screen, Filter Basket Surface Treatment: Electrolytic Polishing, Pickling And Polishing
Wedge Wire: #63: 1.5x2.5mm, #93: 2.3X3.5mm, #118: 3x4.6mm Selling Point: Smooth Surface, Anti-rust, Anti-corrosion, Non-clogging, Easy Installation, Rust Resistant
Connection: Welded Rings, Flange, Threaded Male And Female Coupling, API STC, BSP, G, NPT Usage: Water Treatment, Filter, Mineral, Gas /oil Filtration, Industry, Water Well, Food,etc
Highlight:

Anti Rust Wedge Wire Screen Mesh

,

SUS 304 Wedge Wire Screen Mesh

,

SUS 316L Johnson Screen Tube

SUS 304 316 316L Non Clogged Wedge Wire Johnson Screen Tube Antirust Customized



stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.





Product Quick Details:

1. SUS 304 316 316L Non Clogged Wedge Wire Johnson Screen Tube Antirust Customized

2. Selling point: High Strength, Easy Installation, Anti-Pressure, Rust resistant

3. Surface treatment: Electrolytic polishing or Pickling and polishing, smooth surface,No burrs, brightly

4. Well deep: v / wedge wire: 2.5x4mm Well deep: 200-300m,

                                   v / wedge wire: 3x4.6mm Well deep: 350-450m

                                   v / wedge wire: 3.0x6mm Well deep: 500-650m

5. Flow type: From outside to inside (FOTI), from inside to outside(FITO)

6. Production process: end connection are full welded

7. End connection: beveled, circumferential welded, threaded

8. Package:

Plastic bubble bag packaging

Transparent plastic bag inside, woven bag outside

Wooden box

Pallet


Features of Johnson Wedge Wire Screen pipe:



integrity at every point of welding.
Tight slot control for consistent flow rates.
Stringent Quality Control measures ensure a quality product.
Weld Rings or Threaded Fittings as per customer requirements.
Multiple wire profile options to suit applications and specification.
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells





Each case is clearly marked with:


Material: LCG Water Well Screen
Slot: 1.0mm, or customized
Diameter: 2", 3", 4" , 6", 8", 10", 12",

Or customized



Regular Specification:





Wedge Wire Johnson Well Screen Pipe
Specification (Profile wire): Width(mm): 1.0 1.5 1.8 2.0 2.2 2.5 3.0 3.2 etc.
Height(mm): 2.0 2.5 3.0 3.5 4.6 5.0 6.0 etc.
Specification (support rods) Width(mm): 1.8 2.0 2.3 2.5 3.0
Height(mm): 2.5 3.0 3.5 4.0 4.6 5.0 6.0
Round: From ø2.5mm to 6.0mm round wire
Note: other wires and rods available upon request
Slot size (mm) 0.03, 0.05, 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. or 30-3000 micron, or 0.001-0.118"
Material Low carbon wire, Low Carbon Galvanized
Length Upto 6 meters
Diameter 24-1300mm
Screen ends Plain beveled ends, male/female threaded, flange, close up.
Other sizes available on request.

Advantage



Reduce energy consumption and increase water flow.

Reduce erosion of entry surfaces and increase well life.

Allow a uniform and efficient well development.

Reduce significantly potential pump damage and subsequent maintenance costs.



Advantages of Wedge Wire Screen Pipe:



Non-clogging capabilities

Self supporting

High abreaction resistance

Large open area

Better sand filtration

Energy saving

Lowest possible cost

Long using life

Maximum flow capacity


Use:

The product is especially suitable for waxy oil, asphalt, diesel, beer, and high viscosity oil.
It is widely used in electric power industry, natural gas well, petrochemical industry,chemical industry, mining, paper making, environmental protection, metallurgy, food, sand control, Coarse filtration and fine filtration engineering for water treatment.



OEM service:


We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet

---------------------------------------------------------------------------------------------------------------

FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

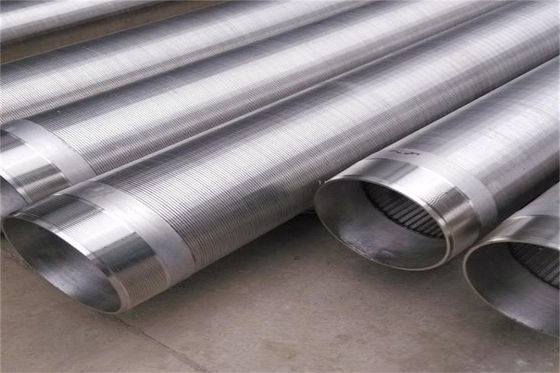

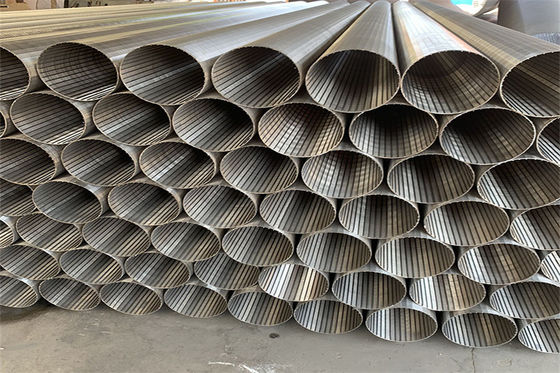

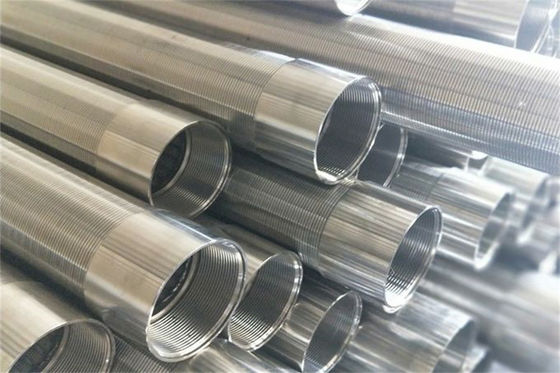

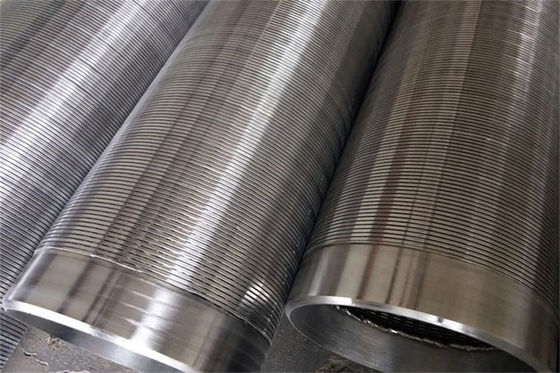

Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 0Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 1Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 2Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 3

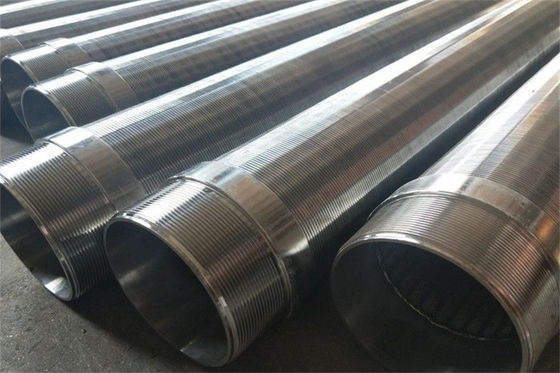

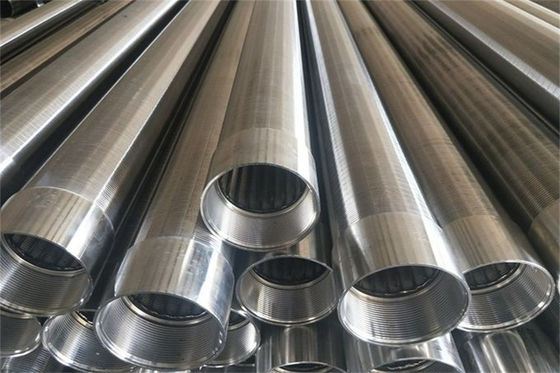

Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 4Non Clogged Wedge Wire Screen Mesh Anti Rust Johnson Screen Tube SUS 304 316 5
