Product Details:
|
| Production Name: | Agriculture Equipment Wedge Wire Wound Sand Control Well Strainer Tube | Application: | Tube Well Strainer Agriculture Equipment, Filter, Mineral, Gas /oil/fiquid Filtration, Industry, Water Well, Food,etc |
|---|---|---|---|
| Weave Style: | Wedge Wire Wrapped | Advantages: | No Magnetic, Non-clogging, Anti-corrosion, Anti-rust, High Temperature Resistance |
| Size: | 1-20" | Material: | Stainless Steel (AISI 304, 316, 316L,205,201...), Duplex Stainless Steel 2205, LCG Etc |
| End Connection: | Threaded Male And Female Coupling, API STC, BSP, G BSPNPT, | Filter Rating: | 50-2000micron, Upto 80% |
| High Light: | 304L Stainless Steel Wedge Wire Screen,304 Stainless Steel Wedge Wire Screen,316 Strainer Pipe Of Tube Well |
||

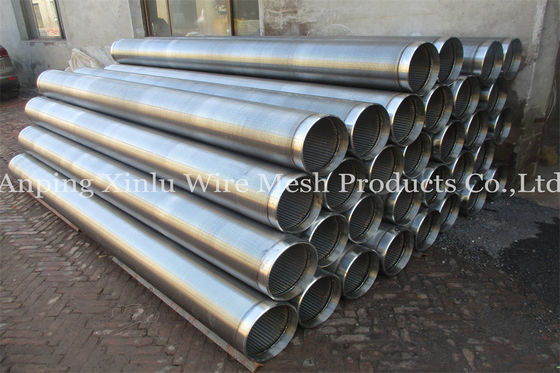

Agriculture Equipment Wedge Wire Wound Sand Control Johnson Tube Well Strainer Screen
Wedge Wire Screen Product Quick Details:
Product: stainless steel wedge wire screen
Material: Stainless steel 304, 304L, 316, 316L or as your need
Length/Width: Customized on demand
Minimum slot size: 20μm
Thickness: Customized on demand
Welding: ERW
Filter form: Surface filtration
Type: Positive and Anti Roll
Wedge wire screen is welded by a stainless steel wedge wire and a support rod sometimes called it johnson wedge wire screens. Widely used in the filtration and separation industry due to its unique advantages.
Our products are well known in the wedge wire industries, In addition to stable quality, control of slot size tolerance is ahead of the industry. With its excellent performance, it is also widely used in the environmental protection industry.
Xinlu Wedge Wire Screens Advantage
advantage 1 Material - High quality & low price
Xinlu is located in Anping County, the origin of the stainless steel wire mesh, and we have advanced wedge wire processing equipment. We have great advantages in the price and quality control of raw materials.
advantage 2 Tolerance control - Technical patent
Slot size tolerance is a problem we often overlook, suppliers should provide relevant data to customers.
After years of efforts, our R & D department successfully developed a wedge wire screen error correction equipment in 2012, this is one of the five technical patents of our company.
This is the reason why our products occupy the biggest market, Our independent research, and development equipment enables the slot size tolerance control to reach the top level in the industry.
advantage 3 Cleaning process (Patent technology) - More resistant to corrosion
Cleaning is the last process of the metal filter element. Ordinary cleaning is mostly pickling, which aims to brighten the appearance of the filter element.
Our cleaning equipment is also developed independently, it is different from ordinary pickling. After cleaning with our special equipment, in addition to the bright surface, also increased the corrosion resistance by about 40%.
So our wedgewire screen has a longer service life than others.
advantage 4 Wedge Wire Screen About anti-roll type - 50 micron
We often use anti-roll type products, at the same time, its production technology also reflects the technical level of the manufacturer.
We can achieve the 50-micron filtration accuracy of the anti-roll wedge wire screen.
advantage 5 Perfect roundness - Advanced equipment
Please see the picture below. If you use a wedge wire screen often, you will be familiar with the diagram below, the products made by many manufacturers are the first ones, not a high precision circle. Perfect roundness has better performance and can be self-cleaning.
advantage 6 Delivery time - Fast
We have an independent wedge wire screen workshop, Five advanced production equipment, experienced production team, Independent transport department, guaranteed the order completion speed.
POSITIVE AND ANTI ROLL
two kinds of wedge wire screen
Sometimes according to the requirements of the equipment, need to use the anti-roll wedge wire screen(PIC 2). Anti-roll wedge wire screen has one more process than the positive one.
Note: Our positive filtering precision can be 20 microns, this can fully meet all the use environment, but the anti-roll wedge wire screen can't reach this precision(more than 50 microns), so if you need it, please communicate with us the filtering accuracy you need.
wedge wire screen open area
The opening ratio is a very important parameter for the user, the calculation formula of the wedge screen opening ratio (F) is as follows:
F: Opening ratio
x: width of the wedge wire
n: Slot size
F=n/(n+a)x100%
The high opening ratio is a big advantage of wedge wire screening.
Xinlu Wedge Wire Range:
Wedge wire screen panels
Wedge wire filter
Wedge wire strainer
Wedge wire grate
Filter nozzle
Drum screen
Among them, we are the largest wedge wire filter elements manufacturer in North China
Wedge Wier Screen Application:
Its application is very extensive, and many places are gradually replacing the woven mesh.
1 Water treatment
2 Mine
3 Food and drinks
4 Chemical industry
5 Oil exploitation
6. Sugar production
It is also a material for making the drum screen(for Manure separator).
Wedge Wire Sand Control Screen Data reference table:
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND |
|||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
FAQ
1. Are you a wedge wire screen manufacturers or trader?
We are a manufacturer, it's our main product, has extensive experience in the production of this product, We upgraded our production equipment five years ago, we are far ahead of the market in terms of craftsmanship. At the same time, customers are welcome to visit the factory.
2. Packing?
a. With a plastic film winding and then packed in wooden cases
b. According to your requirement.
3. Min order?
Any quantity is ok.
A sufficient amount of quantity you will get a surprising price.
4. I don't know what specifications I need.
You just need to tell us where you want to use it, we will give you the most professional advice,and send you a sample test.
5. After-sale service.
If you are working with us for the first time, you may have questions about product quality, when buying in large quantities, you will definitely worry about product quality problems. Don't worry, we have a sound quality management system, and if there is a quality problem with the goods you receive, you only need to provide a batch of the product, we will exchange the goods for you in the first time.
