8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm

8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm
8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm

Large Image :  8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: ISO
Model Number: XL- Sand Control Screens - 033
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: Air bubble film, wooden, pallet; plastic film ,340 pcs per 20GP container
Delivery Time: 5-7days
Payment Terms: T/T, L/C
Supply Ability: 800pcs / 15days

8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm

Description
Filter Name: Low Carbon Galvanized Sand Control Screen Pipe Material: Low Carbon Galvanized
Long: 3050mm Outdiameter: 219mm (8-5/8")
V Wire: 3x4.6mm Support Rod :: 3.8mm
No. Of Rods: 48 PCS Slot: 0.04" (1.0mm)
Flow Type: From Outside To Inside Surface Treatment: Galvanized Or Silver Color Painted Low Carbon Steel
Usage: Water Well Filter End Joint: Welded Rings
Feature: Non-clogging Welded Type: V Wire Wrapped Welded
Tag: Galvanised Sand Control Screens ; 8-5/8" Sand Control Screens ; 219mm Sand Control Screens Technique: Point Welding
Application: Filteration Weight: 54KG/piece
High Light:

5/8" Wire Mesh Sand Screen

,

Galvanized Painted Sand Screen Mesh

,

Low Carbon Steel Johnson Screen Mesh

8-5/8" Low Carbon Galvanized Sand Control Screen Pipe For Deep Well



Low Carbon Galvanized Sand Control Screen Pipe is made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the pipe.

This technology allows the production of sand control screens when very high gap precision and screen resistance are required.

Due to using the newest welding technology we can obtain various distances between carrying wires, very



Low Carbon Galvanized Sand Control Screen Pipe Specification:

Name Low carbon Galvanized Sand Control Screen Pipe
Material Low carbon galvanized
Grade Q195 or Q235
O.D 219mm
Size 8-5/8"
Slot size 1.0 mm
Length 3050mm
End connection Welded rings
V Wire size 3x4.6mm
Support rod 3.8mm
Weight 54kg/pcs
  •

Johnson Wedge Wire Sand Control Screen Specification:



Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tensile

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

(Width x height)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.2x3.5mm ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.2x3.5mm ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0mm ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5mm ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0mm ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0mm ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2x3.5mm ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x4.6mm ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0mm ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0mm ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0x5.0mm ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0x5.0mm ø4.0MM×54



Low Carbon Galvanized Sand Control Screen Pipe Details:

  •
  • Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
  •

Low Carbon Galvanized Sand Control Screen Pipe Characteristics:


Low Carbon Galvanized Sand Control Screen Pipe is made up with support rod and wedge wire. The wedge wire and support rod are welded for strength and durability. The rod can be round wire, triangular and trapezoid. The wire is triangular(V-shaped wire).


Wedge Wire Sand control Screen has the structure of high open area and accurate slot dimension, Heat-resisting, anti-corrosive, good machinery capability, lasting long safety and reliability and so on. So it is widely used in different kinds of medium filtering.



Low Carbon Galvanized Sand Control Screen Pipe Advantages:
High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Good flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap

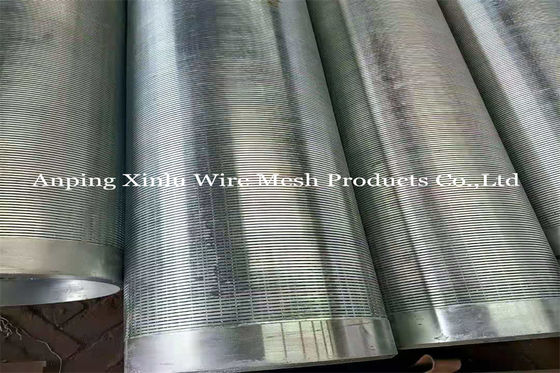

Low Carbon Galvanized Sand Control Screen PipePhotos and Package:

8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 08 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 18 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 2

8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 3

8 - 5/8" Galvanized Painted Sand Control Screens Low Carbon Steel 219mm 4



FAQ



Q: Are you trading company or manufacturer?

A: We are manufacturer.



Q:To quote,what’s information needed?

A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.



Q: How long is your delivery time?

A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.



Q: Could you provide free sample?

A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.



Q: What is your terms of payment?

A: 30% T/T as deposit,the balance before shipment.



Q:How to confirm the quality about your products?

A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.



Q: How do you make our business long-term and good relationship?

A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
