Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry

Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry
Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry

Large Image :  Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: ISO
Model Number: XL- Sand Control Screens - 035
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: Air bubble film, wooden, pallet; plastic film ,340 pcs per 20GP container
Delivery Time: 5-7days
Payment Terms: T/T, L/C
Supply Ability: 800pcs / 15days

Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry

Description
Filter Name: Stainless Steel V Wire Johnson Sand Control Screen Material: Stainless Steel 304
Long: 5800mm Outdiameter: 4-1/2 " (114mm)
V Wire: 2.5x4mm Support Rod :: 3.8mm
No. Of Rods: 32 PCS Slot: 0.04" (1.0mm)
Flow Type: From Outside To Inside Surface Treatment: Polished
Usage: Water Well Filter End Joint: Welded Rings
Feature: Non-clogging Welded Type: V Wire Wrapped Welded
Tag: AISI Sand Control Screens ; 304L Sand Control Screens ; Water Well Sand Screen Technique: Point Welding
Application: Filteration Weight: 45KG/piece
High Light:

Stainless Steel Wire Mesh Sand Screen

,

Johnson Sand Screen Mesh

,

Sand Control Johnson Screen Mesh

Stainless Steel Johnson Sand Control Screen For Environmental Protection Industry





Product Description:



Wire Wrap Wound Johnson Stainless Steel Well Screens For Filter Equipment is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.



Specification:



Material Stainless steel
Grade 304
O.D 114mm
Size 4-1/2"
Slot size 1.0mm
Length 5800 m
End connection None
Wire size 93 #
Support rod 118 #
Wire shape V shape




Characteristic:

  • Continuous uninterrupted gap, smooth flow
  • The gap is v-shaped, the outside is small, the inside is large, and it is not easy to block.
  • The length can be customized according to customer requirements, one-piece molding
  • Solder joints are welded by electric resistance, and the solder joints are firm and not easy to fall off.​
  • wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are guaranteed.
  • the profile can be made of different shapes like, wedge shaped, round, bar shaped, and can accompany with the wrap wire according to different application.



OEM service:



Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.



Custom range



Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.



Application:



Water industry

Food industry

Environmental protection



Profile Wire Sand Control Screen Specification:



Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tensile

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

(Width x height)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.2x3.5mm ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.2x3.5mm ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0mm ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5mm ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0mm ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0mm ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2x3.5mm ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x4.6mm ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0mm ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0mm ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0x5.0mm ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0x5.0mm ø4.0MM×54



Profile Wire Sand Control Screen Details:

  •
  • Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
  •
  •

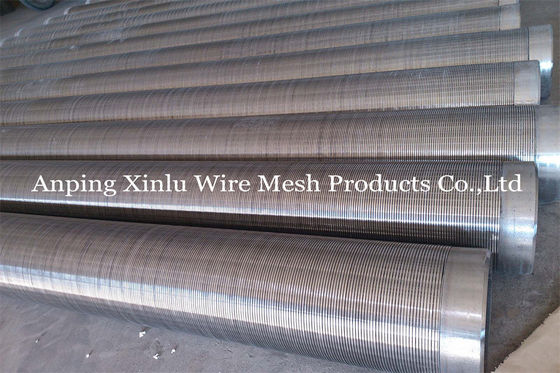

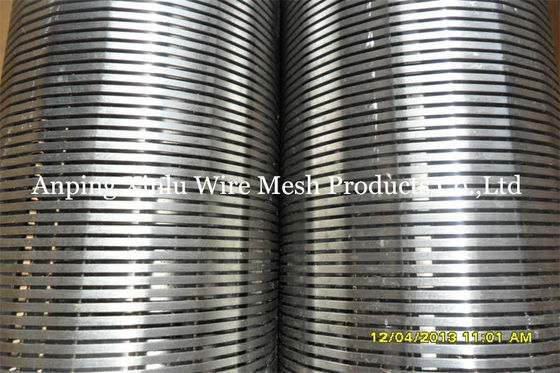

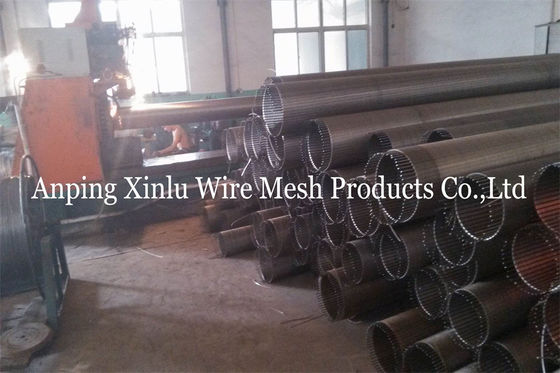

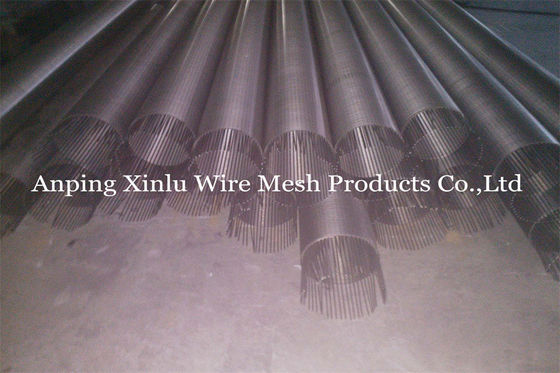

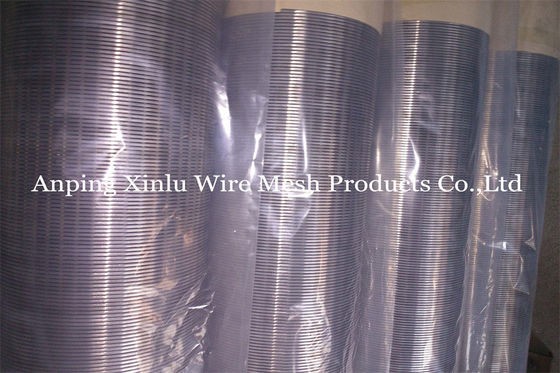

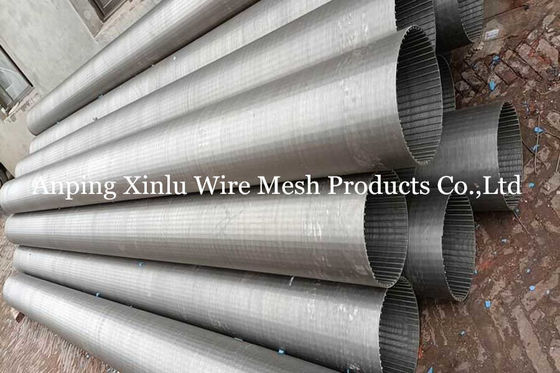

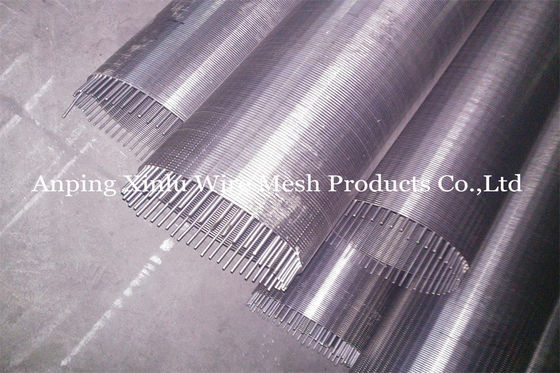

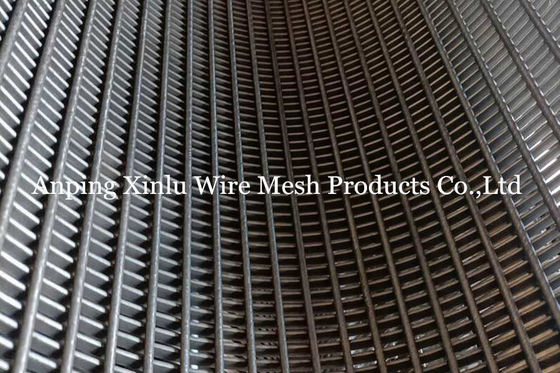

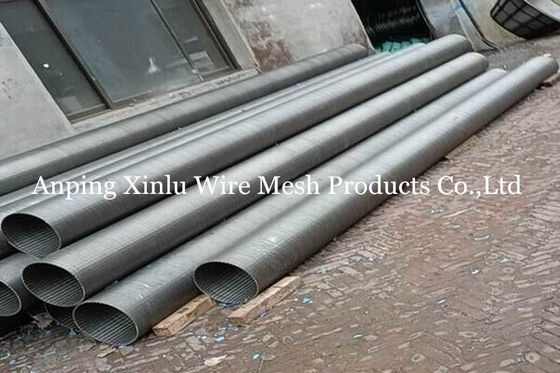

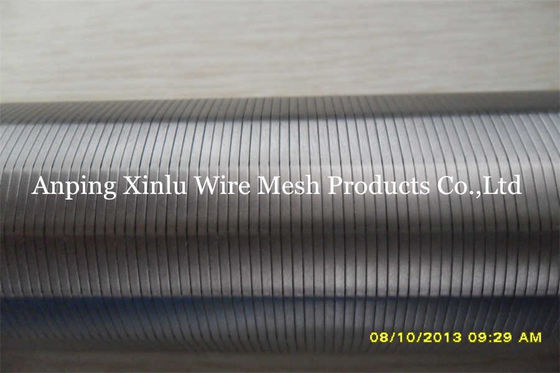

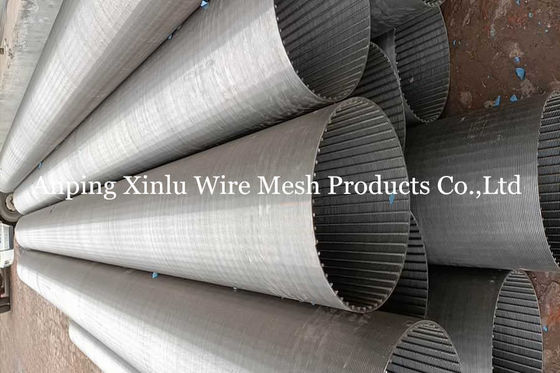

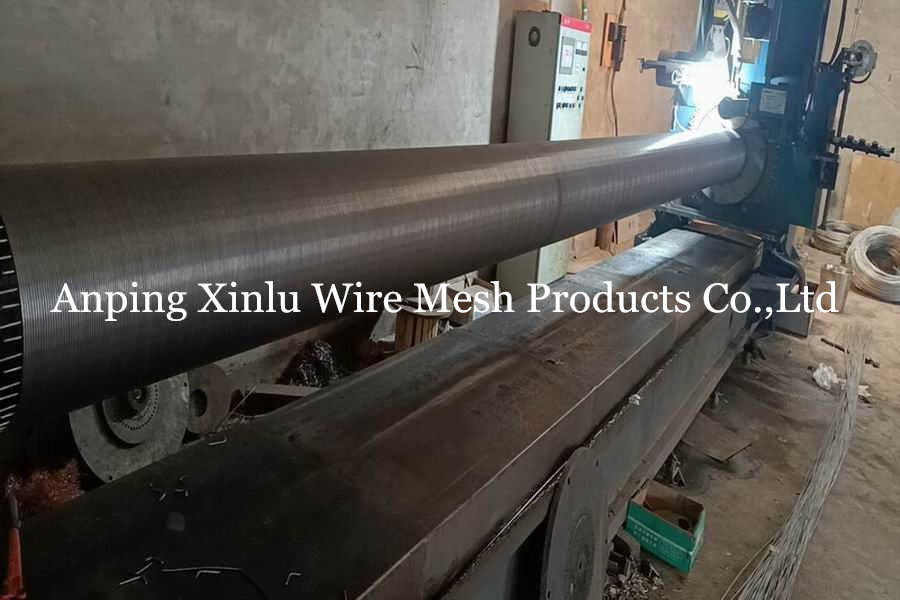

Profile Wire Sand Control Screen photos and Package:

Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry 0Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry 1Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry 2Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry 3

Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry 4

Stainless Steel Johnson Sand Control Screens For Environmental Protection Industry 5



FAQ



Q: Are you trading company or manufacturer?

A: We are manufacturer.



Q:To quote,what’s information needed?

A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.



Q: How long is your delivery time?

A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.



Q: Could you provide free sample?

A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.



Q: What is your terms of payment?

A: 30% T/T as deposit,the balance before shipment.



Q:How to confirm the quality about your products?

A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.



Q: How do you make our business long-term and good relationship?

A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.





Product Tags:  AISI Sand Control Screens ; 304L Sand Control Screens ; water well sand screen
