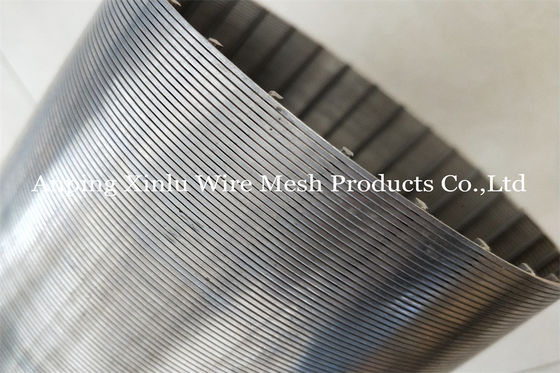

12" Water Well Stainless Steel Filtration Screen Tube Thread End Joint

12" Water Well Stainless Steel Filtration Screen Tube Thread End Joint

Product Description:

Our stainless steel filter screen features aperture sizes of 0.010", 0.020", 0.030", 0.040", or customized, and types including screen pipes, tubes, nozzles, plates, panels, baskets, lateral arm pipes and candles. End joints come in the forms of welding rings, thread joints and flanges. All products are packaged inside transparent plastic bags, outside woven bags or bubble bags, wooden cases, pallets or containers. Mesh sizes range from 4-400mesh. This stainless steel filter screen is widely used for stainless steel Johnson type filter screens, stainless steel Johnson filter tube, stainless steel water well screen, stainless steel wedge wire screen, stainless steel filter basket and stainless steel filter candle.



Features:

• Product Name: Stainless Steel Filter Screen
• Material: Stainless Steel 201 No Magnetic, 304, 304L, 316L, 321, Duplex Stainless Steel 2205
• End Joint: Welding Ring, Thread Joint, Flange
• Filter Type: Screen Pipe, Screen Tube, Screen Nozzle, Screen Plate, Screen Panel, Screen Basket, Screen Laterial Arm Pipe, Screen Candle
• Name: Stainless Steel Water Well Screen, Stainless Steel Johnson Filter Screen
• Mesh Size: 4-400mesh
• Special Feature: Water Well Screen, Wire Wrapped Screen Tube, Water Well Screen Pipe, Stainless Steel Mesh



Technical Parameters:

Parameter	Value
Material	Stainless Steel 201 No Magnetic, 304, 304L, 316L, 321, Duplex Stainless Steel 2205
Aperture Size	0.010", 0.020", 0.030", 0.040", Or Customized
Mesh Size	4-400mesh
Name	Stainless Steel Water Well Screen, Stainless Steel Johnson Filter Screen
Package	Inside Transparent Plastic Bag, Outside Woven Bag Or Bubble Bag, Wooden Case, Pallet Or Container
End Joint	Welding Ring, Thread Joint, Flange
Length	10ft / 20ft, Or Customized
Surface Treatment	Electrolytic Polishing Or Polishing Or Pickling Polished
Application	Water Well, Water Treatment, Sand Control, Mining, Food Processing, Chemical Industry, Filtration, Separation, Sieving And Screening, Etc.
Filter Type	Screen Pipe, Screen Tube, Screen Nozzle, Screen Plate, Screen Panel, Screen Basket, Screen Laterial Arm Pipe, Screen Candle
Keywords	Stainless Steel Johnson Type Filter Screens, Oil Well Screen, Wire Wrapped Screen Pipe, Deep Well Screen, Water Well Screen



Applications:

Stainless Steel Filter Screen:
XinLu's Stainless Steel Filter Screen is a perfect choice for water well, water treatment, sand control, mining, food processing, chemical industry, filtration, separation, sieving and screening, etc. It is made of stainless steel 201 no magnetic, 304, 304L, 316L, 321, duplex stainless steel 2205, with aperture size 0.010", 0.020", 0.030", 0.040", or customized, mesh size 4-400mesh, length 10ft / 20ft, or customized. It has high tensile strength, wear resistance, corrosion resistance and high temperature resistance. The brand name is XinLu, model number is 1", 2", 3", 4", 6-5/8", 8-5/8",10-3/4", 12", 12-3/4", 14", 16", 16-3/4" or customized, the place of origin is Anping County Xinlu Wire Mesh Products Co.,Ltd, certification is CO, FROM E, FORM F, minimum order quantity is 3pcs, price is according to the specification, packaging details is inside transparent plastic bag, outside woven bag or bubble bag, wooden case, pallet or container, delivery time is 5-8days, or according to the order quantity, payment terms is T/T, supply ability is 300-500pcs/month. Other related products are wire wrapped screen pipe, stainless steel oil filter screen, wedge wire screen pipe, water treatment screen, sieve bend screen.
