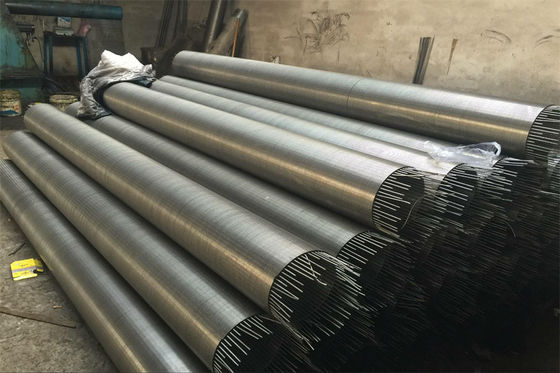

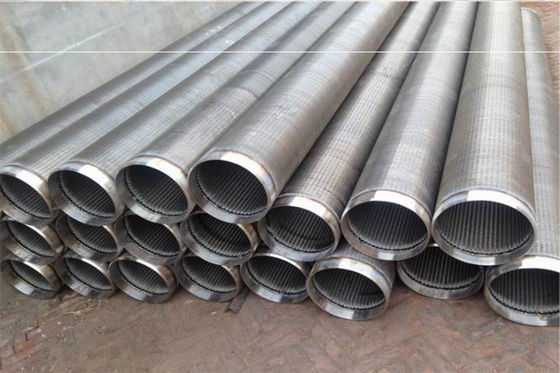

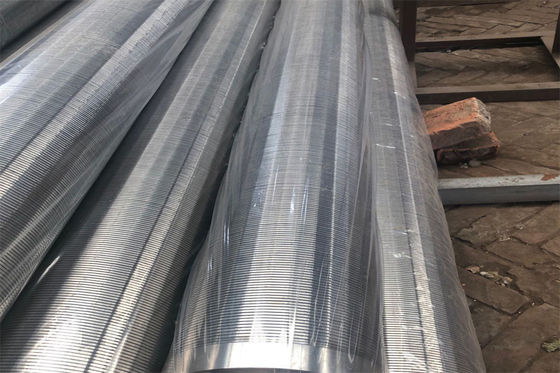

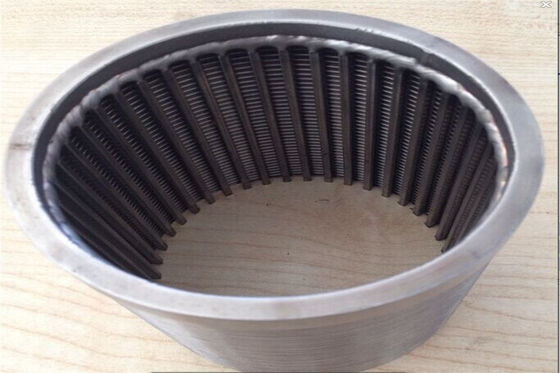

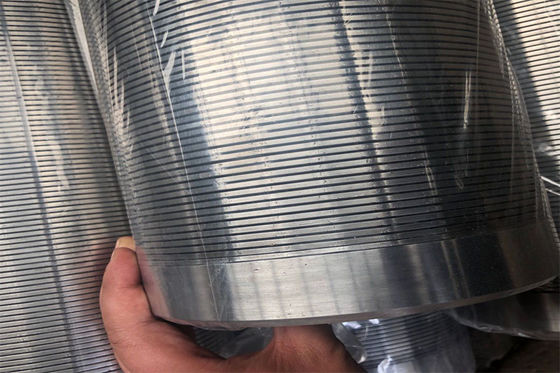

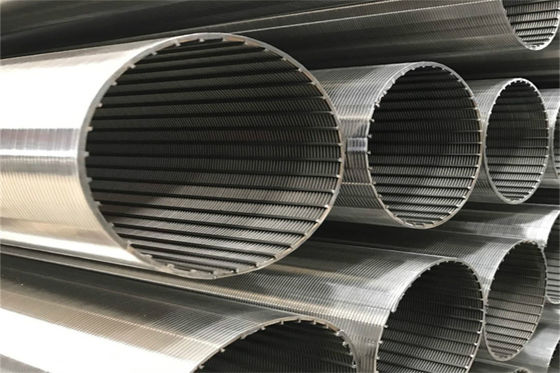

Stainless Steel 304 Continuous Slot Screen Pipe, Anti Corrosion V Wire Screen TubeFor Water Filter
The continuous-slot well screen Pipe, another name v wire screen tube, is widely used throughout the world for water filter, oil, and gas wells, and is the dominant screen type used in the water well industry. It can use with the deep well, geothermal well, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry. The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and son on the organic solution recycling filters.
Technical Data Of Continuous - Slot Well Screen Pipe, V Wire Screen Tube
Slot size(mm): 0.10, 0.15, 0.25, 0.30-3.0, also achieved upon customer request.
Open area up to 60%
Material: Low carbon, low carbon galvanized steel(lcg), steel treated with plastic spraying, stainless steel (304, 316,etc)
Lengths up to 20ft
Diameter ranging from 25mm to 2000mm
End connection: Plain beveled ends for butt welding or threaded or flange or Cover Blind block
The data for reference only, we can design it as the clients' request.
Continuous Slot Screen Pipe, V wire Screen Tube Technical Data reference table:
| Diameter (mm) |
Wall Thickness (mm) |
| |
4 |
6 |
8 |
| Ø 127 |
√ |
|
|
| Ø 159 |
√ |
√ |
|
| Ø 168 |
√ |
√ |
|
| Ø 219 |
√ |
√ |
|
| Ø 273 |
√ |
√ |
|
| Ø 325 |
|
√ |
√ |
| Ø 426 |
|
√ |
√ |
| Ø 529 |
|
√ |
√ |
| Ø 630 |
|
√ |
√ |
| Slot size(mm) |
1 |
1.5 |
2 |
3 |
1 |
1.5 |
2 |
3 |
1 |
1.5 |
2 |
3 |
| Percent Open Area (%) |
8.8 |
13.9 |
18.8 |
30.4 |
6.3 |
9.5 |
12.7 |
20 |
5.6 |
8.6 |
11.4 |
16.9 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
Custom range For Continuous Slot Screen Pipe
Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.
Continous slot screen pipe Application:
Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
