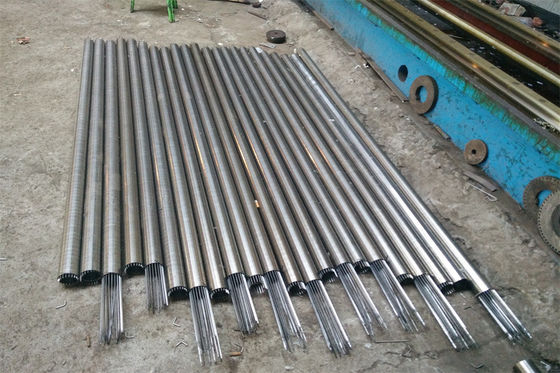

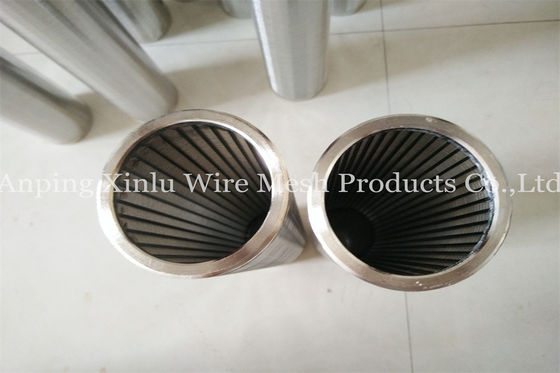

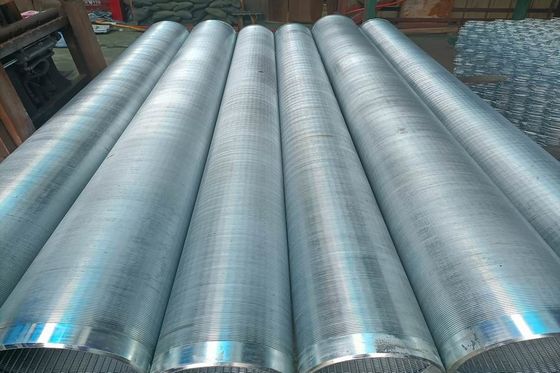

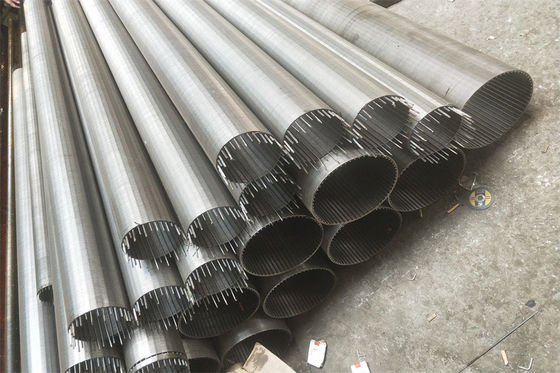

Point Welding Continuous Slot Screen Pipe, Non Clogging Water Well Screen Tube
Our water well continuous slot screens are made from robust designs that can cater for varying depths and gravel formation types.
Given our flexible working culture and stock material, we can provide fast turnarounds of water well screens. Simply fill in the water well screen datasheet and we will get back to you promptly with our offer.
Water Well Continuous Slot Screens Characteristics:
1. Many varied applications in sieving, sorting and separating.
2. Wedge Wire surface is self-cleaning.
3. Various construction types:
4. Wedge Wire on round bars for light duty.
5. Wedge Wire on fins for medium or heavy duty.
6. Grates edged with flat bar or angle.
7. Highly polished grates for wet areas, bars or bench tops.
8. Heavy grids and support bar systems for absorption vessels.
9. Grates and grids made as single or multi-part items.
10. Materials to suit applications (Stainless steel 304 or 316, mild steel etc)
Packaging & Delivery:

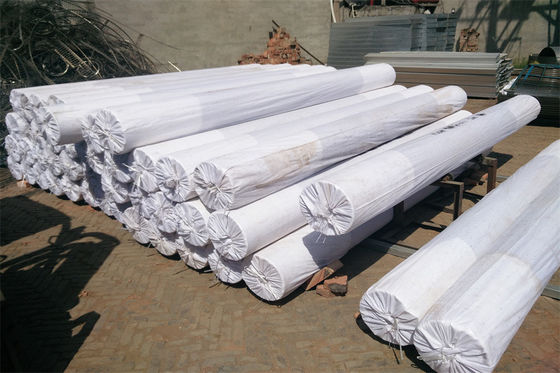

With plastic film or buble package with weave bag, then packed in wooden boxes or container
According to your requirment.
Delivery Time
Within 7 working days. Or according to your order quantity
Specifications of Water Well Continuous Slot Screen Pipe
| material |
304,304L,321,316L,Carbon steel |
| wire size |
0.75×1.5mm, 1×2mm, 1.8x2.5mm, 2X3mm, 2.2×3mm, 2.3x3.5mm, 3x4.6mm, 3×6mm |
| diameter |
25mm, 33mm, 36mm, 40mm, 45mm, 48mm, 50mm, 53mm, 57mm,60mm, 70mm, 75mm, 80mm, 82mm, 85mm, 89mm, 95mm, 100mm, 102mm, 114mm, 125mm, 130mm, 150mm, 159mm, 168mm, 177mm, 200mm, 205mm, 219mm, 273mm, 323mm, 345mm, 426mm, 450mm, 500mm, 600mm, 620mm, 650mm,...,2000mm |
| width(mm) |
1.0 1.50 1.80 2.30 3.00 3.30 3.70
|
| end connection |
welding rings (beveled end), thread coupling(STC, BSP, NPT, PT, BSPT, APT, BTC) or flange or sealed |
| surface treatment |
galvanized, painted, polish, packiled and passivation, etc. |
| note |
wires, rods and slot sizes can be customized |
Water Well Continuous Slot Screen Pipe Technical Data reference table:
| Diameter (mm) |
Wall Thickness (mm) |
| |
4 |
6 |
8 |
| Ø 127 |
√ |
|
|
| Ø 159 |
√ |
√ |
|
| Ø 168 |
√ |
√ |
|
| Ø 219 |
√ |
√ |
|
| Ø 273 |
√ |
√ |
|
| Ø 325 |
|
√ |
√ |
| Ø 426 |
|
√ |
√ |
| Ø 529 |
|
√ |
√ |
| Ø 630 |
|
√ |
√ |
| Slot size(mm) |
1 |
1.5 |
2 |
3 |
1 |
1.5 |
2 |
3 |
1 |
1.5 |
2 |
3 |
| Percent Open Area (%) |
8.8 |
13.9 |
18.8 |
30.4 |
6.3 |
9.5 |
12.7 |
20 |
5.6 |
8.6 |
11.4 |
16.9 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
If you have any inquires please feel free to contact us !
We can make any sizes according to your drawing.
Why choose us ?
1. We are the professional manufacturer.
2. We can give you the best quality products with competitive price.
3. Professional sales team can give you feedback within 24 hours.
4. We offer 12 months excellent after-sale service.
5. We offer customized service.
6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
