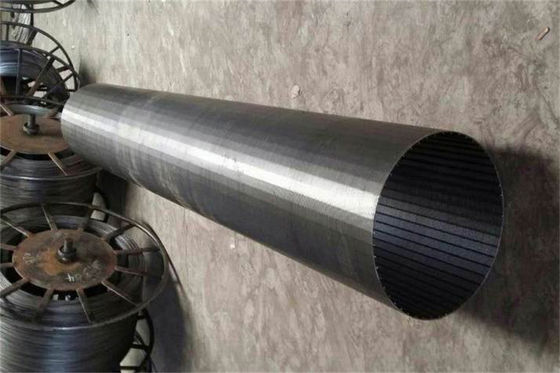

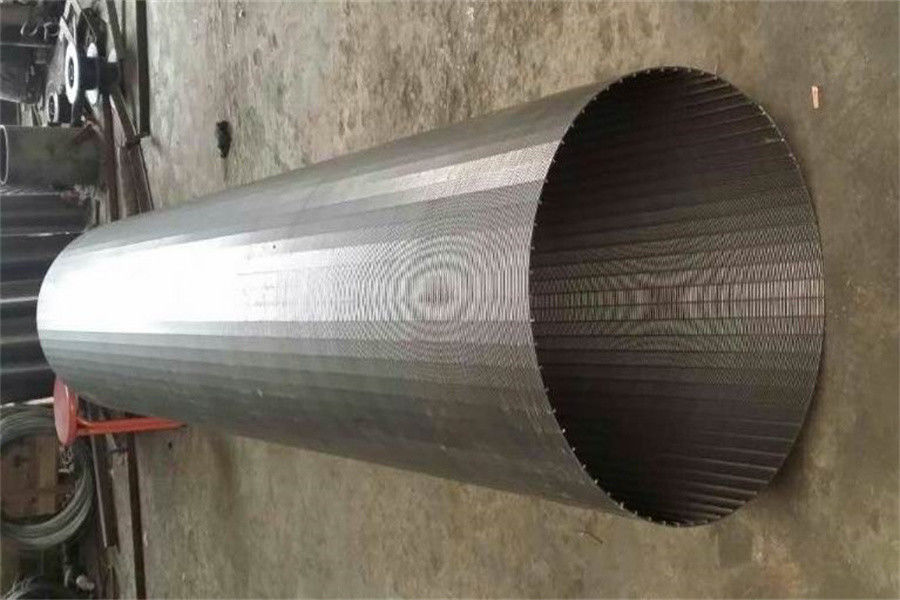

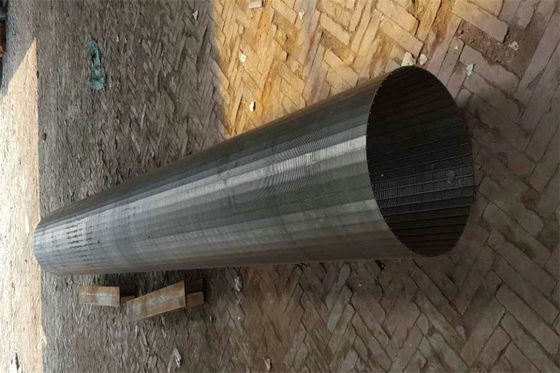

OD 180mm Slot 0.1mm Stainless steel AISI 316 Johnson V Wire 1.5x2.5mm Continuous Slot Screen Pipe
Johnson Wire Continuous Slot Screen Tube is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
Product Description:
1. Name: Johnson Wire Continuous Slot Screen Tube, Johnson Well Screen, Changeable Filter Elements, Johnson Wire Screen, Wire Wrapped Filter Screen, V Wire Slot Tube, Wedge Wire Strainer Pipe, Oil Well Screen, Water Well Screen
2. Material: Stainless Steel AISI 316
3. OD: 179.5mm, ID 171.5mm
4. Slot: 0.1mm
5. Profile wire: 1.5x2.5mm, Support Wire: 2x3mm
6. Length: 4000mm
7. Flow Type: FITO, FOTI

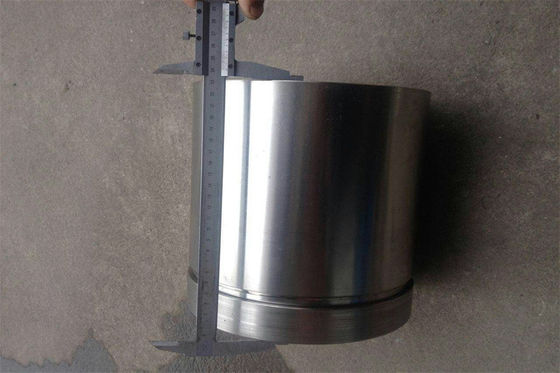

8. Ends:
Welded rings/Plain beveled ends;

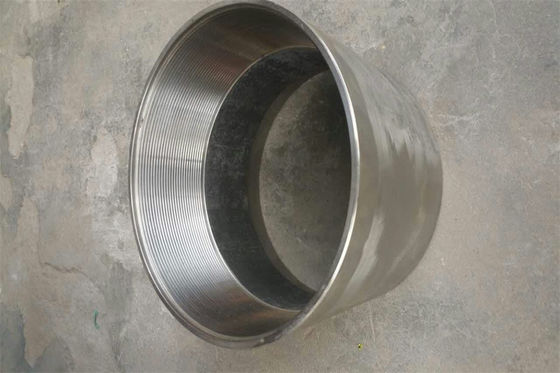

Male/female threaded coupling: API STC, PT NPT, BSP, G;
Flange ;
Closed up,
Open ends etc.
Use: Johnson Wire Continuous Slot Screen Tube can be used as below:
1. Well sand control filter
2. Widely used in vairous kinds of medium filtering
3. As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
4. The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
5. The organic solution recycling filter
6. Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Advantages: Johnson Wire Continuous Slot Screen Tube
1. Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.
If you have any enquires please feel free to contact us !
Benefits: Johnson Wire Continuous Slot Screen Tube
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity

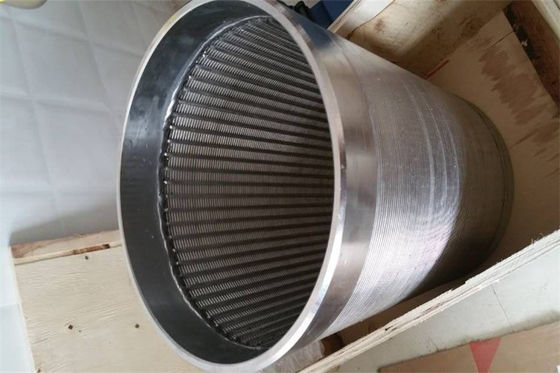

Packaging & Delivery: Johnson Wire Continuous Slot Screen Tube
With plastic film or buble package with weave bag, then packed in wooden boxes or container
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
According to your requirment.
Water Well Continuous Slot Screen Pipe Technical Data reference table:
| Diameter (mm) |
Wall Thickness (mm) |
| |
4 |
6 |
8 |
| Ø 127 |
√ |
|
|
| Ø 159 |
√ |
√ |
|
| Ø 168 |
√ |
√ |
|
| Ø 219 |
√ |
√ |
|
| Ø 273 |
√ |
√ |
|
| Ø 325 |
|
√ |
√ |
| Ø 426 |
|
√ |
√ |
| Ø 529 |
|
√ |
√ |
| Ø 630 |
|
√ |
√ |
| Slot size(mm) |
1 |
1.5 |
2 |
3 |
1 |
1.5 |
2 |
3 |
1 |
1.5 |
2 |
3 |
| Percent Open Area (%) |
8.8 |
13.9 |
18.8 |
30.4 |
6.3 |
9.5 |
12.7 |
20 |
5.6 |
8.6 |
11.4 |
16.9 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
If you have any inquires please feel free to contact us !
We can make any sizes according to your drawing.
