Duplex Steel 2507 Johnson Wedge Wire Continuous Slot Filter Screen Tube
Continuous Slot Wedge Wire Screen Nozzle also be named: Johnson screen nozzle, Johnson strainer nozzle, Johnson filter nozzle, wedge wire strainer nozzle, stainless steel filter nozzle, double flow screen nozzle, double head filter nozzle, v wire screen nozzle, water filter nozzles, water & gas strainer nozzle.
Product Quick Details:

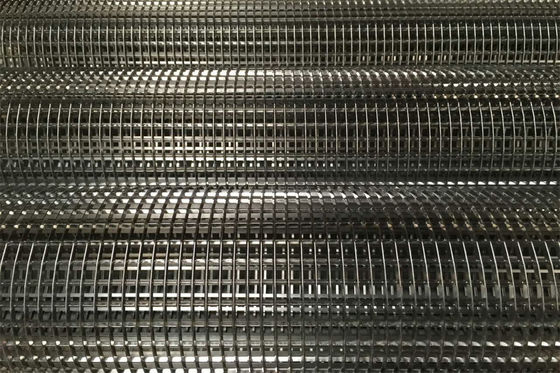

1. Name: Johnson Wedge Wire Continuous Slot Filter Screen Tube
2. Diameter: 137mm
3. Material: Duplex steel 2507
4. Slot: 5mm
5. Profile wire: 2x3.8mm
6. Wedge Support wire: 3x6mm
7. Length: 2.5m
8. Flow type: From inside to outside
9. End: Nothing
10.Weight: 17kg
Duplex Steel 2507 Johnson Wedge Wire Continuous Slot Filter Screen Tube
Johnson Wedge Wire Continuous Slot Filter Screen Tube Description:
Johnson Continuous Slot Wedge Wire Screen Tube has been known as the world's leading manufacturer and provider of industrial filters since 1904.
Xinlu Company provide screening solutions to almost every industry,including:
Water Well
Waste Water Treatment
Water supply systems
Coal & Mine
Food Processors & Beverage Screens
Environmental protection
Refining & Petrochemical
Architecture & Construction
1. Johnson Wedge Wire Continuous Slot Filter Screen Tube is made up of Vee-shaped wire and round rod in each intersection welded together.
2. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.
3. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly.It has the firm structure, high temperature resistant, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc.
4. It also can be used for a variety of medium.
Johnson Wedge Wire Continuous Slot Filter Screen Tube
Material: Stainless Steel 201,205, 304,304L,316L,321 etc.
Profile Wire (mm): Width : 1.0 1.2 1.5 2.0 2.2 3.0 3.2 4.0
Height : 2.0 3.5 4.6 5.0 6.0 7.0
Support Rod (mm): Round wire:ø3.0 - 6.0mm
Slot Size (mm): 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, 0.02-- 10mm, also can be customized as your request.
End connection Male/female threaded couplings; Welded rings / Plain beveled ends, Flange; Closed Up etc.
Benefits: Johnson Wedge Wire Continuous Slot Filter Screen Tube
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Packaging & Delivery: Johnson Wedge Wire Continuous Slot Filter Screen Tube
With plastic film or buble package with weave bag, then packed in wooden boxes or container
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
According to your requirment.
Johnson Wedge Wire Continuous Slot Filter Screen Tube Technical Data reference table:
sizes
(inch) |
OD
(mm) |
slot
(mm) |
Length
(m) |
Tenslile
strength |
collapse
Strength |
wrap wire
vee-shaped wire
(Width x height:mm)
|
support rod
Round wire (mm) |
| 3-1/2 |
88.9 |
1 |
2.9 |
>22 |
10.2 |
2.3 x 3.5 |
3.0MMx22 |
| 4-1/2 |
114.3 |
1 |
2.9 |
>28 |
11.5 |
2.3 x 3.5 |
3.0MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
1 |
5.8 |
>33 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.0 x 6.0 |
5.OMM×32 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>34 |
21.9 |
2.3 x 3.5 |
3.8MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>50 |
38.2 |
3.0 x 4.6 |
4.0MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>60 |
46 |
3.05 x 6.35 |
5.0MMx48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
9 |
2.5 x 4 .0 |
3.8MM×55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>60 |
39.5 |
3.0 x 4.6 |
4.5MMx55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>100 |
48 |
3.2 x 6.0 |
5.0MM×55 |
| 12-3/4 |
323.9 |
1 |
5.8 |
>120 |
37.2 |
3.0 x 6.0 |
4.0MMx56 |
| 14 |
355.6 |
1 |
2.9 |
>80 |
37.8 |
3.0 x 5.0 |
4.0MMx59 |
| 16 |
426 |
1 |
2.9 |
>80 |
37.5 |
3.0 x 5.0 |
4.OMM×64 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
If you have any inquires please feel free to contact us !
We can make any sizes according to your drawing.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
---------------------------------------------------------------------------------------------------------------
