0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M

0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M
0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M

Large Image :  0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO, Quality Inspection Report
Model Number: XL - Continuous Slot Screen - 13
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Price: Negotiable
Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 150pcs / month

0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M

Description
Name: OD89 Mm Length 3M Slot 0.040" Continuous Slot Screen Pipe For Water Well Filter Filter Type: Johnson Screen Tube,stainless Steel Filter Tube, Wedge Wire Strainer Pipe, Water Well Screen Pipe
Products: Filter Pipe, Screen Tube, Filter Cartridges, Diatom Candle Filters, Header Laterals, Rotating Drum Screens, Strainer Nozzles, Resin Traps Length: 3m
Applications: Outside-in Flow Feature: Polishing, Non Clogged, Non-clogging, Smooth Surface,Easy Installation, Long Using Life
Inverted: External Circumferential Inverted Wire And Axial Internal Support Rods. Benefites: Economical, Suitable For Most Applications, Precision Openings
High Light:

3M Continuous Slot Screen

,

89mm Continuous Slot Screen

,

Filter Rotating Drum Screens



OD89 Mm Length 3M Slot 0.040" Continuous Slot Screen Pipe For Water Well Filter





Continuous Slot Screen Pipefor water well filter can be used as below:

1. Well sand control filter

2. Widely used in vairous kinds of medium filtering
3. As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
4. The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
5. The organic solution recycling filter



Advantages: Continuous Slot Screen Pipe for water well filter


1. Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.




Continuous Slot Screen Pipe for water well filter Description:
Material: Stainless Steel 201,205, 304,304L,316L,321 etc.
Profile Wire (mm): Width : 1.0 1.2 1.5 2.0 2.2 3.0 3.2 4.0
Height : 2.0 3.5 4.6 5.0 6.0 7.0
Support Rod (mm): Round wire:ø3.0 - 6.0mm
Slot Size (mm): 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, 0.02-- 10mm, also can be customized as your request.
End connection Male/female threaded couplings; Welded rings / Plain beveled ends, Flange; Closed Up etc.


Benefits: Continuous Slot Screen Pipe for water well filter

Non-clogging capabilities

Self supporting

High abreaction resistance

Large open area

Better sand filtration

Energy saving

Lowest possible cost

Long using life

Maximum flow capacity

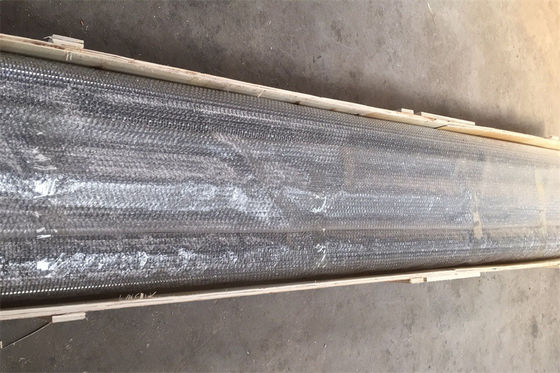

Packaging & Delivery: Continuous Slot Screen Pipe for water well filter

With plastic film or buble package with weave bag, then packed in wooden boxes or container

Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet

According to your requirment.



Continuous Slot Screen Pipe for water well filter Technical Data reference table:

sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tenslile
strength
collapse
Strength

wrap wire
vee-shaped wire

(Width x height:mm)

support rod
Round wire (mm)
3-1/2 88.9 1 2.9 >22 10.2 2.3 x 3.5 3.0MMx22
4-1/2 114.3 1 2.9 >28 11.5 2.3 x 3.5 3.0MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 1 5.8 >33 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0 x 6.0 5.OMM×32
8-5/8 219.1 1 5.8 >34 21.9 2.3 x 3.5 3.8MMx48
8-5/8 219.1 1 5.8 >50 38.2 3.0 x 4.6 4.0MMx48
8-5/8 219.1 1 5.8 >60 46 3.05 x 6.35 5.0MMx48
10-3/4 273.1 0.75 5.8 >50 9 2.5 x 4 .0 3.8MM×55
10-3/4 273.1 1 5.8 >60 39.5 3.0 x 4.6 4.5MMx55
10-3/4 273.1 1 5.8 >100 48 3.2 x 6.0 5.0MM×55
12-3/4 323.9 1 5.8 >120 37.2 3.0 x 6.0 4.0MMx56
14 355.6 1 2.9 >80 37.8 3.0 x 5.0 4.0MMx59
16 426 1 2.9 >80 37.5 3.0 x 5.0 4.OMM×64



 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 0
ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----

If you have any inquires please feel free to contact us !

We can make any sizes according to your drawing.





FAQ



Q: Are you trading company or manufacturer?

A: We are manufacturer.



Q: To quote,what’s information needed?

A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.



Q: How long is your delivery time?

A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.



Q: Could you provide free sample?

A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.



Q: What is your terms of payment?

A: 30% T/T as deposit,the balance before shipment.



Q: How to confirm the quality about your products?

A: During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.



Q: How do you make our business long-term and good relationship?

A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.



0.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 10.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 20.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 30.040" Continuous Slot Screen Filter Rotating Drum Screens OD 89mm Length 3M 4

---------------------------------------------------------------------------------------------------------------



Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
