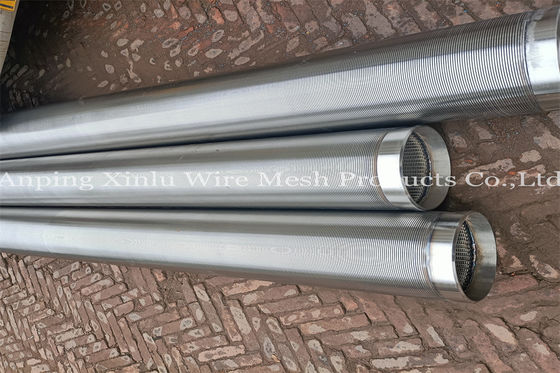

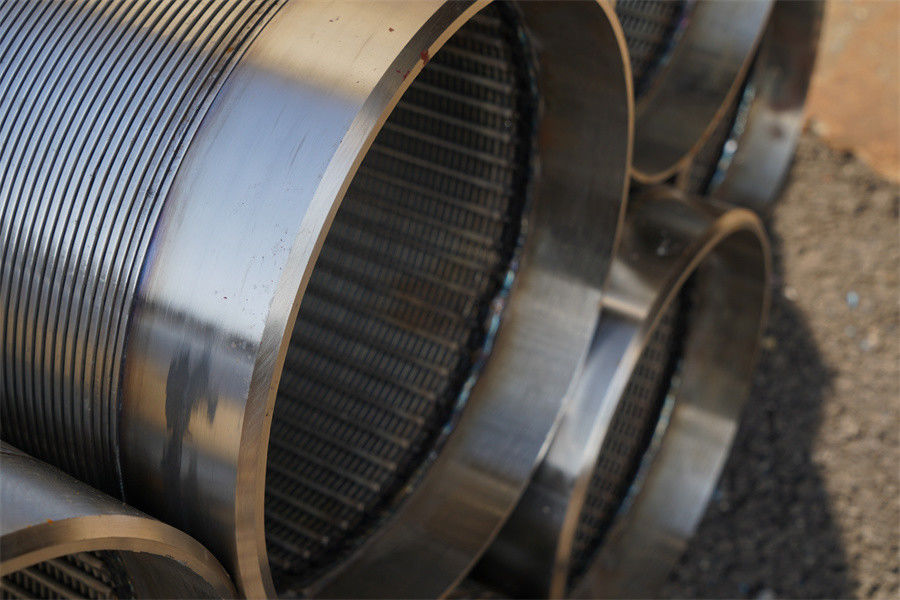

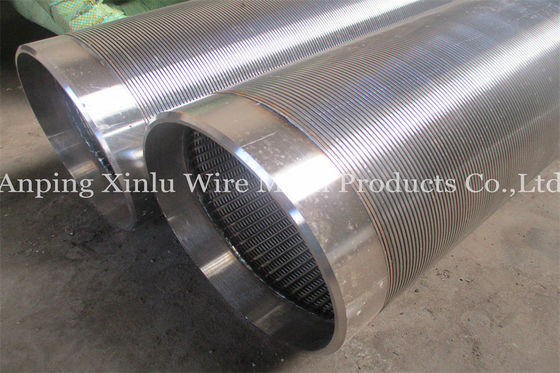

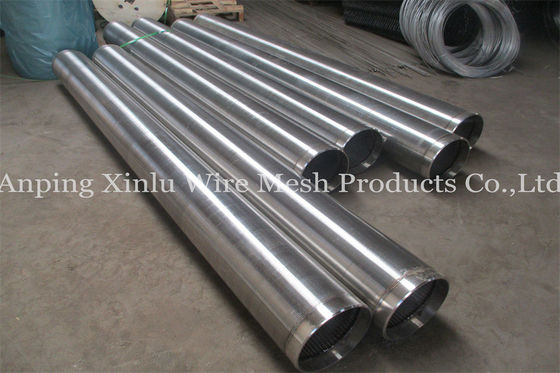

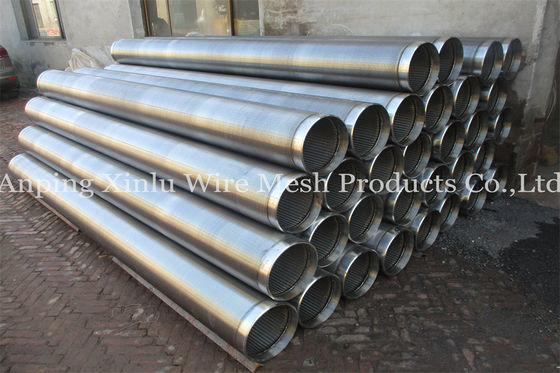

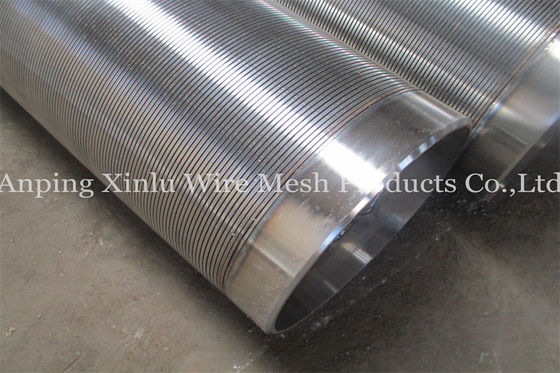

273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe

273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe
273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe 273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe 273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe 273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe 273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe 273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe

Large Image :  273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Sand Control Screens - 04
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 150pcs / month

273mm Sand Control Screens anti rust Agriculture Equipment Tube Well Strainer Pipe

Description
Features: Non-clogging Production Name: Wedge Wire Sand Control Screens For Tube Well Strainer Agriculture Equipment
Diameter: 2 ",3 ",4 ", 6 " ,8 ",10 ",12 ",14 ",16 " And So On Slot: 0.05mm,0.1mm,0.25mm,0.5mm,1.0mm Etc
Long: 2.9m,5.8m Technique: Point Welding
Material: Low Carbon Galvanized,stainless Steel
High Light:

Anti Rust Sand Control Screens

,

273mm Sand Control Screens

,

Agriculture Tube Well Strainer



Wedge Wire Sand Control Screens Tube Well Strainer For Agriculture Equipment





Wedge Wire Sand Control Screens Product Quick Details:

1.  Wedge Wire Sand Control Screen Tube Well Strainer

2. External Diameter: 273mm

3. Material: Stainless steel no magnetic

4. V wire: 3x4.6mm

5. Support wire: 3.9mm

7. Opening: 0.040"

8. End: Flange rings

9. Element Overall Length: 20ft

10. Weight: 120g/pcs



Product Name: Wedge Wire Sand Control Screen Tube Well Strainer, Johnson V Wire-Wound Strainer Sand Control Screen Pipe, v wire water well screen, wire wrapped screen pipe, Johnson specialty screen, spiral screen tube, strainer pipe, rod based continuous slot wedge wire screen, drilling well screen, reversed rolled slot well screens, screen cylinders, continuous-slot well screen, Well screen, water filter, filtration element



Wedge Wire Sand Control Screen Tube Well Strainer

Wedge Wire is a durable and versatile sizing screen product available in a range of sizes. Used for Filtration, Grating, Sieve Bends, Sizing Screens, Trommel Drums.

Wedge Wire is used for both solid and liquid filtration. We supply to your specifications for all project and industry needs.

A wide range of sizes are available to suit your specific requirements. Flat panels, cylinders and curved sieves are fabricated from grade 304 or 316 stainless steel and can be used for many applications servicing the following industries:

Mineral and aggregate processing

Architectural applications

Water and wastewater

Chemical

Plastics extrusion

Wedge Wire Sand Control Screen Tube Well Strainer offer large open area, high flow rates and low pressure drop.

The surface is abrasion-resistant and non-clogging due to the wedge shaped 304 or 326 stainless steel wire.

The Wedge Wire Sand Control Screen Tube Well Strainer are easy to clean and have a high mechanical strength making them ideal for the following applications;

Straining

Filtering

Dewatering

Separating

Classifying

Media retention

Sizing

Drying

Inter-Screen can also supply wedgewire for Architectural and Civil applications.


OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom range: Wedge Wire Sand Control Screen Tube Well Strainer

1. Material : Low carton, mild steel wire, iron wire, low carton galvanized steel (LCG), stainless steel (201, 205, 304,316, 316L, 321 etc.), Duplex stainless steel

2. Diameter: DN 20-1000mm (1-40inch)

3. Slot size: 0.05mm,0.08mm,0.1mm,0.15mm,0.20mm,0.25mm,0.30mm,0.50mm,0.75mm,1.0mm... 6.00mm also achieved upon request.

4. Wrapped wire 1*2mm, 1.5*2.5mm, 1.5*2mm, 1.8x2.5mm, 2*3mm, 2.2*3.5mm, 2.3*3.5mm, 2.5x4mm, 3*4.6mm
5. Support rod 2*3mm,2.5x4mm,3*4.6mm VEE wire or ø2.5-6.0mm round wire

6. Length: 500mm,1000mm,1500mm,2000mm,..... ,6000mm.

7. End connection:  groove connection, Plain beveled ends for butt welding (welded ring)or threaded male &female coupling (API STC, PT NPT, BSP, G, ).(spiral), Flange, Closed up

8. Surface Electrolytic polishing, Pickling and polishing or Galvanized


Packaging & Delivery: Wedge Wire Sand Control Screen Tube Well Strainer

With plastic film or buble package with weave bag, then packed in wooden boxes or container

Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet

According to your requirment.





Wedge Wire Sand Control Screen Tube Well Strainer Data reference table:



sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tenslile
strength
collapse
Strength

wrap wire
vee-shaped wire

(Width x height:mm)

support rod
Round wire (mm)
3-1/2 88.9 1 2.9 >22 10.2 2.3 x 3.5 3.0MMx22
4-1/2 114.3 1 2.9 >28 11.5 2.3 x 3.5 3.0MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 1 5.8 >33 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0 x 6.0 5.OMM×32
8-5/8 219.1 1 5.8 >34 21.9 2.3 x 3.5 3.8MMx48
8-5/8 219.1 1 5.8 >50 38.2 3.0 x 4.6 4.0MMx48
8-5/8 219.1 1 5.8 >60 46 3.05 x 6.35 5.0MMx48
10-3/4 273.1 0.75 5.8 >50 9 2.5 x 4 .0 3.8MM×55
10-3/4 273.1 1 5.8 >60 39.5 3.0 x 4.6 4.5MMx55
10-3/4 273.1 1 5.8 >100 48 3.2 x 6.0 5.0MM×55
12-3/4 323.9 1 5.8 >120 37.2 3.0 x 6.0 4.0MMx56
14 355.6 1 2.9 >80 37.8 3.0 x 5.0 4.0MMx59
16 426 1 2.9 >80 37.5 3.0 x 5.0 4.OMM×64



PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----



FAQ





The Important Question: How Many Meters of the well deep can be used in?

A:  Common screen pipes can be used in wells with a depth of 200-300 meters.

Large wire can also be customized for 650m deep well.



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

---------------------------------------------------------------------------------------------------------------
