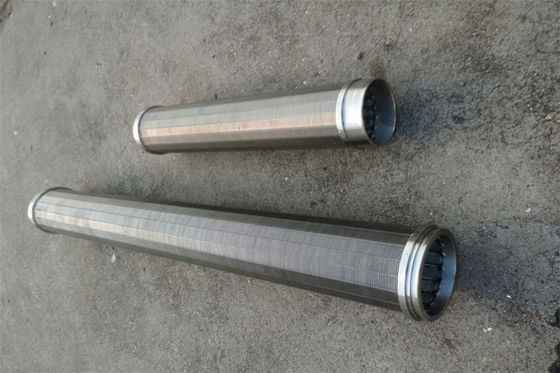

Carbon Steel Sand Control Screens Wire Wrapped Filter Screen 500mm Length

Large Image : Carbon Steel Sand Control Screens Wire Wrapped Filter Screen 500mm Length

Product Details:

Place of Origin:	Anping County, Hebei Province, China
Brand Name:	Anping XinLu Wire Mesh Products Co.,Ltd
Certification:	CO
Model Number:	XL - Sand Control Screens - 07

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	wooden case, pallet
Delivery Time:	8-10days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	150pcs / month

Contact Now

Carbon Steel Sand Control Screens Wire Wrapped Filter Screen 500mm Length

Description

Production Name:	V Shape Wire Wrapped Stainless Steel & Carbon Steel Sand Control Filter Screen	Application:	In Water Well For Dewatering Sand Control
Technique:	Full Welded	Surface:	Electrolytic Polished, Pickling Polished
Gap (mm):	0.25mm, 0.5mm, 0.63mm, 0.75mm, 1.0mm In Usual. (Min Slot: 0.025mm)	Connection Type:	Welded Rings Or Male/ Female Threaded Connection.
Normal Length:	2.9m And 5.8m, To Fit Container)	High Tag:	Johnson Stainless Steel Well Screen Dewatering Johnson Stainless Steel Well Screen Sand Control Stainless Steel Well Screen
High Light:	Carbon Steel Sand Control Screens , Wire Wrapped Sand Control Screens , 500mm Metal Filter Screen

V Shape Wire Wrapped Stainless Steel & Carbon Steel Sand Control Filter Screen

V Wire Wrapped Stainless Steel & Carbon Steel Sand Control Filter Screen

For maximum screen performance potential, there are several depending factors, including wire and rod shape, construction, steel grade and microstructure, as well as slot accuracy over the full length of the screen. To meet the most demanding requests, Bilfinger Water Technologies continues to engineer and manufacture stainless steel screens from 0.7 m (2 ft.) to 12.2 m (40 ft.)

Carbon Steel Casing & Slotted Screen Belled End

Casing can also be improved with special threads or mechanical joints for attachment to custom screen assemblies and provided in lengths up to 12 m (40 ft.).

Package V Wire Wrapped Stainless Steel & Carbon Steel Sand Control Filter Screen

with plastic film or buble package with weave bag, then packed in wooden boxes or container
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet

According to your requirment.

Custom range: V Wire Wrapped Stainless Steel & Carbon Steel Sand Control Filter Screen

1. Material : Low carton, mild steel wire, iron wire, low carton galvanized steel (LCG), stainless steel (201, 205, 304,316, 316L, 321 etc.), Duplex stainless steel

2. Diameter: DN 20-1000mm (1-40inch)

3. Slot size: 0.05mm,0.08mm,0.1mm,0.15mm,0.20mm,0.25mm,0.30mm,0.50mm,0.75mm,1.0mm... 6.00mm also achieved upon request.

4. Wrapped wire 1*2mm, 1.5*2.5mm, 1.5*2mm, 1.8x2.5mm, 2*3mm, 2.2*3.5mm, 2.3*3.5mm, 2.5x4mm, 3*4.6mm

5. Support rod 2*3mm,2.5x4mm,3*4.6mm VEE wire or ø2.5-6.0mm round wire

6. Length: 500mm,1000mm,1500mm,2000mm,..... ,6000mm.

7. End connection: groove connection, Plain beveled ends for butt welding (welded ring)or threaded male &female coupling (API STC, PT NPT, BSP, G, ).(spiral), Flange, Closed up

8. Surface Electrolytic polishing, Pickling and polishing or Galvanized

V Wire Wrapped Stainless Steel & Carbon Steel Sand Control Filter Screen Data reference table:

sizes (inch)	OD (mm)	slot (mm)	Length (m)	Tenslile strength	collapse Strength	wrap wire vee-shaped wire (Width x height:mm)	support rod Round wire (mm)
3-1/2	88.9	1	2.9	>22	10.2	2.3 x 3.5	3.0MMx22
4-1/2	114.3	1	2.9	>28	11.5	2.3 x 3.5	3.0MM×22
6-5/8	168.3	0.75	5.8	>40	12.8	2.3 x 3.5	3.8MM×32
6-5/8	168.3	1	5.8	>33	12.8	2.3 x 3.5	3.8MM×32
6-5/8	168.3	0.63	5.8	>83	45	3.0 x 6.0	5.OMM×32
8-5/8	219.1	1	5.8	>34	21.9	2.3 x 3.5	3.8MMx48
8-5/8	219.1	1	5.8	>50	38.2	3.0 x 4.6	4.0MMx48
8-5/8	219.1	1	5.8	>60	46	3.05 x 6.35	5.0MMx48
10-3/4	273.1	0.75	5.8	>50	9	2.5 x 4 .0	3.8MM×55
10-3/4	273.1	1	5.8	>60	39.5	3.0 x 4.6	4.5MMx55
10-3/4	273.1	1	5.8	>100	48	3.2 x 6.0	5.0MM×55
12-3/4	323.9	1	5.8	>120	37.2	3.0 x 6.0	4.0MMx56
14	355.6	1	2.9	>80	37.8	3.0 x 5.0	4.0MMx59
16	426	1	2.9	>80	37.5	3.0 x 5.0	4.OMM×64

PROFILE WIRE
WIDTH(mm)	1.50	1.50	2.30	2.30	1.80	3.00	3.70	3.30
HEIGHT(mm)	2.20	2.50	2.70	3.60	4.30	4.70	5.60	6.30

SUPPORT ROD						ROUND
WIDTH(mm)	2.30	2.30	3.00	3.70	3.30	Ø2.5--Ø5mm
HEIGHT(mm)	2.70	3.60	4.70	5.60	6.30	----

FAQ

The Important Question: How Many Meters of the well deep can be used in?

A: Common screen pipes can be used in wells with a depth of 200-300 meters.

Large wire can also be customized for 650m deep well.

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.

Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

--------------------------------------------------------------------------------------------------------------
