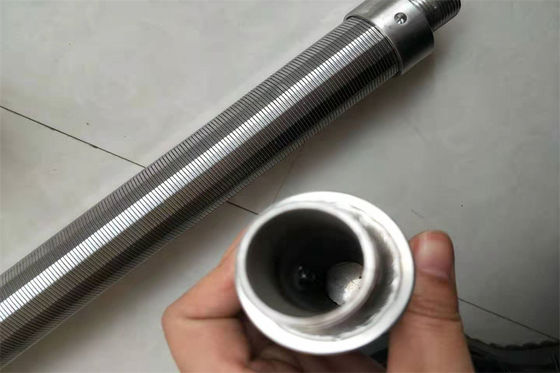

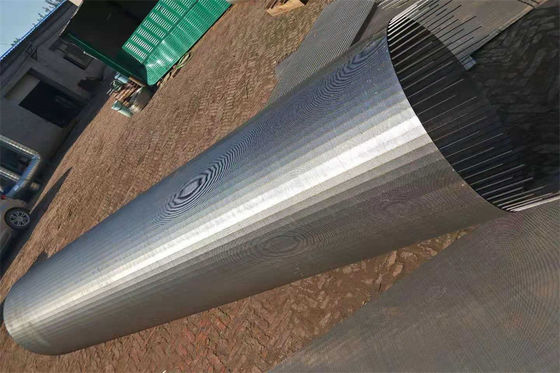

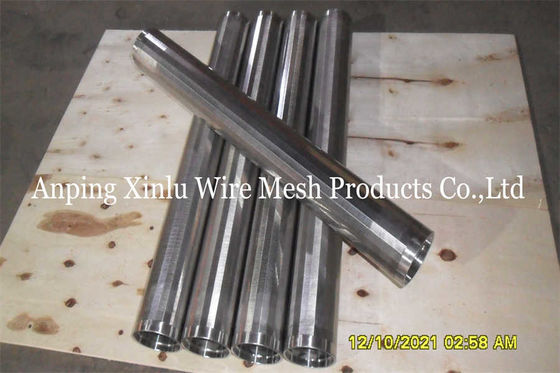

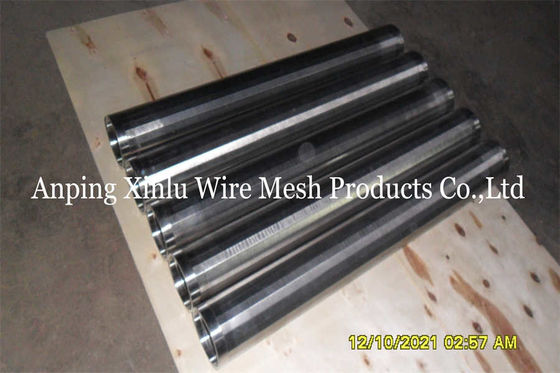

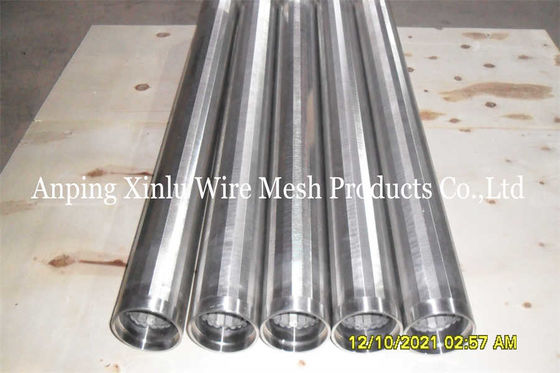

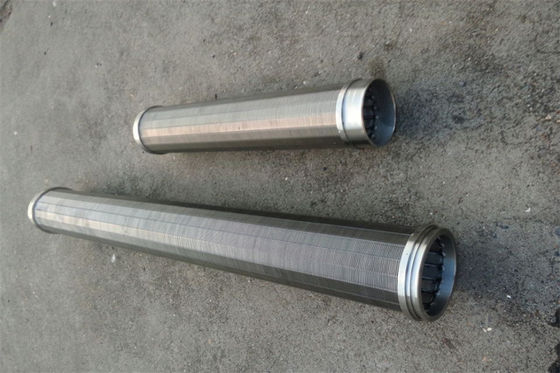

No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen

No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen
No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen

Large Image :  No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Sand Control Screens - 08
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 150pcs / month

No Magnetic Sand Control Screens ERW Johnson Stainless Steel Well Screen

Description
Production Name: No Magnetic Stainless Steel Johnson Wire Sand Control Screen Pipe Use: In Water Well For Sand Control
Filter Element: Johnson Filter Welded Wedge Wire Screen Pipe Fetures: No Magnetic
Joint Type: Flange, Welded Rings, Threaded Thickness: 5-10mm
Surface Treatment: Polishing Tag: Stainless Steel Wedge Wire Screen Pipe Johnson Filter Wedge Wire Screen Pipe Welded Wedge Wire Screen Pipe
High Light:

No Magnetic Sand Control Screens

,

ERW Sand Control Screens

,

Johnson Stainless Steel Well Screen

No Magnetic Stainless Steel Johnson Wire Sand Control Screen Pipe




Product Quick Details:

Product: stainless steel Johnson Sand Control Screen
Material: SS304, SS316, SS316L or as your need
Length/Width: As your need
Johnson well screen slot size: 20μm or more than 20μm
Thickness: Customized on demand
Welding: ERW
Filter form: Surface filtration



Stainless steel Johnson Sand Control screen is composed of V-shaped stainless steel wire and stainless steel support bar. The smooth surface of the filter element is a filter surface, and the gap is a strip, which belongs to the form of surface filtration.



As a variety of automatic filters (such as automatic backwashing, scraper self-cleaning, scraper self-cleaning, sucking self-cleaning filter) filter elements are widely used in various industries of fluid filtration and separation.



Johnson Sand Control Screen Features
In the past, the metal screen woven by metal wire was widely used in the industry. Because of the large contact area between solid particles (catalysts, molecular sieves, and various filters) and wire mesh, particles are easily blocked and stuck in square holes of wire mesh, resulting in increased pressure drop, which makes the device unable to operate, maintenance is also more difficult.



The Johnson wire Sand Control screen has only two contact points with solid particles, so it is not easy to block and jam.



Therefore, compared with other types of wire mesh filters, Johnson screen filter has obvious advantages in filtration and separation. It is not easy to plug, easy to clean, low-pressure drop and other characteristics make it more and more popular.



Advantages of Johnson Sand Control Screen


(1) The opening range is large and the opening rate is high.
(2) Each intersection of the johnson vee wire and the support rod is welded, so the accuracy is high and the gap is accurate.
(3) There are only two points of contact between the continuous gap and the solid particles, which is not easy to plug.
(4) The surface is smooth, the catalyst wears less, the particles are not easy to crush, and the surface roughness of the sieve bar can be as low as 6.3 um.
(5) The sieve mesh with Johnson wedge wire screen wire and connecting rod of different gap sizes and specifications has good strength. If the operating conditions are harsh and the load is large, the strengthening material and connecting rod with large cross section can be selected, and the tensile force of each solder joint can reach 2000-3000N.
(6) Long service life, easy installation, lightweight, more economical.



Johnson V Wire Sand Control Filter Screen Pipe Data reference table:



sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tenslile
strength
collapse
Strength

wrap wire
vee-shaped wire

(Width x height:mm)

support rod
Round wire (mm)
3-1/2 88.9 1 2.9 >22 10.2 2.3 x 3.5 3.0MMx22
4-1/2 114.3 1 2.9 >28 11.5 2.3 x 3.5 3.0MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 1 5.8 >33 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0 x 6.0 5.OMM×32
8-5/8 219.1 1 5.8 >34 21.9 2.3 x 3.5 3.8MMx48
8-5/8 219.1 1 5.8 >50 38.2 3.0 x 4.6 4.0MMx48
8-5/8 219.1 1 5.8 >60 46 3.05 x 6.35 5.0MMx48
10-3/4 273.1 0.75 5.8 >50 9 2.5 x 4 .0 3.8MM×55
10-3/4 273.1 1 5.8 >60 39.5 3.0 x 4.6 4.5MMx55
10-3/4 273.1 1 5.8 >100 48 3.2 x 6.0 5.0MM×55
12-3/4 323.9 1 5.8 >120 37.2 3.0 x 6.0 4.0MMx56
14 355.6 1 2.9 >80 37.8 3.0 x 5.0 4.0MMx59
16 426 1 2.9 >80 37.5 3.0 x 5.0 4.OMM×64



PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----



FAQ





The Important Question: How Many Meters of the well deep can be used in?

A:  Common screen pipes can be used in wells with a depth of 200-300 meters.

Large wire can also be customized for 650m deep well.



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

--------------------------------------------------------------------------------------------------------------
