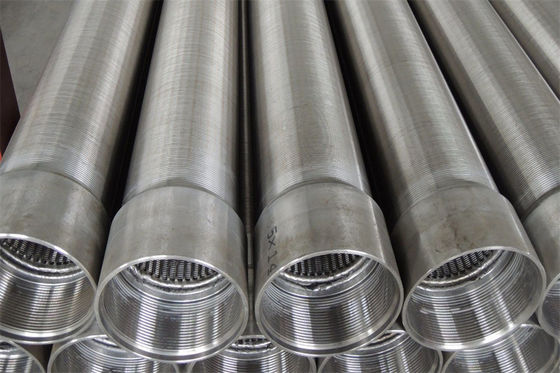

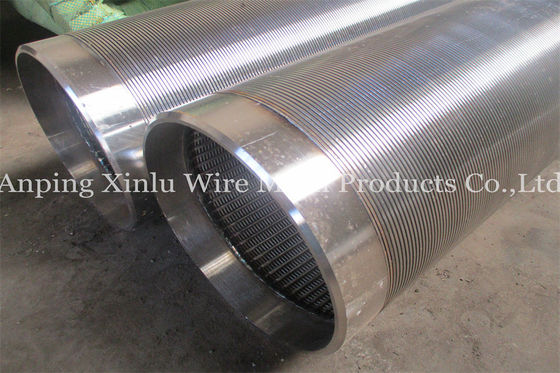

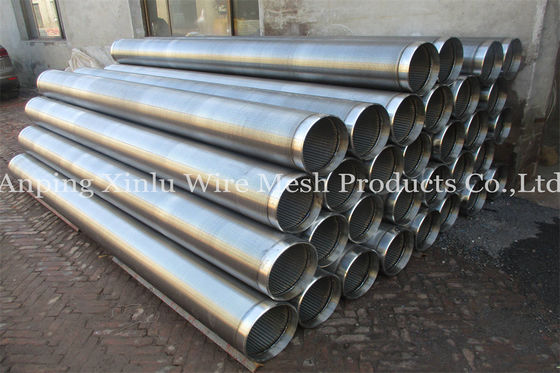

Wedge Wire Welded Sand Control Well Screen Piping Used In Water Well Drilling
Wedge Wire Sand Control Screen Piping Product Quick Details:
Product: stainless steel wedge wire sand control screen
Material: Stainless steel 304, 304L, 316, 316L or as your need
Length/Width: Customized on demand
Minimum slot size: 20μm
Thickness: Customized on demand
Welding: ERW
Filter form: Surface filtration
Type: Positive and Anti Roll

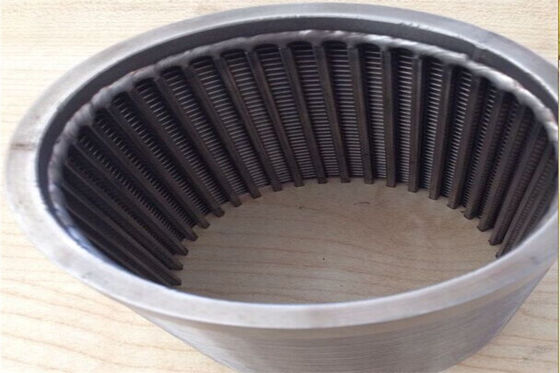

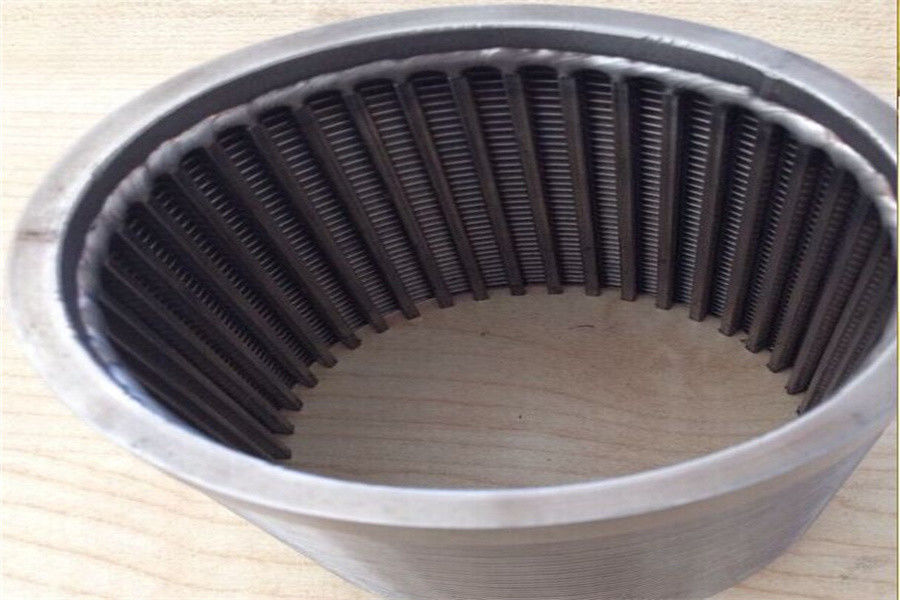

Wedge Wire Sand Control Screen is welded by a stainless steel wedge wire and a support rod sometimes called it johnson wedge wire screens. Widely used in the filtration and separation industry due to its unique advantages.
Our products are well known in the wedge wire industries, In addition to stable quality, control of slot size tolerance is ahead of the industry. With its excellent performance, it is also widely used in the environmental protection industry.
Xinlu Wedge Wire Sand Control Screens Advantage
The advantage of the Wedge Wire screen
High temperature and corrosion resistance.Can be used in special environments.
High open area.
Structural advantage,non-clogging.It has the V-shaped slot formed, so contrast stainless steel woven mesh has an inherent advantage.
Good filtration performance.
Contrast metal woven mesh structure is more sturdy.
wedge wire sand control screen open area
The opening ratio is a very important parameter for the user, the calculation formula of the wedge screen opening ratio (F) is as follows:
F: Opening ratio
x: width of the wedge wire
n: Slot size
F=n/(n+a)x100%
The high opening ratio is a big advantage of wedge wire screening.
Xinlu Wedge Wire Screens Range:
Wedge wire screen panels
Wedge wire filter
Wedge wire strainer
Wedge wire grate
Filter nozzle
Drum screen
Among them, we are the largest wedge wire filter elements manufacturer in North China.
Wedge Wier Screen Application:
Its application is very extensive, and many places are gradually replacing the woven mesh.
1 Water treatment
2 Mine
3 Food and drinks
4 Chemical industry
5 Oil exploitation
6. Sugar production
It is also a material for making the drum screen(for Manure separator).
Wedge Wire Screen VS Stainless Steel Woven Wire Mesh
Many customers ask me which one is better, How to choose?
They all have their own advantages and can only be chosen according to your specific requirements. The advantage of the wedge wire screen is that it is not blocked, the s
tructure is firm, Low-pressure drop and it is easy to clean. In these respects, its performance is significantly better than the woven mesh.
Stainless steel woven wire mesh is the most common product of metal filter element, according to the processing technology, it can be divided into two categories:
Pleated filter element
Sintered filter element
Its advantage is the large filtration area, compared with the former, it has higher filtering accuracy.
At this point, you need a woven mesh filter. If your user environment is very bad, it is recommended to use the former.
If you really can't judge which product to choose, please send us your details, we have rich production experience in both products, we will give you a bit of professional advice.
Sand Control Screen V wire / Wedge Wire Data reference table:
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
FAQ
1. Are you a wedge wire screen manufacturers or trader?
We are a manufacturer, it's our main product, has extensive experience in the production of this product, We upgraded our production equipment five years ago, we are far ahead of the market in terms of craftsmanship. At the same time, customers are welcome to visit the factory.
2. Packing?
a. With a plastic film winding and then packed in wooden cases
b. According to your requirement.
3. Min order?
Any quantity is ok.
A sufficient amount of quantity you will get a surprising price.
4. I don't know what specifications I need.
You just need to tell us where you want to use it, we will give you the most professional advice,and send you a sample test.
5. After-sale service.
If you are working with us for the first time, you may have questions about product quality, when buying in large quantities, you will definitely worry about product quality problems. Don't worry, we have a sound quality management system, and if there is a quality problem with the goods you receive, you only need to provide a batch of the product, we will exchange the goods for you in the first time.
