Product Details:
|
| Production Name: | Stainless Steel Water & Oil Well Sand Control Screen Tube | DN: | 76mm |
|---|---|---|---|
| Feature: | Anti Corrosion | End Connection: | Bevel Welded Rings |
| V Wire: | 2.2*3.5mm Vee-Wire | Flow Rate: | 1.0mm |
| Usage: | Oil Pump. Moter Filter | Product Tags: | 76mm Wire Wrapped Pipe , 3 Corrosion Resistance Wire Wrapped Pipe ,corrosion Resistance Well Pipe |
| High Light: | Anti Corrosion Sand Control Screens,AISI 316 Sand Control Screens,76mm Oil Well Screen |
||

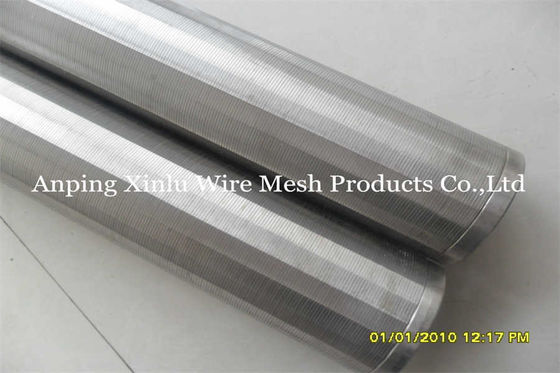

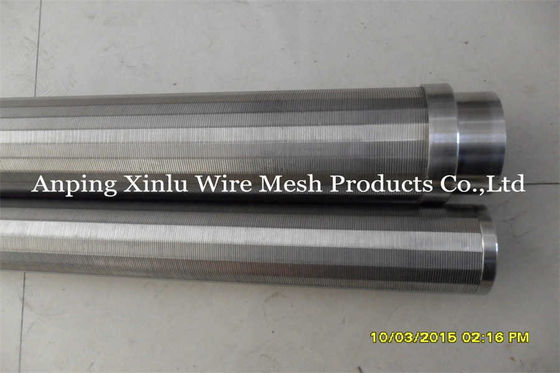

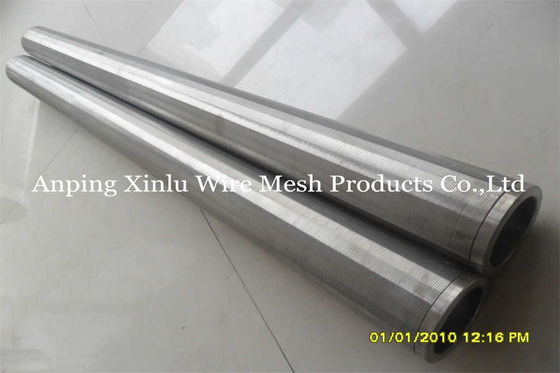

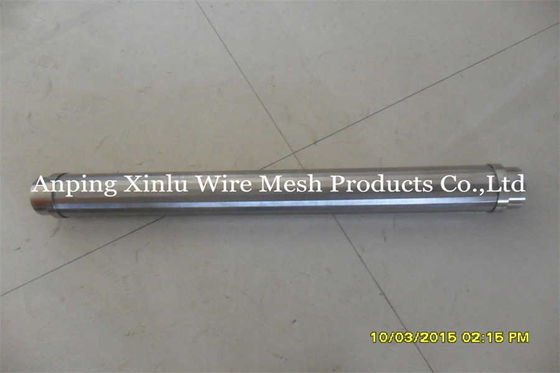

Stainless Steel 76mm Water & Oil Well Sand Control Screen Tube
Products Quickly Details:
1. Product Name: Johnson V Wire-Wound Strainer Sand Control Screen Pipe, v wire water well screen, wire wrapped screen pipe, Johnson specialty screen, spiral screen tube, strainer pipe, rod based continuous slot wedge wire screen, drilling well screen, reversed rolled slot well screens, screen cylinders, continuous-slot well screen, Well screen, water filter, filtration element
2. Material : Low carton, mild steel wire, iron wire, low carton galvanized steel (LCG), stainless steel (201, 205, 304,316, 316L, 321 etc.), Duplex stainless steel
3. Diameter: DN 20-1000mm (1-40inch)
4. Slot size: 0.05mm,0.08mm,0.1mm,0.15mm,0.20mm,0.25mm,0.30mm,0.50mm,0.75mm,1.0mm... 6.00mm also achieved upon request.
5. Length: 500mm,1000mm,1500mm,2000mm,..... ,6000mm.

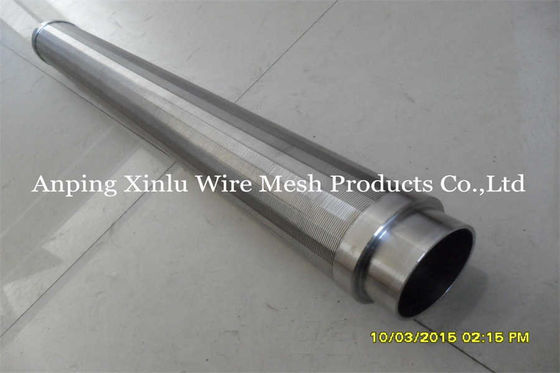

6. End connection: Plain beveled ends for butt welding (welded ring)or threaded male &female coupling (API STC, PT NPT, BSP, G, ).(spiral), Flange, Closed up
What Is a Stainless Steel Water & Gas Sand Control Well Screen?
There is a lot of sand, gravel, and other substances in the aquifer of the well, these materials will wear equipment and well pumps, causing expensive losses. A water well screen is needed to remove these impurities.

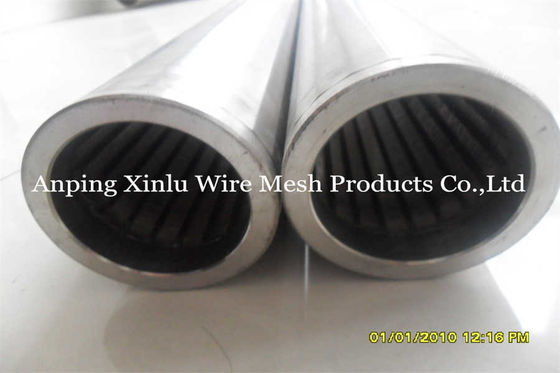

Stainless steel v-wire (wire wrap) screen pipe is the main screen pipe type used in the water well industry, it is welded together by v-shaped wire and support rod through advanced circular resistance welding. This kind of screen tube has the characteristics of firm structure, large opening area, corrosion resistance, nonblocking, and no maintenance.
Specifications: Stainless Steel Water & Oil Well Sand Control Screen Tube
Material: 304, 316, 316L, 321, 904L, 2205, 2507, C276…(or as your need)
Slot size selection: 0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm… (or as your need)
OD: 1” – 34”
Length: Up to 6000mm
Depth & height: As your need.
Open area: Up to 60% (high flow, low-pressure drop)
Installation location: Aquifer
Application: Municipal water source well, Domestic well, Agricultural water well, Groundwater, Industrial water well.
Packaging & Delivery: Stainless Steel Water & Oil Well Sand Control Screen Tube
With plastic film or buble package with weave bag, then packed in wooden boxes or container
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
According to your requirment.
Stainless Steel Water & Oil Well Sand Control Screen Tube Data reference table:
| sizes (inch) |
OD (mm) |
slot (mm) |
Length (m) |
Tenslile strength |
collapse Strength |
wrap wire (Width x height:mm) |
support rod Round wire (mm) |
| 3-1/2 | 88.9 | 1 | 2.9 | >22 | 10.2 | 2.3 x 3.5 | 3.0MMx22 |
| 4-1/2 | 114.3 | 1 | 2.9 | >28 | 11.5 | 2.3 x 3.5 | 3.0MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.0 x 6.0 | 5.OMM×32 |
| 8-5/8 | 219.1 | 1 | 5.8 | >34 | 21.9 | 2.3 x 3.5 | 3.8MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >50 | 38.2 | 3.0 x 4.6 | 4.0MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >60 | 46 | 3.05 x 6.35 | 5.0MMx48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 9 | 2.5 x 4 .0 | 3.8MM×55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >60 | 39.5 | 3.0 x 4.6 | 4.5MMx55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >100 | 48 | 3.2 x 6.0 | 5.0MM×55 |
| 12-3/4 | 323.9 | 1 | 5.8 | >120 | 37.2 | 3.0 x 6.0 | 4.0MMx56 |
| 14 | 355.6 | 1 | 2.9 | >80 | 37.8 | 3.0 x 5.0 | 4.0MMx59 |
| 16 | 426 | 1 | 2.9 | >80 | 37.5 | 3.0 x 5.0 | 4.OMM×64 |
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND |
|||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
FAQ
The Important Question: How Many Meters of the well deep can be used in?
A: Common screen pipes can be used in wells with a depth of 200-300 meters.
Large wire can also be customized for 650m deep well.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
