Wedge wire arc sieve bend filter screen for waste water equipment
Category: Sieve Bend Screen
Material: stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties: sieve bend screen
Application: water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical
Details of Wedge wire arc sieve bend screen for waste water equipment
The dewatering capacity of a Wedge wire arch sieve bend screen is primarily influenced by the screen width, the slot opening, and the wire size (width). The chart below shows typical dewatering capacities in US gallons per minute (GPM) per foot of screen width. Actual capacity varies depending on the feed content and desired efficiency.
Screening efficiency and solids capacity are directly related to the length (arc length). Longer arc lengths should be considered for feed containing a high percentage of solids.
The dewatering capacity of Wedge wire arc sieve bend screen such as the sieve bend can be greatly increased by tilting the wedge wires. The wedge wires are tilted 2 to 7 degrees depending on the wire size and slot opening
Feature of Wedge wire arc sieve bend screen for waste water equipment
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.
Application of Wedge wire arc sieve bend screen for waste water equipment
Wedge wire arch sieve bend screens are manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Wedge wire arch sieve bend screen are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.
Customizable of Wedge wire arc sieve bend screen for waste water equipment
According to your requirements, we can process and manufacture various shapes of sieve plates.

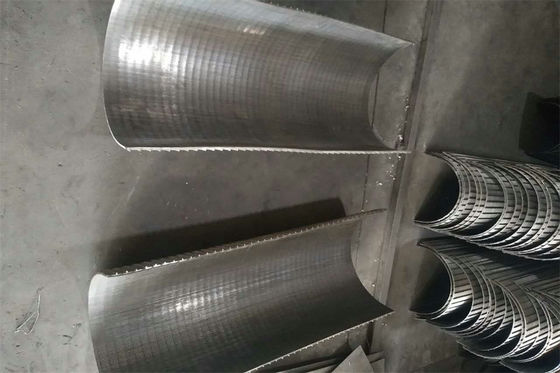

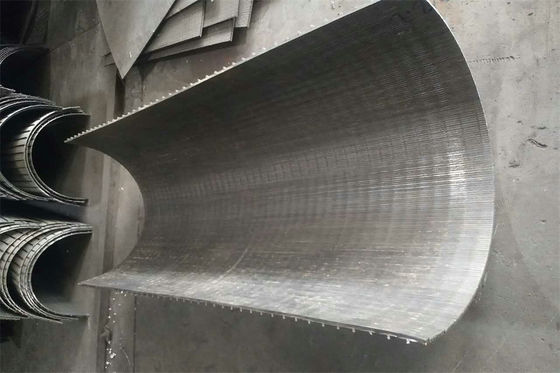

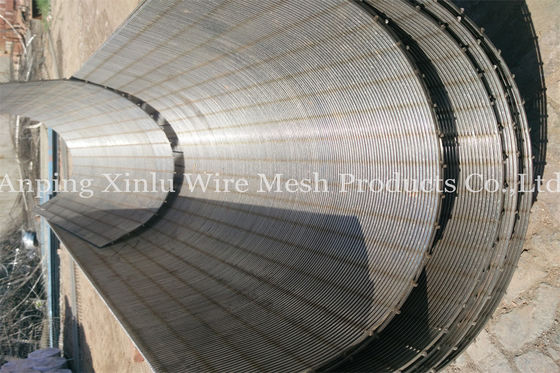

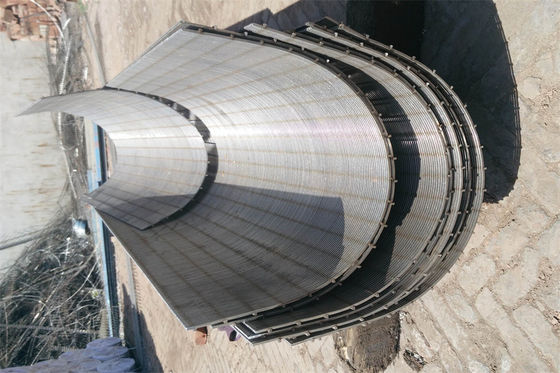

Wedge Wire Sieve Bend Panelconsists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.
Slot: form 0.1mm, tolerances: ± 0.05mm.
Maximum size: 3000mm x 4000mm.
Material: Low Carbon, Low Carbon Galvanized steel (LCG), Stainless Steel ( 304, 304L, 316, 316L, etc).
Various applications including:
Food processing
Pulp and paper processing
Rubbish removal from water
Water intakes
Coal preparation
Gold recovery

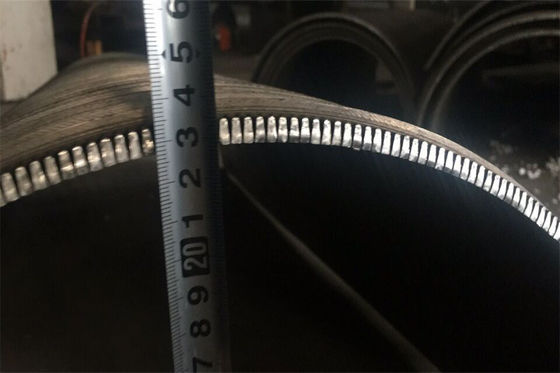

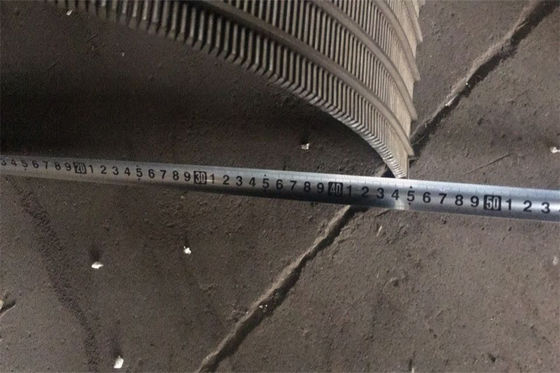

Wedge Wire Specification:
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
---------------------------------------------------------------------------------------------------------------
Our factory Xinlu Wire Mesh product co., Ltd located in Anping country, Hebei Province, China.
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
