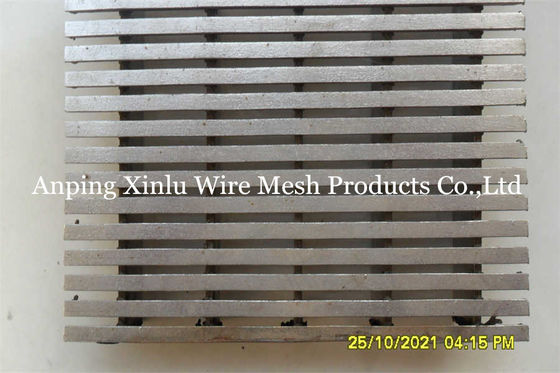

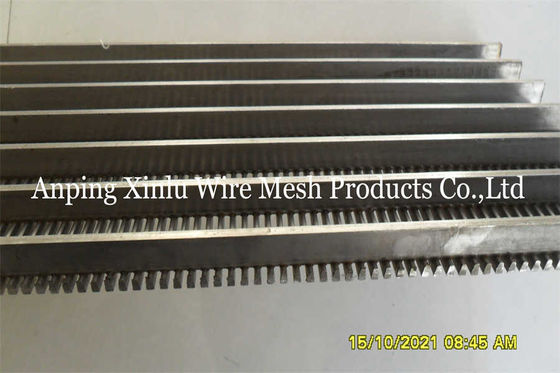

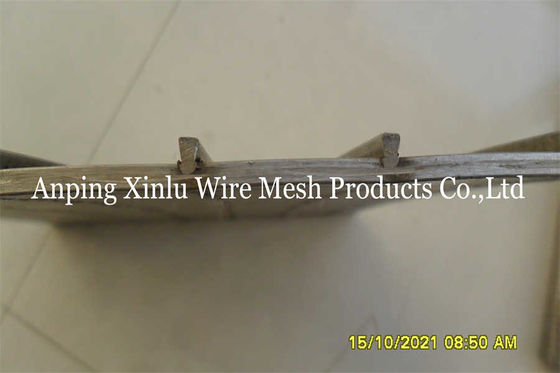

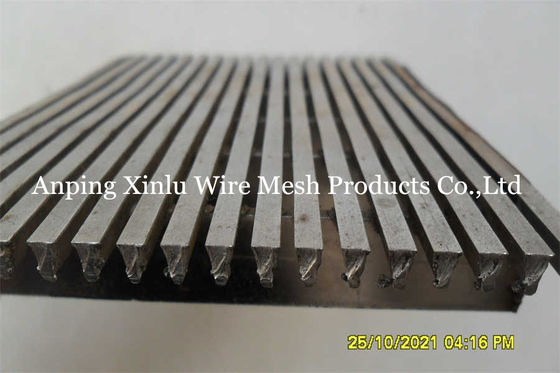

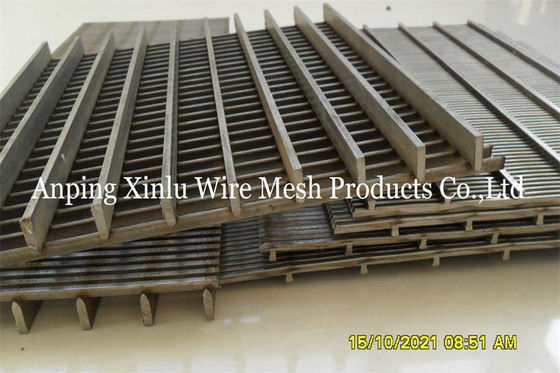

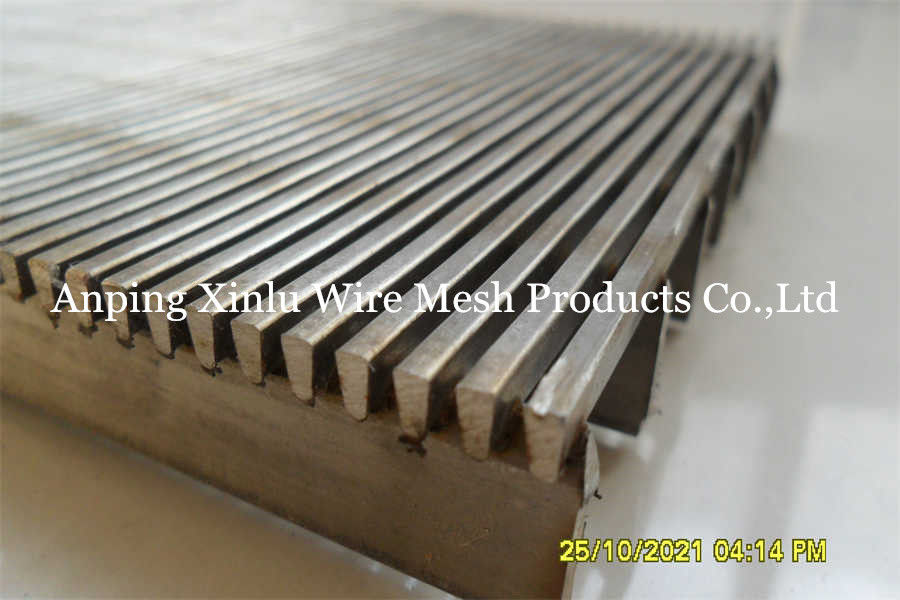

Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels

Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels
Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels

Large Image :  Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number: XL - Wedge Wire Screen Panel - 012
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 80-160usd/m2, Negotiable according to the specification
Packaging Details: wood case, pallet
Delivery Time: 6-8days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300m2/month

Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels

Description
Product Name: Wedge Wire Flat V Wire Panel With Support Bar For Static Screens Material: Stainless Steel 304L, 304 316L Wedge Wire 316
Profile Wire Size: 1.8x2.5mm, 2.2x3.5mm, 3x4.6mm, 3x5mm,customized Thickness: 3-12mm, Customized
Usage: Liquid Filter, Solid Filter, Welded Wedge Wire Candle Filter, Kinds Filtration Industry, Water Filed Or Oil Filed Type: Filter Elements, Filter Cylinder, Filter Disc, Flat Screen, Wire Wrapped Well Screen Cylinders / Wedge Wire Panels
Width: Customize Size, 300-3000mm Tag: Wedge Wire Screen Panel, Wedge V Wire Screen Panel, Flat Screen Plate, Waste Water Treatmen, Johson Screen Plate, Johnson Filter Panelt,
High Light:

Static V Wire Screens

,

SS 316L V Wire Screens

,

SS 304 Wire Welded Panels



Wedge Wire Flat V Wire Panel  With Support Bar for Static Screens



Produce Name: wire wrapped panel, Johnson Screen plate, flat v wire panel, flat wedge wire panel with frame, Johnson screen flat panel, flat panel screens, sieve bend, arc screen, slot wire screen plate, stainless steel wire sieve, sieving wire mesh, wide slit screens, vibrating sieve screen





Welded wedge wire screen panels Static Screens

Welded wedge wire screen panels Static Screens is produced through the method of electric resistance welding: wires with special profile are welded to supporting wires at 90 degrees angle. As a result of modern technology of welding, different wires may be used, various slots in one wedge wire screen, as well as different distances between supporting wires can be created.


Slot: form 0.1mm, tolerances: ± 0.05mm.
Maximum size: 3000mm x 4000mm.
Material: Low Carbon, Low Carbon Galvanized steel (LCG), Stainless Steel ( 304, 304L, 316, 316L, etc).


Welded wedge wire screen panels can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.





Applications: Welded wedge wire screen panels
Quarry screen, iron and coal mining, oil industry and slop vibration sifting.
Filtering tank, water treatment equipment, padding under the filtering.

Customizable:
Welded wedge wire screen panels
According to your requirements, we can process and manufacture various shapes of sieve plates.





PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----







FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels 0Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels 1Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels 2Static V Wire Screens SS 304 316L Wedge Wire Wire Welded Panels 3



---------------------------------------------------------------------------------------------------------------



Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
