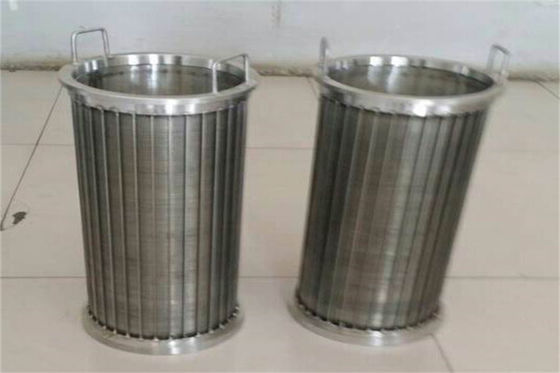

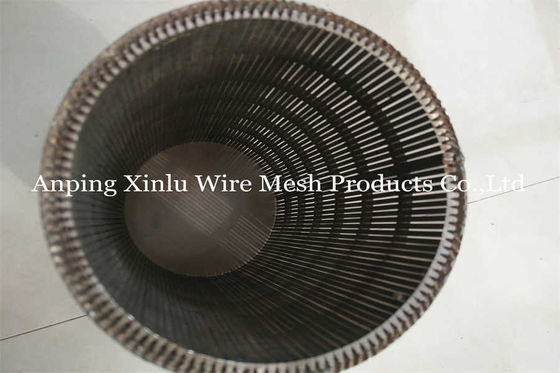

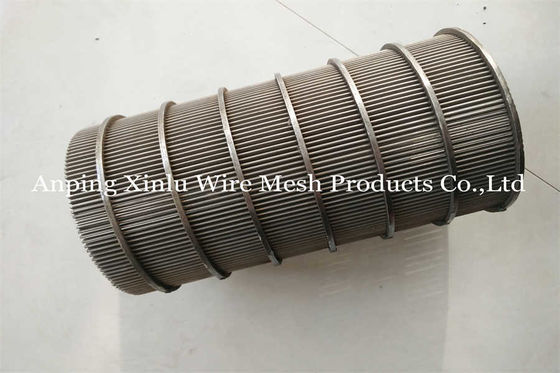

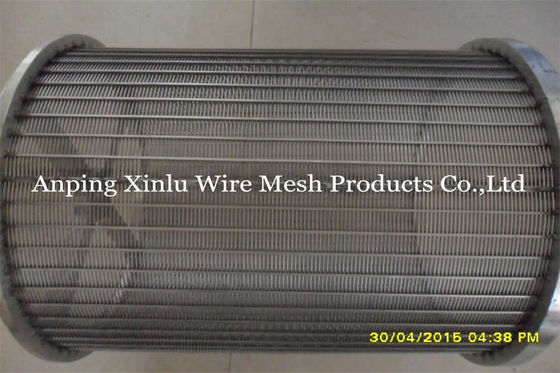

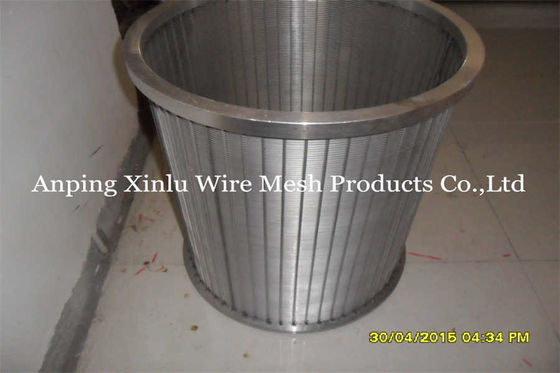

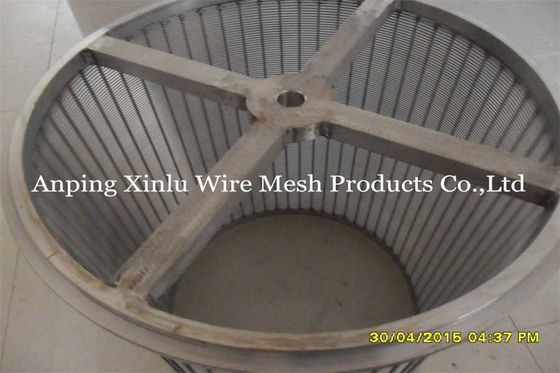

SS 316L Wedge Wire Sieve Filters / Rotating Drum Screen for separator
Product: Rotary Drum screen
Material: SS304, SS316
OD: Min 68mm
ID: 176mm, 200mm, 230mm, 255mm. According to request
Length: 600mm, 602mm, According to request
Slot Direction: Radial Direction, Axial Direction
Slot Range: 0.2 – 1 mm
Rotary drum screen is the core component of the manure separator , made of wedge wire screen, Its design directly affects the efficiency and service life of the separator.
The product specifications required to handle different manure are different. The most critical parameter is the slot size, users need to choose the right product according to their actual situation.
Rotary drum screen for separator Advantage
1. V-shaped wire structure, not easy to block
2. Easy to clean
3. Sturdy construction
4. Easy to install and maintain
Wedge wire screen is also our main product, we have Five wedge wire screen production equipment, which can process various sizes of drum screens. We have a huge advantage in the design, manufacturing and after-sales service of the drum screen.
Wire Size Of Rotary Drum Screen Basket
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
