Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe

Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe
Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe

Large Image :  Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO, Quality Inspection Report
Model Number: XL - Continuous Slot Screen - 020
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable

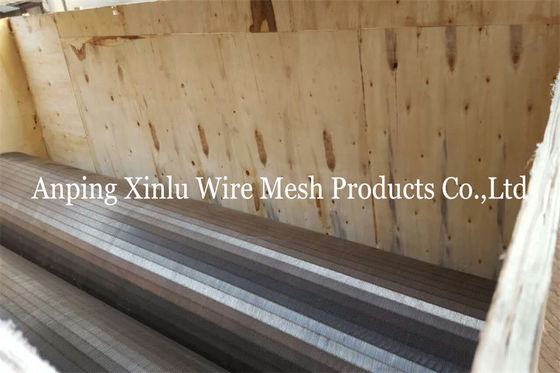

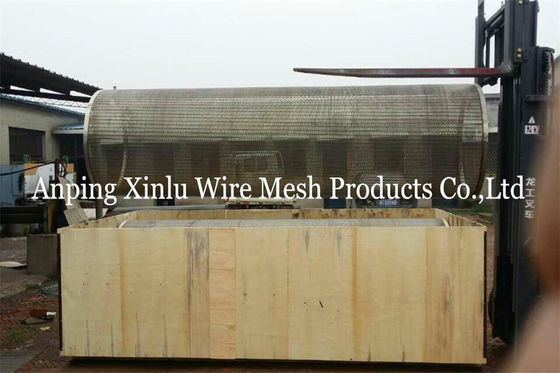

Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 150pcs / month

Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe

Description
Product: Anti Corrosion Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe Filter Type: Pump Filter, Motor Filter, Changeable Filter Element, Johnson Wire Screens, Johnson Well Screen,johnson Screen Pipe, Johnson Screen Tube, Johnson Filter Screen, Rotary Drum Screen, Wedge Wire Cylindrical Screen, Filter Candle, Oil Well Screen Pipe, Changea
Feature: Non Clogged, Non-clogging, Smooth Surface,Easy Installation, Long Using Life V Wire: 2.2x3.5mm, 2.5x4mm, 3x4.6mm
Slot: 0.3mm Material: Ss304
Diameter: 350mm Used For: Water Well, Oil Well, Pump Filter, Groundwater
High Light:

Vee Wire Continuous Slot Strainer Screen

,

SS304 Continuous Slot Strainer Screen

,

0.3mm Continuous Slot Screen

Anti Corrosion Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe



water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens



304 Grade Continuous Slot Screen Vee Wire Screen 5800mm Length





Continuous Slot Screen Product Description:



Jonson Vee wire screen is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape.



Continuous Slot Screen Specification:



Material Stainless steel
Grade 304
O.D 350 mm
Size 14 "
Slot size 0.5 mm
Length 5.8 m
End connection Welded rings
Wire size 118 #
Support rod 140 #
Wire shape V shape



Continuous Slot Screen Regular Specifications:



SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59



Characteristic:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



OEM service:



Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.



Custom range



Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.



Application:



Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



---------------------------------------------------------------------------------------------------------------



Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.

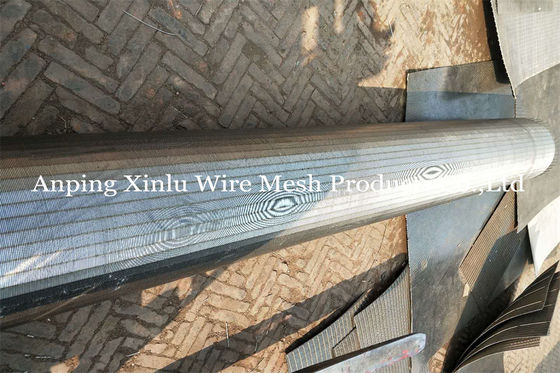

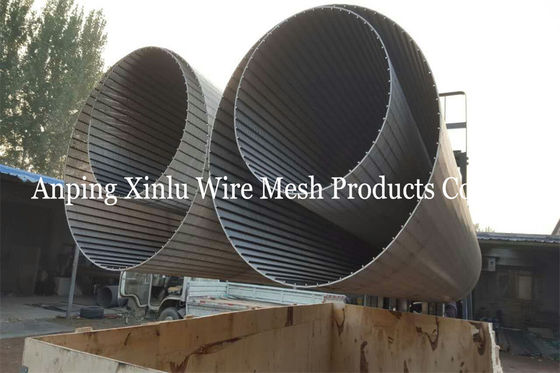

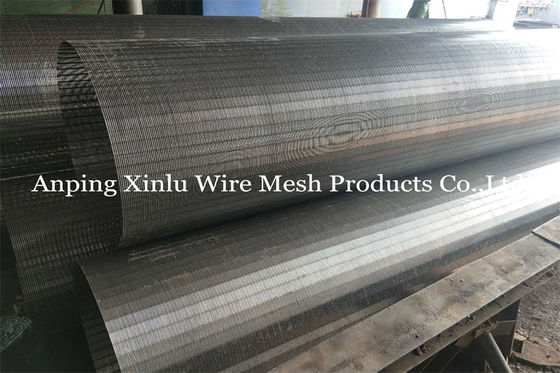

Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe 0Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe 1Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe 2

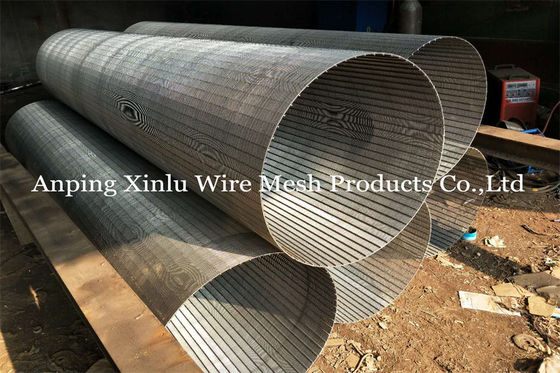

Stainless Steel 304 Vee Wire Continuous Slot Strainer Screen Filter Pipe 3
