Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots

Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots
Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots

Large Image :  Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Sand Control Screens - 016
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 150pcs / month

Water Well Sand Control Screens 6-5/8" Johnson Wire Screen Tube With 30 Slots

Description
Production Name: Water Well Sand Control 6-5/8" Johnson Wire Screen Tube With 30 Slots Advantages: No Magnetic, Non-clogging, Anti-corrosion, Anti-rust, High Temperature Resistance
Diameter: 114mm, 168mm, 219mm, 273mm, 325mm, 426mm,etc Material: AISI 304
Weave Style: V Wire Wrapped End Connection: Welded Rings, Flange, Threaded
Filter Rating: 50-2000micron, Upto 80% Tag: 30 Slots Johnson Wire Screen, 6-5/8" Johnson Wire Screen, 30 Slots Sand Control Screens
High Light:

Water Well Sand Control Screens

,

30 Slots Sand Control Screens

,

6-5/8" Sand Control Screens

Water Well Sand Control 6-5/8" Johnson Wire Screen Tube With 30 Slots





Products Quickly Details:

1. Product Name: Johnson V Wire-Wound Strainer Sand Control Screen Pipe, v wire water well screen, wire wrapped screen pipe, Johnson specialty screen, spiral screen tube, strainer pipe, rod based continuous slot wedge wire screen, drilling well screen, reversed rolled slot well screens, screen cylinders, continuous-slot well screen, Well screen, water filter, filtration element


2. Material : Low carton, mild steel wire, iron wire, low carton galvanized steel (LCG), stainless steel (201, 205, 304,316, 316L, 321 etc.), Duplex stainless steel



3. Diameter: DN 20-1000mm (1-40inch)



4. Slot size: 0.05mm,0.08mm,0.1mm,0.15mm,0.20mm,0.25mm,0.30mm,0.50mm,0.75mm,1.0mm... 6.00mm also achieved upon request.



5. Length: 500mm,1000mm,1500mm,2000mm,..... ,6000mm.



6. End connection: Plain beveled ends for butt welding (welded ring)or threaded male &female coupling (API STC, PT NPT, BSP, G, ).(spiral)Flange, Closed up



7. Surface Electrolytic polishing, Pickling and polishing or Galvanized




Johnson Water Well Sand Control Screen Tube Introduction​:



Xinlu Water Well Sand Control Screen Tube also be named Water well screen,Johnson screen,Wedge wire screen,Vee-Wire screen pipe,Rod based continuous slot Vee-wire screen tube,Wound screen,Water filter, Screen cylinders, slot wire screen tube , well screen , strainer screens,

oil screen tube etc

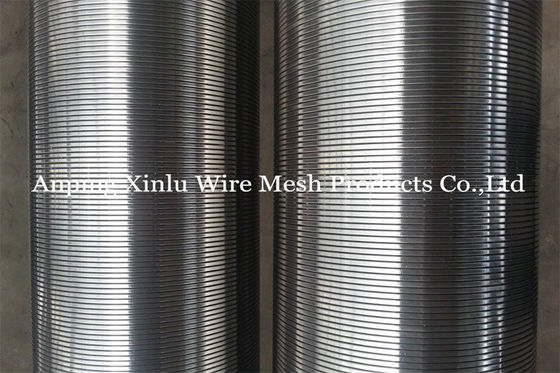

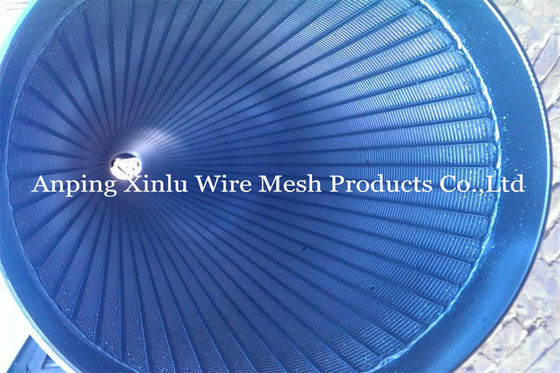

Johnson Water Well Sand Control Screen Tube is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.

Accurate slot and high filtration precision.



Johnson Water Well Sand Control Screen Tube Features:

1. Non-blocking: the cross-section of screen surface wire is triangular.

2. High strength: because this component uses stainless steel wire wound welding structure, so it has a high strength.

3. Large flow: this screen has relatively small resistance, in the case of the same output, the number of water filter element can be reduced accordingly.

4. The adaptability of temperature change is good: obviously compared with ordinary plastic filter element, the temperature range of stainless steel winding screen is much wider than that of plastic filter element.

5. Clearance adjustable: different users, the use of different filtration equipment and filtration media, the requirements of the clearance of the internal winding wire screen are different. The gap can be made 20 microns.

6. Corrosion resistance: for neutral water, acid water, alkaline water, regenerating agent caustic soda, hydrochloric acid, sulfuric acid, salt, etc., as long as the reasonable selection of these materials, you can economically and safely operate all kinds of filtration equipment.

Connection mode: threaded connection, flange connection.



Johnson Water Well Sand Control Screen Tube Basic Parameters:

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

End connection
2", 3", 4", 5", 6",8", 9", 10", 12", 14", 16" 2900,5800 in usual 0.5, 0.63, 0.75,1.0 Welded rings, male and female threaded coupling, flange, closed up etc.
Explanation Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from diameter 29mm- 1300mm, the length from the 100mm-6000mm series screen pipe



Material SS304, SS201, SS316L, SS321, Duplex 2205, 2507, Hastelloy, 904L
OD Range 29mm-1300mm
Slot Range 25 micron to 8000 micron (Tolerance:+-5 micron)
Length Range Up to 6000 mm
End connection Flange; Welded rings; Male/female threaded; Closed up, Open ends.



Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.



High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.



High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.



Johnson Water Well Sand Control Screen Tube Advantages:

1: Non-clogging capabilities

2: Self supporting

3: High abreaction resistance

4: Large open area

5: Better sand filtration

6: Energy saving

7: Lowest possible cost

8: Long using life

9: Maximum flow capacity



Packaging & Delivery: Johnson Water Well Sand Control Screen Tube

With plastic film or buble package with weave bag, then packed in wooden boxes or container

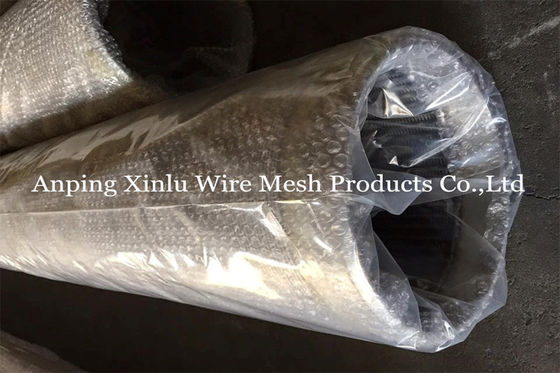

Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet

According to your requirment.





Johnson Water Well Sand Control Screen Tube Data reference table:



sizes
(inch)
OD
(mm)
slot
(mm)
Length
(m)
Tenslile
strength
collapse
Strength

wrap wire
vee-shaped wire

(Width x height:mm)

support rod
Round wire (mm)
3-1/2 88.9 1 2.9 >22 10.2 2.3 x 3.5 3.0MMx22
4-1/2 114.3 1 2.9 >28 11.5 2.3 x 3.5 3.0MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 1 5.8 >33 12.8 2.3 x 3.5 3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0 x 6.0 5.OMM×32
8-5/8 219.1 1 5.8 >34 21.9 2.3 x 3.5 3.8MMx48
8-5/8 219.1 1 5.8 >50 38.2 3.0 x 4.6 4.0MMx48
8-5/8 219.1 1 5.8 >60 46 3.05 x 6.35 5.0MMx48
10-3/4 273.1 0.75 5.8 >50 9 2.5 x 4 .0 3.8MM×55
10-3/4 273.1 1 5.8 >60 39.5 3.0 x 4.6 4.5MMx55
10-3/4 273.1 1 5.8 >100 48 3.2 x 6.0 5.0MM×55
12-3/4 323.9 1 5.8 >120 37.2 3.0 x 6.0 4.0MMx56
14 355.6 1 2.9 >80 37.8 3.0 x 5.0 4.0MMx59
16 426 1 2.9 >80 37.5 3.0 x 5.0 4.OMM×64



PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----



FAQ





The Important Question: How Many Meters of the well deep can be used in?

A:  Common screen pipes can be used in wells with a depth of 200-300 meters.

Large wire can also be customized for 650m deep well.



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

---------------------------------------------------------------------------------------------------------------
