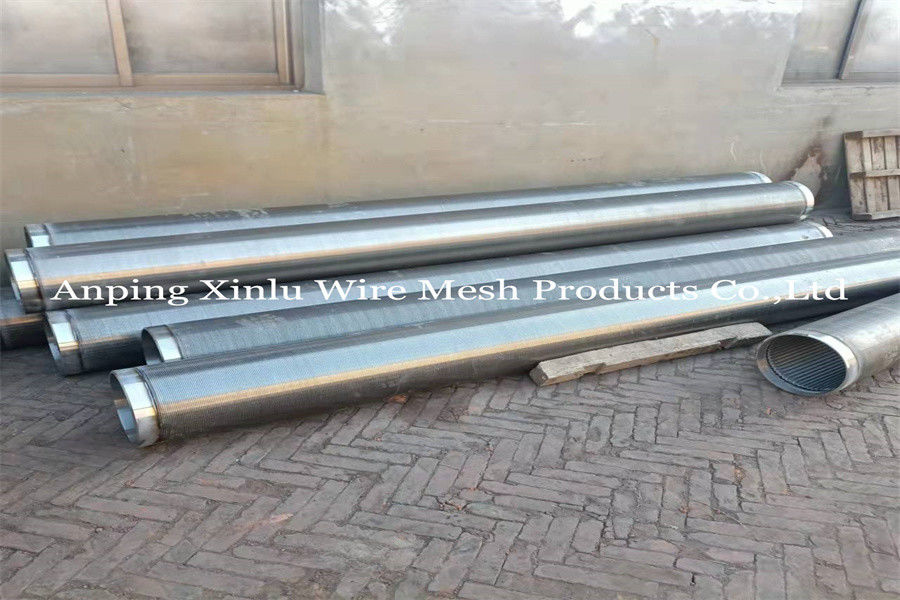

Diameter 300mm Stainless Steel 304L Sand Control Screens For Water Treatment
Stainless Steel 304L Sand Control Screens , Deep Well Wound Screen 35kg / Meter
Sand Control Screens Product Description:

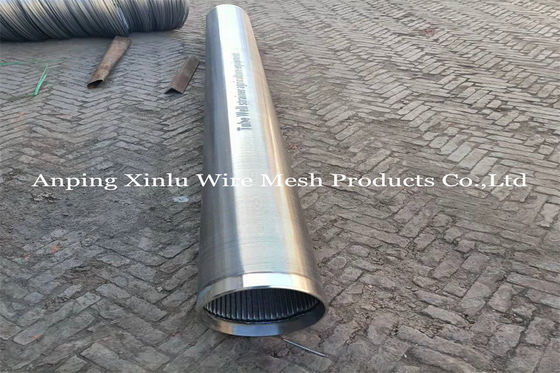

Stainless Steel 304L Deep Well Wound Screen is made of the continuous slot.
It shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.
Each junction of wire/rod contact shall be resistance welded.
The wrapped wire is Vee-shaped, and the support rod is Round shape.
Filter Type: from outside to inside.
Sand Control Screens Characteristic:
1. Deep Well Wound Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Application:
· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction
Packaging & Delivery: Sand Control Screen Pipe
With plastic film or buble package with weave bag, then packed in wooden boxes or container
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
According to your requirment.
Sand Control Screen Pipe Data reference table:
sizes
(inch) |
OD
(mm) |
slot
(mm) |
Length
(m) |
Tenslile
strength |
collapse
Strength |
wrap wire
vee-shaped wire
(Width x height:mm)
|
support rod
Round wire (mm) |
| 3-1/2 |
88.9 |
1 |
2.9 |
>22 |
10.2 |
2.3 x 3.5 |
3.0MMx22 |
| 4-1/2 |
114.3 |
1 |
2.9 |
>28 |
11.5 |
2.3 x 3.5 |
3.0MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
1 |
5.8 |
>33 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.0 x 6.0 |
5.OMM×32 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>34 |
21.9 |
2.3 x 3.5 |
3.8MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>50 |
38.2 |
3.0 x 4.6 |
4.0MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>60 |
46 |
3.05 x 6.35 |
5.0MMx48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
9 |
2.5 x 4 .0 |
3.8MM×55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>60 |
39.5 |
3.0 x 4.6 |
4.5MMx55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>100 |
48 |
3.2 x 6.0 |
5.0MM×55 |
| 12-3/4 |
323.9 |
1 |
5.8 |
>120 |
37.2 |
3.0 x 6.0 |
4.0MMx56 |
| 14 |
355.6 |
1 |
2.9 |
>80 |
37.8 |
3.0 x 5.0 |
4.0MMx59 |
| 16 |
426 |
1 |
2.9 |
>80 |
37.5 |
3.0 x 5.0 |
4.OMM×64 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
| HEIGHT(mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
Ø2.5--Ø5mm |
| HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
---- |
FAQ
The Important Question: How Many Meters of the well deep can be used in?
A: Common screen pipes can be used in wells with a depth of 200-300 meters.
Large wire can also be customized for 650m deep well.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
