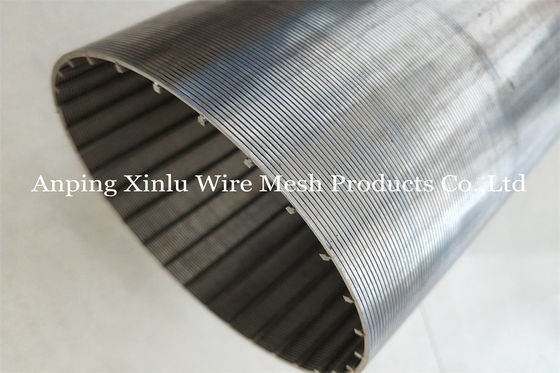

8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control

8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control
8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control 8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control 8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control 8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control 8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control 8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control

Large Image :  8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO, Quality Inspection Report
Model Number: XL - Continuous Slot Screen - 021
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 150pcs / month

8-5/8" SS Johnson Wire Continuous Slot Screen For Water Well Sand Control

Description
Product: 8-5/8" SS Johnson Continuous Slot Wire Screen For Water Well Sand Control Filter Type: Johnson Wire Continuous Slot Screen Pipe, Water Well Screen, Pump Filter, Motor Filter, Changeable Filter Element, Johnson Wire Screens, Johnson Well Screen,johnson Screen Pipe, Johnson Screen Tube, Johnson Filter Screen, Rotary Drum Screen, Wedge Wire Cyl
Feature: Non Clogged, Non-clogging, Smooth Surface,Easy Installation, Long Using Life Surface: Polished
Slot: 0.3mm Diameter: 219mm
Used For: In Water Well For Sand Control,water Well, Oil Well, Pump Filter, Groundwater
High Light:

SS Johnson Wire Continuous Slot Screen

,

slot 0.3mm Continuous Slot Screen





8-5/8" SS Johnson Continuous Slot Wire Screen For Water Well Sand Control



water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screensContinuous slot well screen, wire screen, Johnson screen, Johnson V Wire Stainless Steel Well Screens





8-5/8" Stainless Steel Johnson Continuous Slot Wire Screen For Water Well Application





Description of Johnson Wedge Wire Screens :



Johnson Wedge wire screens can be made into almost any shape.

Custom applications can be engineered and built to spec.

304 Stainless Steel or 316 Stainless Steel.

Common micron/mesh ratings: 100, 125, 200, 250, 500, 750, 100, 1250.

TVA has used Johnson Screens for water treatment.

Other customers include food processors, architects, refiners, wastewater plants, sugar processors.





Inspection and Test of Stainless Steel Johnson Wedge Well Screen:



1. All Dimensions of water well sand filter will be checked by our quality inspector, and they also can be inspected by Third Party Inspections or representative appointed by buyer.



2. Wall thickness of coupling material is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection.



3. Do Destructive Collapse Test and collaspe Strength Test before shipment.



4. If required, the screens will be made pickling and passivation.



5. The whole manufacturing process can be monitored by Third Party Inspection Company, like international famous BV, SGS, TUV and representative appointed by buyer.



6.The screens will be arranged the Pre-shipment Inspection too if required.



Johnson V Wire Well Pump Filter Screen Specification:

Screen Size Inside Diameter Outside Diameter OD of Female Threaded End
in mm in mm in mm in mm
2 51 2 51 2 5/8 67 2 3/4 70
3 76 3 76 3 5/8 92 3 3/4 95
4 102 4 102 4 5/8 117 4 3/4 121
5 127 5 127 5 5/8 143 5 3/4 146
6 152 6 152 6 5/8 168 7 178
8 203 8 203 8 5/8 219 9 1/4 235
10 254 10 254 10 3/4 273 11 3/8 289
12 305 12 305 12 3/4 324 13 3/8 340
14 356 13 1/8 333 14 356 - -
16 406 15 381 16 406 - -
20 508 18 3/4 476 20 508 -

-



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
