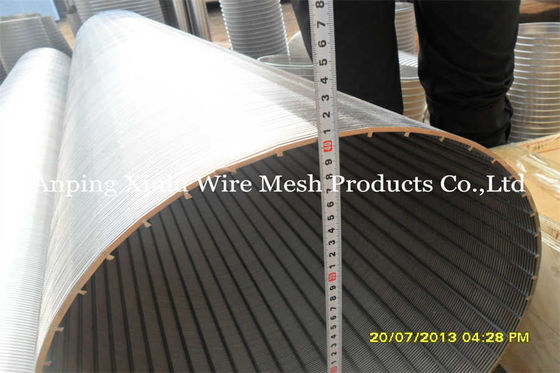

Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening

Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening
Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening

Large Image :  Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO, Quality Inspection Report
Model Number: XL - Continuous Slot Screen - 022
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 150pcs / month

Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening

Description
Product: Stainless Steel Vee-Wire Screen Basket With Continuous Slotted Opening Tag: Water Well Screen, Water Wire Screen, Slotted Screen Pipe
Feature: Non Clogged, Non-clogging, Smooth Surface,Easy Installation, Long Using Life Surface: Polished
Slot: 0.3mm Diameter: 219mm
Used For: In Water Well For Sand Control,water Well, Oil Well, Pump Filter, Groundwater
High Light:

Stainless Steel Vee Wire Screen Basket

,

wedge wire screen basket

,

Continuous Slotted Opening wedge wire basket





Stainless Steel Vee-Wire Screen Basket With Continuous Slotted Opening



water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screensContinuous slot well screen, wire screen, Johnson screen, Johnson V Wire Stainless Steel Well Screens





continuous slot well screen,water well screen



A well screen is a filtering device that serves as the intake portion of wells constructed in unconsolidated or semi-consolidated aquifers. The screen permits water to enter the well from the saturated aquifer, prevents sediment from entering the well, and serves structurally to support the aquifer material. The importance of a proper well screen cannot be overemphasized when considering the efficiency of a well and the log-term cost to its owner.

Well screens are manufactured from a variety of materials and range from crude handmade contrivances to highly efficient and long-life models made on machines. The value of a screen depends on how effectively it contributes to the success of a well. Important screen criteria and functions include:



characteristic

1. large percentage of open area
2. non clogging slots
3. resistant to corrosion
4. sufficient column and collapse strength Functions:
1. easily developed
2. minimal incrusting tendency
3. low head loss through the screen
4. control sand pumping in all types of aquifers


Continuous-Slot Screen

The continuous-slot screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry. It is made by winding rolled wire, triangular in cross section, around a circular array of longitudinal rods. The wire is attached to the rods by welding. Welded screens are commonly fabricated from stainless steel.



Slot openings are manufactured by spacing successive turns of the outer wire to produce the desired slot size. Slot openings have been designated by numbers which correspond to the width of the openings in thousandths of an inch. A No. 10 slot screen, for example.



Continuous-slot screens provide more intake area per unit area of screen surface than any other type. This type of screen has maximum open area. For best well efficiency, the percentage of open area in a screen should be the same as, or great than, the average porosity of the aquifer material. Water flows more freely through a screen with a large intake area compare to one with limited open area. The entrance velocity is low, therefore head loss for the screen is at a minimum, thus minimizing drawdown in the well.



The continuous-slot screen is widely used throughout the world for water,oil,and gas wells,and is the dominant screen type used in the water well industry. Continuous-slot screen is made by winding cold-rolled wire,approximately trianngular in cross section,around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights. Slot opening for continuous screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burns and cuttings.



Johnson V Wire Well Pump Filter Screen Specification:

Screen Size Inside Diameter Outside Diameter OD of Female Threaded End
in mm in mm in mm in mm
2 51 2 51 2 5/8 67 2 3/4 70
3 76 3 76 3 5/8 92 3 3/4 95
4 102 4 102 4 5/8 117 4 3/4 121
5 127 5 127 5 5/8 143 5 3/4 146
6 152 6 152 6 5/8 168 7 178
8 203 8 203 8 5/8 219 9 1/4 235
10 254 10 254 10 3/4 273 11 3/8 289
12 305 12 305 12 3/4 324 13 3/8 340
14 356 13 1/8 333 14 356 - -
16 406 15 381 16 406 - -
20 508 18 3/4 476 20 508 -

-



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening 0Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening 1Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening 2Stainless Steel Vee Wire Screen Basket With Continuous Slotted Opening 3

---------------------------------------------------------------------------------------------------------------



Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
