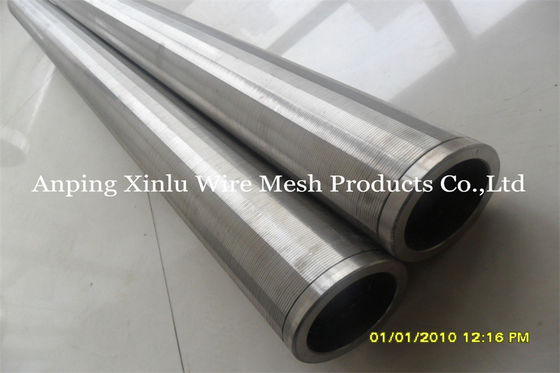

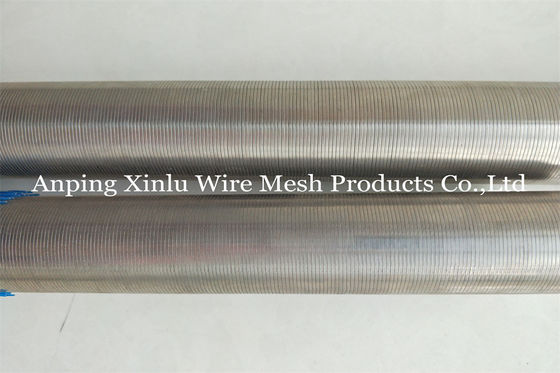

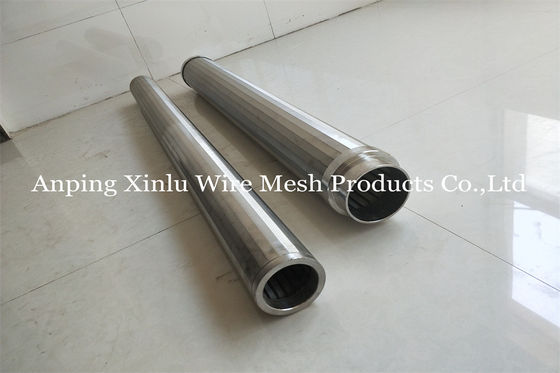

Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube

Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube
Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube

Large Image :  Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO, Quality Inspection Report
Model Number: XL - Continuous Slot Screen - 024
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: wooden case, pallet
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 150pcs / month

Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube

Description
Product: Motor Filter 95 Johnson Vee Wire Continuous Slot Pipe Water Well Screen Tube Tag: Water Well Screen, Slotted Screen Pipe,Oil Gas Stainless Steel Water Well Screen Pipe , Continuous Slot Screen
Feature: Non Clogged, Non-clogging, Smooth Surface,Easy Installation, Long Using Life Surface: Polished
Slot: 0.05mm Diameter: 95mm
Used For: In Water Well For Sand Control,water Well, Oil Well, Pump Filter, Groundwater
High Light:

Motor Filter Slotted Casing Pipe

,

Vee Wire Continuous Slotted Casing Pipe

,

95 Johnson Water Well Screen Tube





Pump Filter 75mm Johnson Vee Wire Wrapped Continuous Slotted Screen Pipe



water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screensContinuous slot well screen, wire screen, Johnson screen, Johnson V Wire Stainless Steel Well Screens





continuous slot well screen,water well screen

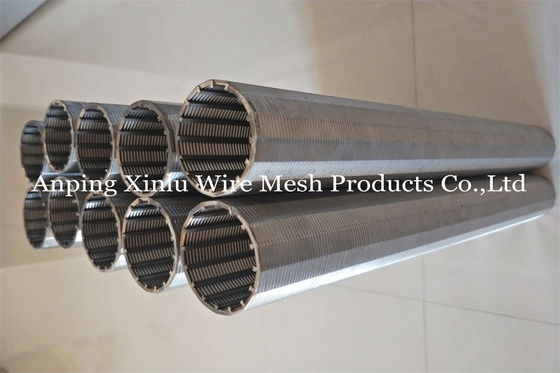

The continuous-slot screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry. It is made by winding rolled wire, triangular in cross section, around a circular array of longitudinal rods. The wire is attached to the rods by welding. Welded screens are commonly fabricated from stainless steel.
Slot openings are manufactured by spacing successive turns of the outer wire to produce the desired slot size. Slot openings have been designated by numbers which correspond to the width of the openings in thousands of an inch. A No. 10 slot screen, for example, is an opening of 0.010 inch.

Continuous-slot screens provide more intake area per unit area of screen surface than any other type. This type of screen has maximum open area. For best well efficiency, the percentage of open area in a screen should be the same as, or great than, the average porosity of the aquifer material. Water flows more freely through a screen with a large intake area compare to one with limited open area. The entrance velocity is low, therefore head loss for the screen is at a minimum, thus minimizing drawdown in the well.



characteristic

1. large percentage of open area
2. non clogging slots
3. resistant to corrosion
4. sufficient column and collapse strength Functions:
1. easily developed
2. minimal incrusting tendency
3. low head loss through the screen
4. control sand pumping in all types of aquifers



Johnson V Wire Well Pump Filter Screen Specification:

Product Continuous slot well screen, wire screen, Johnson screen
Slot Size(mm) 0.10, 0.15, 0.2, 0.25, 0.30-3, also achieved upon customer request.
Material Low Carbon ,Low Carbon Galvanized steel (LCG), Stainless Steel( 304,etc.)
Lengths up to 6 meters
Diameter 25 mm to 1200 mm

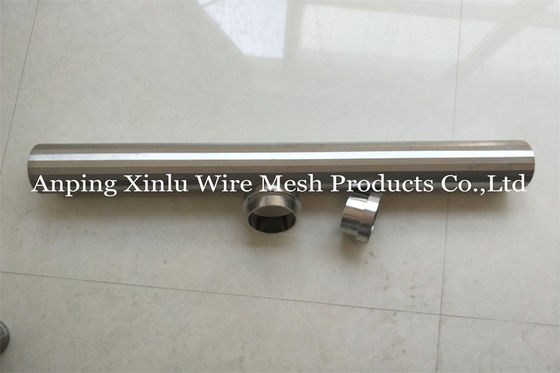

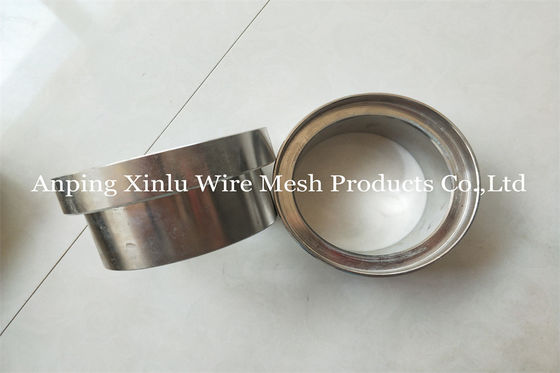

End Connection Plain beveled ends, welding rings, flanges or threaded ( Thread male/female coupling ) .
The data for reference only, we can design it as the client’s request.

FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube 0Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube 1Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube 2Motor Filter 95 Johnson Vee Wire Continuous Slotted Casing Pipe Water Well Screen Tube 3

---------------------------------------------------------------------------------------------------------------



Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
