AISI 304 10" 273mm 10ft long Water Well Screens For Sand Control In Water Wells
Sand control well Screens, also called Water Well Screens, Johnson screen, johnson wire screen, johnson screen tube, johnson screen pipe, johnson well screen, johnson filter screen, wire wrapped screen pipe, wire wrapped screen tube, wedge wire strainer pipe, v wire slot tube, v wire screens, wedge wire screen, wound screen, slotted screen.
Sand Control Water well Screens are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.
Sand Control Water well screen’s specific construction, developed over a century for a world wide demanding customer base, optimises flow rates,minimises clogging thus helping faster formation development.
Sand Control Water well Screens Advantages:
MAXIMISING FLOW RATES
When considering screens of equal length, diameter and slot size, flow rates through Vee-Wire screens can be:
1. three times higher than bridge-slot screens
2. nine times higher than slotted casing
NON CLOGGING SLOT
Sand Control Water well Screen’s Vee-Wire is designed to provide unique structural strength.
The “V” shaped openings allow only two contact points with sand grains, thus reducing clogging and making cleaning easier.
MORE EFFICIENT WELL
At th end of the “well development”,in which finer sand grains are pumped into the well and removed, only the larger sand and gravel particles are left next to the well screen; the water then passes freely around these coarse particles and enters the well.
Sand Control Water well Screens Details:
- Material: stainless steel wire or galvanized wire.
- Surface profile: triangle wire.
- Support profile: triangle wire, round bar and wedge wire.
- Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
- Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 20"
- Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
- Maximum collapse strength: 150 bar.
- Maximum tensile strength:40 tons.
- Connection type: Bevel welded rings; male/female threaded coupling.
- Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
- Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
-
Sand Control Water well Screens Specification:
|
Sizes
(inch)
|
OD
(mm)
|
Slot
(mm)
|
Length
(m)
|
Tensile
Strength
|
Collapse Strength |
Wrap wire
Vee-shaped wire(mm)
(Width x height)
|
Support rod
Round wire(mm)
|
| 3-1/2 |
88.9 |
1.0 |
2.9 |
＞22 |
10.2 |
2.2x3.5mm |
ø3.8MM×22 |
| 4-1/2 |
114.3 |
1.0 |
2.9 |
＞28 |
11.5 |
2.2x3.5mm |
ø3.8MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.2x3.5mm |
ø3.8MM×32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.2x3.5mm |
ø3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2x6.0mm |
ø6.0MM×32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3x3.5mm |
ø3.8MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0x5.0mm |
ø4.0MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2x6.0mm |
ø5.0MM×48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.2x3.5mm |
ø4.0MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0x4.6mm |
ø4.8MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2x6.0mm |
ø5.0MM×55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0x5.0mm |
ø4.0MM×56 |
| 14 |
355.6 |
1.0 |
2.9 |
＞80 |
37.8 |
3.0x5.0mm |
ø4.0MM×59 |
| 16 |
426 |
1.0 |
2.9 |
＞80 |
37.5 |
3.0x5.0mm |
ø4.0MM×54 |

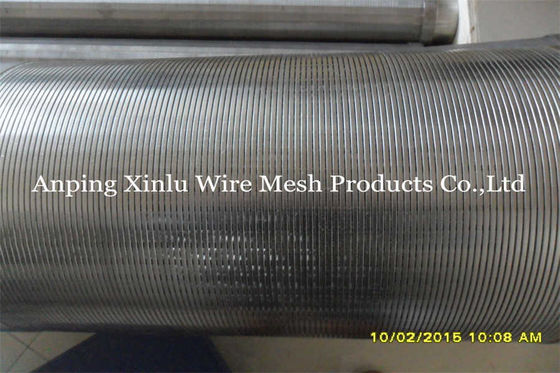

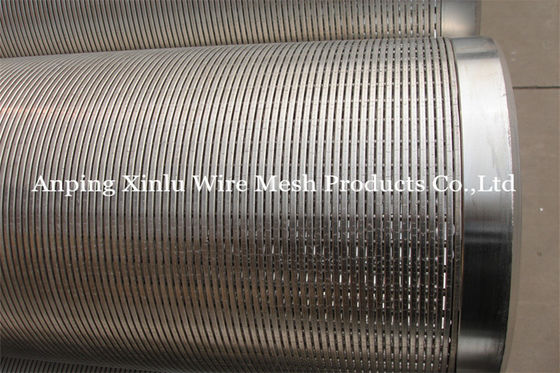

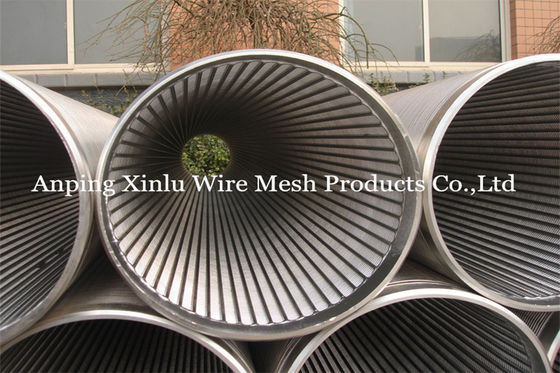

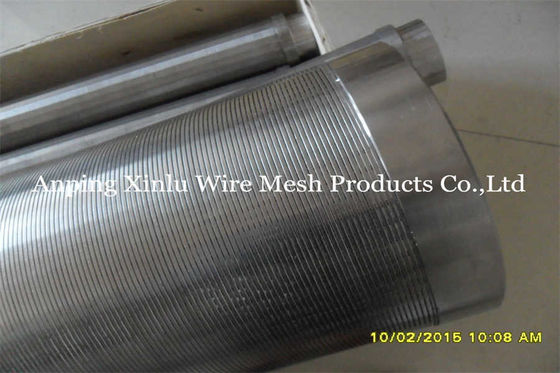

Sand Control Water well Screens Pictures:

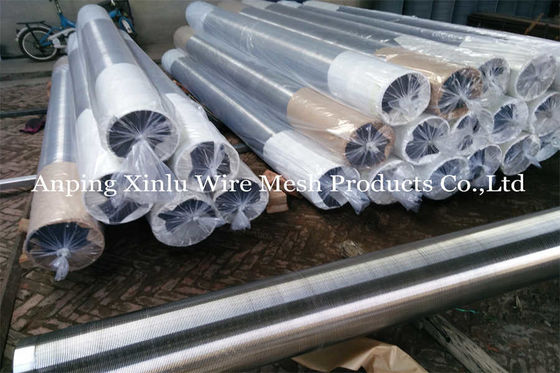

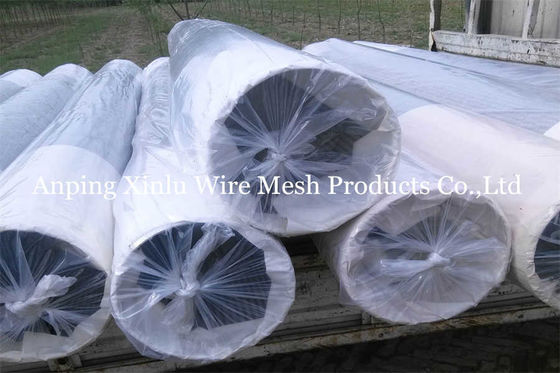

Sand Control Water well Screens Package
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-20 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q7. What's the wire?
A: Well deep: v profile wire: 2.5x4mm Well deep: 200-300m,
v profile wire: 3x4.6mm Well deep: 350-450m
v profile wire: 3.3x6.5mm Well deep: 500-650m
