4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance

Certification
China Anping County Xinlu Wire Mesh Products Co., Ltd. certification
China Anping County Xinlu Wire Mesh Products Co., Ltd. certification
I'm Online Chat Now

4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance

4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance
4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance

Large Image :  4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: ISO
Model Number: XL- Sand Control Screens - 024
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: Air bubble film, wooden, pallet; plastic film ,340 pcs per 20GP container
Delivery Time: 5-7days
Payment Terms: T/T, L/C
Supply Ability: 800pcs / 15days

4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance

Description
Filter Name: Johnson Wedge Wire Sand Control Screen Material: Stainless Steel Grade 304
Long: 2950mm Outdiameter: 114.3mm
V Wire: 2.2x3.5mm Round Support Rod :: ø3.2mm
Surface Treatment: Electrolytic Polishing , Pickling And Polishing Usage: In Water Well For Sand Control
End Joint: Bevel Welded Rings Feature: Corrosion Resistance
Welded Type: V Wire Wrapped Welded Collapse Strength: 11.5Ton
Tensile Strength: 28 Tag: 4-1/2" Wire Wrapped Sand Control Pipe ; Corrosion Resistance Wire Wrapped Sand Control Pipe ; Corrosion Resistance Sand Control Pipe
High Light:

Wire Wrapped Sand Control Well Screen

,

Slot 40 Sand Control Well Screen

,

4-1/2" Water Well Sand Screen

4-1/2" Wire Wrapped Sand Control Well Screen Pipe For Sand Control



Sand control screen is also called Water wire screen, wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, oil well screen, continuous slot screen.


Sand control well screen pipe are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.



Sand control well screen pipe  Details:

  • Material: stainless steel wire or galvanized wire.
  • Surface profile: triangle wire.
  • Support profile: triangle wire, round bar and wedge wire.
  • Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
  • Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 20"
  • Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
  • Maximum collapse strength: 150 bar.
  • Maximum tensile strength:40 tons.
  • Connection type: Bevel welded rings; male/female threaded coupling.
  • Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
  •

Sand control well screen pipe Specification:



Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tensile

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

(Width x height)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.2x3.5mm ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.2x3.5mm ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0mm ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5mm ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0mm ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0mm ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2x3.5mm ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x4.6mm ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0mm ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0mm ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0x5.0mm ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0x5.0mm ø4.0MM×54





Sand control well screen pipeAdvantages:
1. Its uniform filter slots and high precision ensure the effective retention of filter medium.
2. Water wire screen has a larger circulation area compared with other screens.
3. The tiny gaps between wedge wires form a smooth wedge-shaped cross section, which makes sure no dead ends, excellent resistance to block and easy to backwash (blow wash).
4. Water wire screen has high mechanical strength and can withstand high pressure drop.
5. Water wire screen is made of superior stainless steel wires (Such as: AISI 304 and 316L) AND low carbon galvanized with strong corrosion resistance and high temperature resistance performances and can totally adapt to various harsh environment.
6. Water wire screen adapts to different forms of fluid direction with high strength, large flow and high pressure resistance performance.
7. Water wire screen maintains stable filtration accuracy and can be reused repeatedly and work reliably.

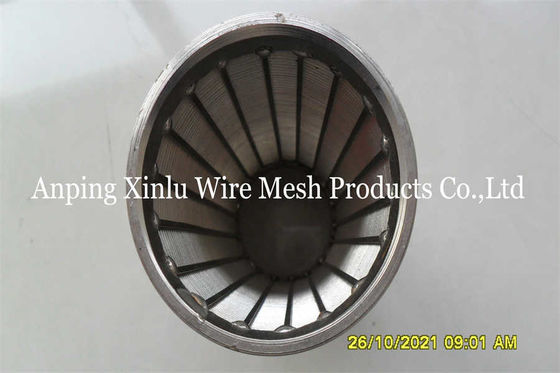

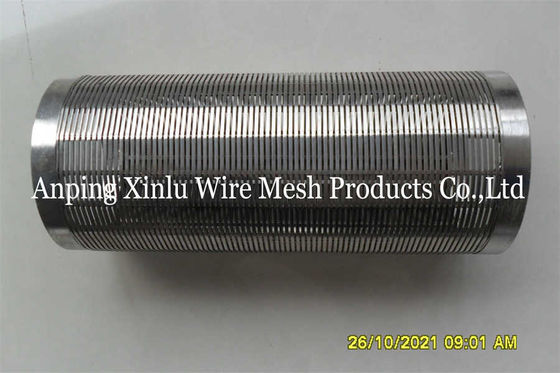

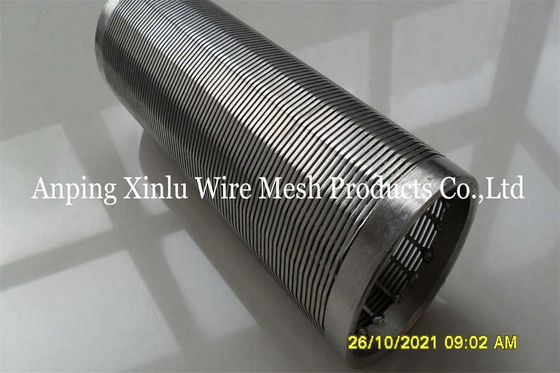

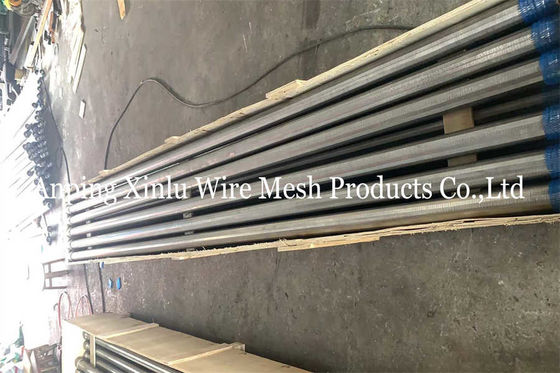

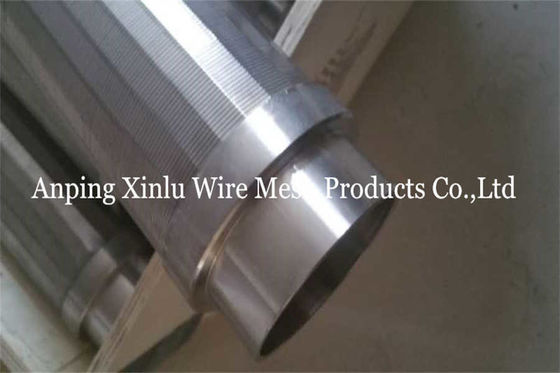

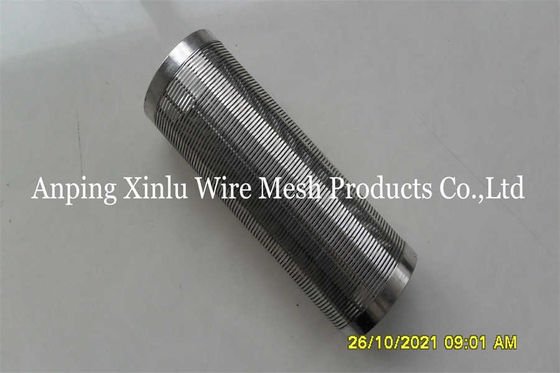

Sand control well screen pipePhotos and Package:

4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 04-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 14-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 24-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 3

4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 4



4-1/2" Slot 40 Wire Wrapped Sand Control Well Screen Pipe Corrosion Resistance 5



FAQ



Q1. Can I have a sample order?



A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.





Q2. What about the lead time?



A: 3-5 days for Sample preparing , 15-20 working days for mass production.





Q3. Do you have any MOQ limit for the order?



A: Low MOQ, 3pc for sample checking is available.





Q4. How do you ship the goods and how long does it take to arrive?



A: Airline, sea shipping and rail transportation are all optional.



Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.





Q5. How to proceed an order?



A: Firstly let us know your need specification or application.



Secondly We quote according to your requirements or our suggestions.



Thirdly customer confirms and places deposit for formal order.



Fourthly We arrange the production.





Q6. Is it OK to print my logo on the product?



A: Yes. Please inform us formally before our production.





Q7. What's the wire?



A:  Well deep: v profile wire: 2.5x4mm  Well deep: 200-300m,

                           v profile wire: 3x4.6mm  Well deep: 350-450m

                           v profile wire: 3.3x6.5mm  Well deep: 500-650m





Product Tags: 4-1/2" wire wrapped sand control pipe ; corrosion resistance wire wrapped sand control pipe ; corrosion resistance sand control pipe
