6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control

6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control
6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control

Large Image :  6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: ISO
Model Number: XL- Sand Control Screens - 025
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: Air bubble film, wooden, pallet; plastic film ,340 pcs per 20GP container
Delivery Time: 5-7days
Payment Terms: T/T, L/C
Supply Ability: 800pcs / 15days

6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control

Description
Filter Name: Continuous Slot Vee Wire Water Well Screen For Sand Control Material: Stainless Steel Grade 304
Long: 2950mm Outdiameter: 6-5/8"
V Wire: 2.5x4mm Round Support Rod :: ø3.8mm
Surface Treatment: Electrolytic Polishing , Pickling And Polishing Usage: In Water Well For Sand Control
End Joint: Bevel Welded Rings Feature: Corrosion Resistance
Welded Type: V Wire Wrapped Welded Collapse Strength: 12.8on
Tensile Strength: 33 Tag: Sand Control Vee Wire Screen ; Continuous Slot Vee Wire Screen ; 6-5/8" Continuous Slot Screen ;
High Light:

6-5/8" Sand Screen Mesh

,

Continuous Slot Vee Wire Screen

,

Polishing Sand Control Vee Wire Screen

6-5/8" Continuous Slot Vee Wire Water Well Screen For Sand Control



Sand control screen is also called Water wire screen, wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, oil well screen, continuous slot screen.



Continuous Slot Vee Wire Water Well Screen Introduce:



Continuous Slot Vee Wire Water Well Screens are received by simultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction.

This technology allows to provide welded profile wire screens for applications where high precision of the screen together with high strength is required.



Continuous Slot Vee Wire Water Well Screen Characteristics:



1. The application of trapezoidal wire, the Formation of Vee-shaped openings between the slots of continuous slot vee wire water well screen. The design works more efficiently than other products and ensures smooth water filtration.



2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire arranged in a circular manner, which ensures the opening area of the continuous slot vee wire water well screen and no obstruction, and avoids the high-density accumulation of sediment, which provides a guarantee for improving the production efficiency and prolongating the service life of the filter.



3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.



4. Longitudinal arrangement of supporting wire and continuous slot form of screen tube designed according to actual demand make the product have higher compression performance.



Sand control well screen pipe  Details:

  • Material: stainless steel wire or galvanized wire.
  • Surface profile: triangle wire.
  • Support profile: triangle wire, round bar and wedge wire.
  • Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
  • Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14", 16", 20"
  • Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
  • Maximum collapse strength: 150 bar.
  • Maximum tensile strength:40 tons.
  • Connection type: Bevel welded rings; male/female threaded coupling.
  • Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
  •

Sand control well screen pipe Specification:



Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tensile

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

(Width x height)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.2x3.5mm ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.2x3.5mm ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0mm ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5mm ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0mm ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0mm ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2x3.5mm ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x4.6mm ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0mm ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0mm ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0x5.0mm ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0x5.0mm ø4.0MM×54

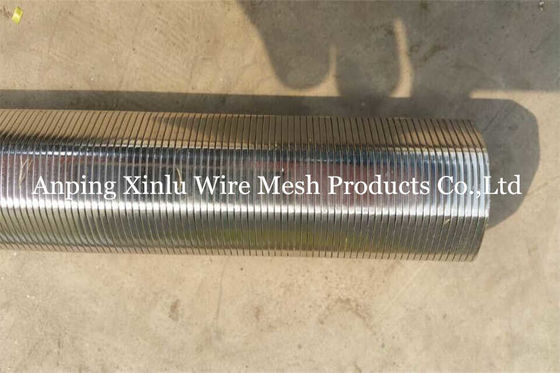

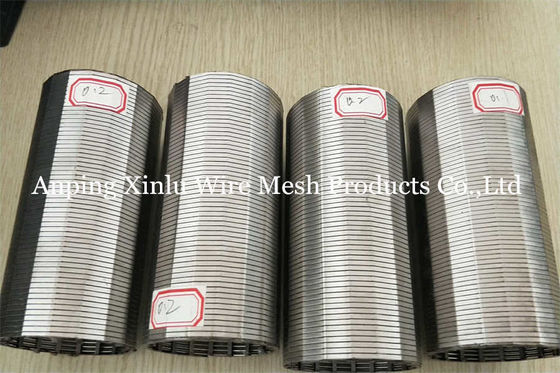

Sand control well screen pipePhotos and Package:

6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 06-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 16-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 2

6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 3



6-5/8" Continuous Slot Water Well Vee Wire Screen Polishing For Sand Control 4
