Vee 300micron Slot Sand Control Water Well Screen With Male Female Threaded
Sand control screen is also called Water wire screen, wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, oil well screen, continuous slot screen.
Sand Control Water Wire Screen Material:
304 stainless steel (316L, 2205,904L and other materials can be)
Sand Control Water Wire Screen Specifications:
Various specifications can be customized according to customer requirements.
Sand Control Water Wire Screen Features:
stainless steel fused wire winding screen barrel is composed of bars and screen bars, the gap size is accurate, high filtration accuracy;Strong structure, high temperature and corrosion resistance;Can be used for a variety of media filtration.
Xinlu Wedge Wire Screen company independently developed, production of stainless steel fully welded wire winding screen, used in power plant, mixed bed, chemical industry, oil well, water well, natural gas well, sand control, filtration, metallurgy, papermaking, environmental protection, desalination and other industries of all kinds of coarse and fine filtration.Sophisticated production is our basic requirement, different process, of course, different quality, and the general production of rough, low price products are different.
Sand Control Water Wire Screen produced by xinlu wedge wire screen company is made of stainless steel wire with special section, which is wound and welded with advanced technology on special equipment.It has the characteristics of simple structure, easy to use, high strength, light weight, strong corrosion resistance, large filtration area, good seepage performance and so on.Welcome customers to send drawings customized.
Sand Control Water Wire Screen Use:
Water well
Water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Vee 300micron Slot Sand Control Water Well Screen With Male Female Threaded Wire Size:
-
- Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
- Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
-
Vee 300micron Slot Sand Control Water Well Screen With Male Female Threaded Specification:
|
Sizes
(inch)
|
OD
(mm)
|
Slot
(mm)
|
Length
(m)
|
Tensile
Strength
|
Collapse Strength |
Wrap wire
Vee-shaped wire(mm)
(Width x height)
|
Support rod
Round wire(mm)
|
| 3-1/2 |
88.9 |
1.0 |
2.9 |
＞22 |
10.2 |
2.2x3.5mm |
ø3.8MM×22 |
| 4-1/2 |
114.3 |
1.0 |
2.9 |
＞28 |
11.5 |
2.2x3.5mm |
ø3.8MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.2x3.5mm |
ø3.8MM×32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.2x3.5mm |
ø3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2x6.0mm |
ø6.0MM×32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3x3.5mm |
ø3.8MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0x5.0mm |
ø4.0MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2x6.0mm |
ø5.0MM×48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.2x3.5mm |
ø4.0MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0x4.6mm |
ø4.8MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2x6.0mm |
ø5.0MM×55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0x5.0mm |
ø4.0MM×56 |
| 14 |
355.6 |
1.0 |
2.9 |
＞80 |
37.8 |
3.0x5.0mm |
ø4.0MM×59 |
| 16 |
426 |
1.0 |
2.9 |
＞80 |
37.5 |
3.0x5.0mm |
ø4.0MM×54 |

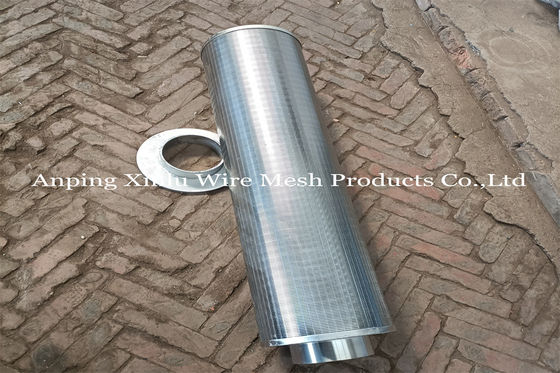

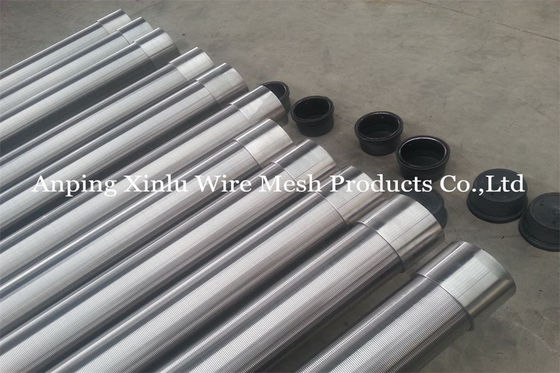

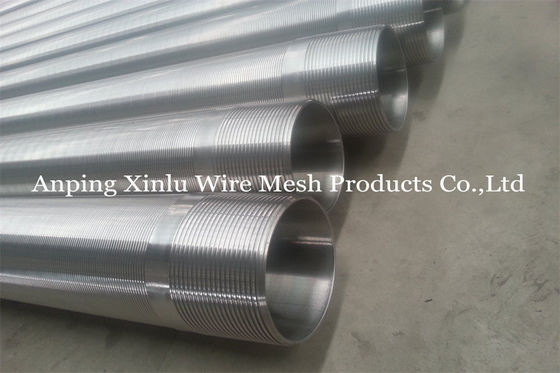

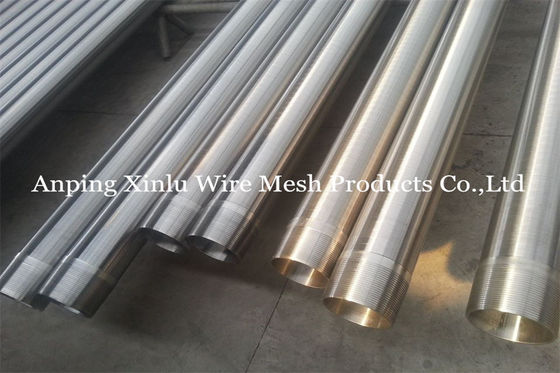

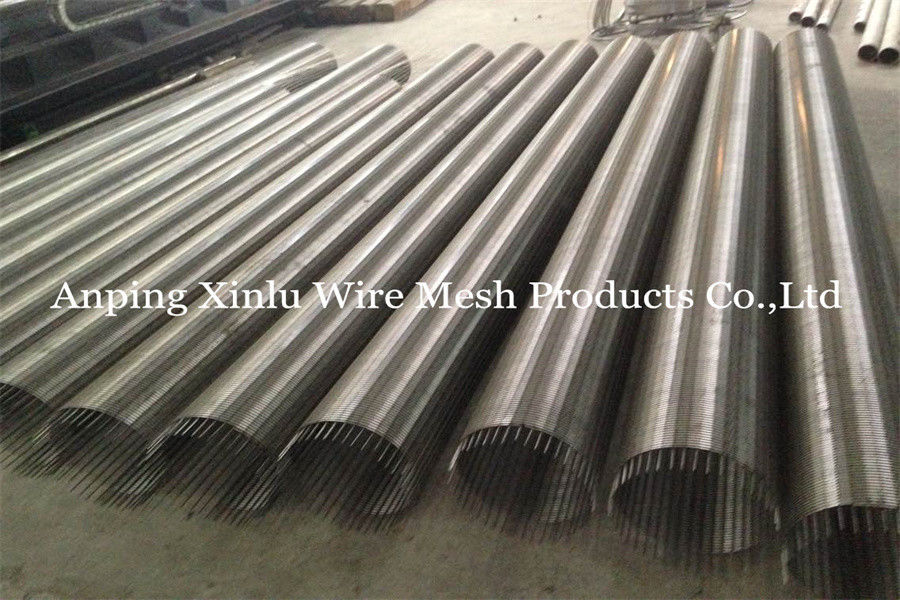

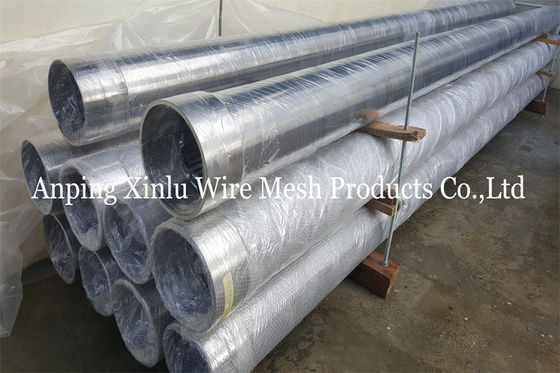

Vee 300micron Slot Sand Control Water Well Screen With Male Female ThreadedPhotos and Package:
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
Product Tags: 0.3mm slot sand control screen ; male female threaded sand control screen ; 300micron slot sand control water wire screen
