ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap
ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap

Large Image :  ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: ISO
Model Number: XL- Sand Control Screens - 034
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: Air bubble film, wooden, pallet; plastic film ,340 pcs per 20GP container
Delivery Time: 5-7days
Payment Terms: T/T, L/C
Supply Ability: 800pcs / 15days

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap

Description
Filter Name: Profile Wire Sand Control Screen Material: Stainless Steel 304
Long: 2900mm Outdiameter: 6-5/8 " (168mm)
V Wire: 2.5x4mm Support Rod :: 3.8mm
No. Of Rods: 48 PCS Slot: 0.04" (1.0mm)
Flow Type: From Outside To Inside Surface Treatment: Polished
Usage: Water Well Filter End Joint: Welded Rings
Feature: Non-clogging Welded Type: V Wire Wrapped Welded
Tag: 6-5/8" Diameter Johnson Wire Screen ; 0.04" Gap Johnson Wire Screen ; ISO Johnson Wire Screen Technique: Point Welding
Application: Filteration Weight: 45KG/piece
High Light:

V Wire Sand Screen Mesh

,

Profile Wire Mesh Sand Screen

,

Johnson Screen Mesh 0.04" Gap

AISI 304 6-5/8" Diameter Profile V Wire Johnson Sand Control Screen Pipe With 0.04" Gap



Profile Wire Sand Control Screen Description:

Johnson strainer,Johnson filter,water well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:



·Water Well

·Waste Water Treatment

.Water supply systems

·Coal & Mine

·Food Processors & Beverage Screens

·Environmental protection

·Refining & Petrochemical

·Architecture & Construction



Profile Wire Sand Control Screen Specificarion:

Name Profile Wire Sand Control Screen
Material Stainless steel
Grade 304
O.D 168mm
Size 6-5/8"
Length 2900mm
Solt size 1.0 mm
End connection welded rings
Wire size 2.5x4mm
Support rod ø3.8mm round wire
Weight 54kg/pcs



Profile Wire Sand Control Screen Specification:



Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tensile

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

(Width x height)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.2x3.5mm ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.2x3.5mm ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0mm ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5mm ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0mm ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0mm ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2x3.5mm ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x4.6mm ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0mm ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0mm ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0x5.0mm ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0x5.0mm ø4.0MM×54



Profile Wire Sand Control Screen Details:

  •
  • Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
  •
  •

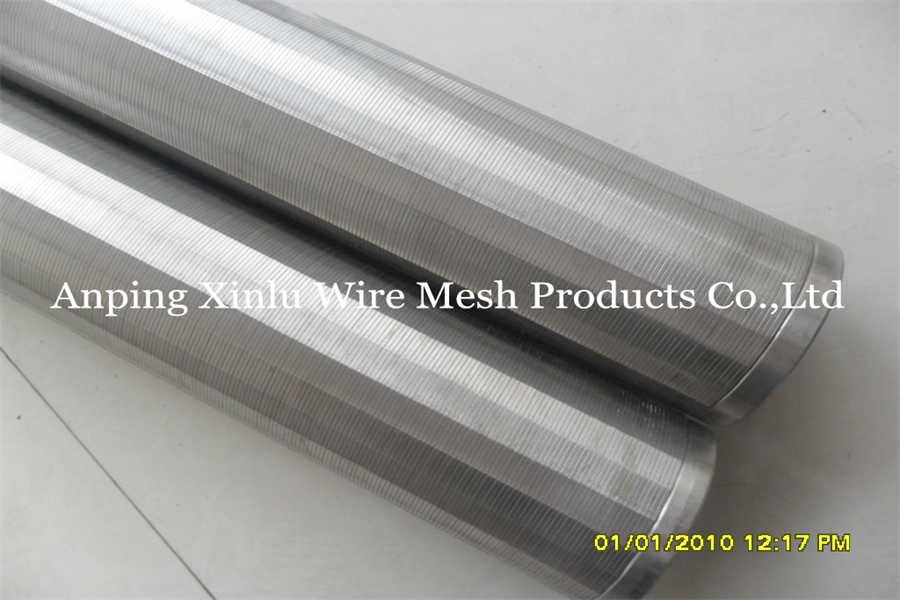

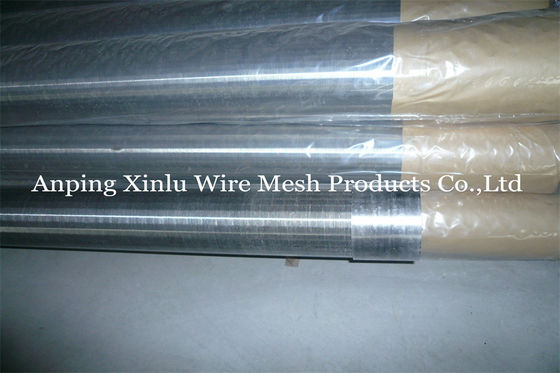

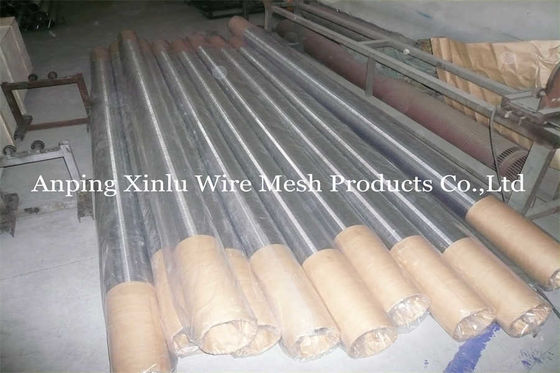

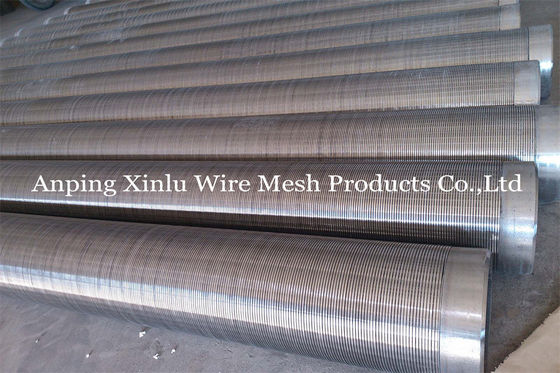

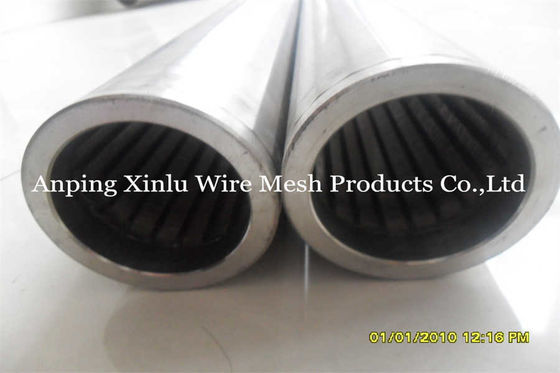

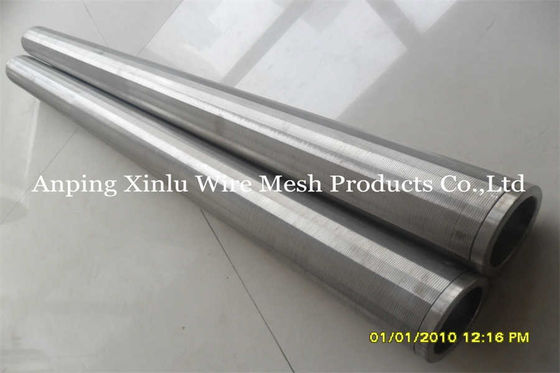

Profile Wire Sand Control Screen photos and Package:

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap 0ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap 1ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap 2ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap 3

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap 4

ISO Profile V Wire Johnson Sand Control Screens Pipe With 0.04" Gap 5



FAQ



Q: Are you trading company or manufacturer?

A: We are manufacturer.



Q:To quote,what’s information needed?

A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.



Q: How long is your delivery time?

A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.



Q: Could you provide free sample?

A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.



Q: What is your terms of payment?

A: 30% T/T as deposit,the balance before shipment.



Q:How to confirm the quality about your products?

A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.



Q: How do you make our business long-term and good relationship?

A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.





Product Tags: 6-5/8" Diameter Johnson Wire Screen ; 0.04" Gap Johnson Wire Screen ; ISO Johnson Wire Screen
