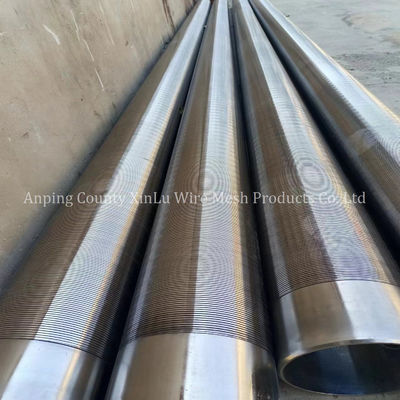

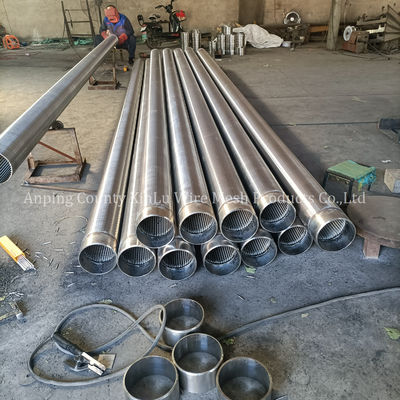

Pressure Vee Wire Wrapped Sand Control Water Well Screen Tubes with Welded Baffle Rings Connection

Pressure Vee Wire Wrapped Sand Control Water Well Screen Tubes with Welded Baffle Rings Connection

Product Description:

Our No Magnetic Wedge Wire Sand Control Screens are perfect for wells where magnetic interference is a concern. These screens are made from non-magnetic materials and are available in single or double screen layers.

Our Wedge Wire Continuous Slot Sand Control Screens are designed to provide maximum sand retention and prevent gravel-pack movement. They are available in various slot sizes and support rod diameters ranging from ø2.5mm to ø5.5mm. We also offer a variety of end connections, including threaded, flanged, bevel plain ends, and welded baffle rings connections.

Our Wedge Wire sand control screens have a pressure rating of 1000psi to 10000psi, making them suitable for a wide range of well conditions. They are highly durable and resistant to corrosion, which extends their service life and reduces maintenance costs. Our screens are also designed to provide high flow rates and excellent filtration efficiency, ensuring optimal well performance.

Features:

• Product Name: Wedge Wire Sand Control Screens

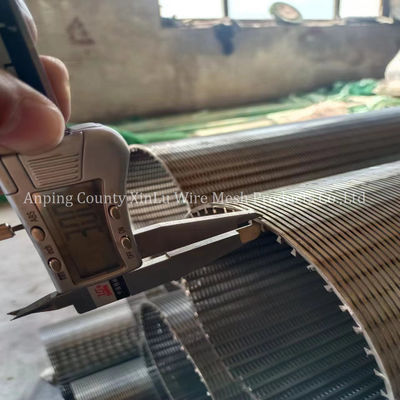

• Slot:
  • 0.010"
  • 0.020"
  • 0.030"
  • 0.040"
  • 0.050"
  • 0.060"
  • 0.070"
  • 0.080"
  • 0.090"
  • 0.10"
• Length:
  • 2.9m
  • 5.85m To Fit Container
  • 10ft / 20ft
• End Connection:
  • Threaded
  • Flanged
  • Bevel Plain Ends

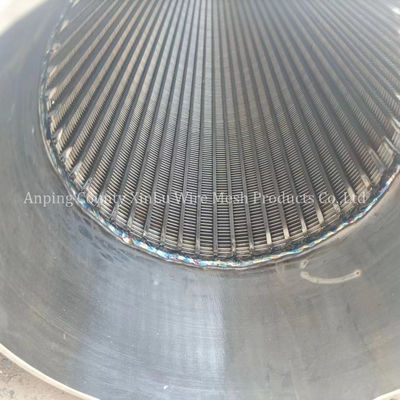

  • Welded Baffle Rings Connection
• Material:
  • Stainless Steel 304 316L 321
  • Duplex Stainless Steel 2205, 2207
  • Q195 Q235

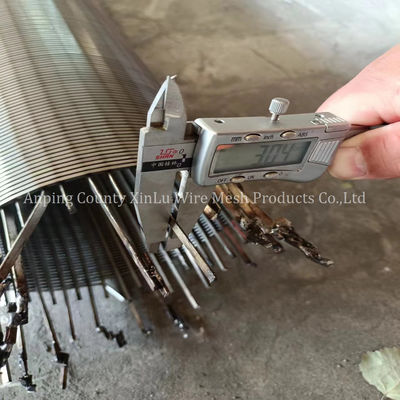

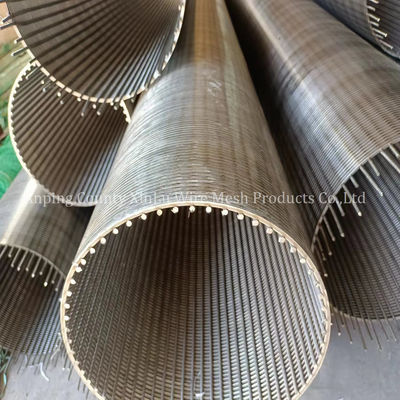

• Support Rods: ø2.5mm - ø5.5mm
•

Our Sand Control Screens product line includes:

• Polished Sand Control Screen Tube
• Pure Round Sand Control Screens
• Sand Control Johnson Wire Screen

Technical Parameters:

Applications:

The Wedge Wire Sand Control Screens by XinLu are made of high-quality materials such as Stainless Steel 304 316L 321, Duplex Stainless Steel 2205, 2207, Q195 Q235. The support rods have a diameter ranging from ø2.5mm to ø5.5mm and the slot size can range from 0.010" to 0.10". The wire shape can be round, rectangular, Vee Wire, or Wedge Wire. The length of the screens varies from 2.9m, 5.85m to fit container, or 10ft / 20ft.

The V Wire Sand Control Screens are ideal for applications such as oil and gas wells, water wells, and geothermal wells. The V-shaped wires provide excellent filtering and sand control, preventing sand and other particles from entering the wellbore. The Wire Wrapped Sand Control Screens are commonly used in gravel-packed wells, providing support to the gravel pack and preventing sand from entering the wellbore. The Wedge Wire Sand Control Johnson Wire Screens are designed with a continuous slot opening, providing a large open area and low entrance velocity. This makes them ideal for applications that require high flow rates and low pressure drop.

XinLu's Wedge Wire Sand Control Screens are suitable for a wide range of occasions and scenarios, including horizontal wells, vertical wells, cased and open holes, and stand-alone screens. They are also effective in controlling sand production, reducing well maintenance costs, and prolonging the life of the well. The screens are easy to install and maintain, making them a cost-effective solution for sand control.

Customization:

Product Customization Services for XinLu Wedge Wire Sand Control Screens

• Brand Name: XinLu
• Model Number: XL - Wedge Wire Sand Control Screens - 033
• Place of Origin: Anping County Xinlu Wire Mesh Produts Co.,Ltd
• Certification: CO, FORM E, FORM F, SGS
• Minimum Order Quantity: 10pcs
• Price: 50-400$ according to the specification
• Packaging Details: inside transparent plastic bag, outside woven bag, or bubble bag, or wooden box, or pallet
• Delivery Time: 5-20days according to the order quantity
• Payment Terms: T/T, cash, or others
• Supply Ability: 300pcs/month
• Support Rods: ø2.5mm - ø5.5mm
• Screen Layer: Single, Double
• Material: Stainless Steel 304 316L 321, -Duplex Stainless Steel 2205, 2207, Q195 Q235
• Screen Type: Wire Wrapped, Perforated
• Wire Shape: Round, Rectangular, Vee Wire, Wedge Wire

We offer customization services for Continuous Slot Sand Control Screens, Sand Control Screen Tube, and Dewatering Sand Control Screens.

Support and Services:

The Wedge Wire  Sand Control Screens product technical support and services include:

• Design and engineering support
• Installation and commissioning supervision
• Onsite technical assistance
• Training and education programs
• Equipment maintenance and repair services
• Product testing and analysis

Packing and Shipping:

Product Packaging:

• Each Wedge Wire sand control screen will be individually wrapped in a protective plastic bag.
• Multiple screens will be placed in a sturdy cardboard box with cushioning material to prevent damage during transit.
• The box will be securely sealed with packing tape.
•

Shipping:

• Shipping will be done through a reputable courier service.
• Tracking information will be provided to the customer once the order has been shipped.
• Delivery times may vary depending on the customer's location.

FAQ:

Q: What is the brand name of the Wedge Wire sand control screen product?

A: The brand name of the Wedge Wire sand control screen product is XinLu.

Q: What is the model number of the XinLu Wedge Wire sand control screens?

A: The model number of the XinLu sand control screens is Wedge Wire Sand Control Screens -.033

Q: Where do the XinLu Wedge Wire sand control screens originate from?

A: The XinLu sand control screens originate from Anping County Xinlu Wire Mesh Produts Co.,Ltd.

Q: What certifications do the XinLu Wedge Wire sand control screens have?

A: The XinLu Wedge Wire sand control screens have CO, FORM E, FORM F, and SGS certifications.

Q: What is the minimum order quantity of the XinLu Wedge Wire sand control screens?

A: The minimum order quantity of the XinLu Wedge Wire sand control screens is 10pcs.

Q: What are the payment terms for the XinLu Wedge Wire sand control screens?

A: The payment terms for the XinLu Wedge Wire sand control screens are T/T, cash, or other forms of payment.

Q: What is the price range of the XinLu Wedge Wire sand control screens?

A: The price range of the XinLu Wedge Wire sand control screens is between 50-400$ according to the specification.

Q: What are the packaging details for the XinLu Wedge Wire sand control screens?

A: The packaging details for the XinLu Wedge Wire sand control screens are inside transparent plastic bag, outside woven bag, or bubble bag, or wooden box, or pallet.

Q: What is the delivery time for the XinLu Wedge Wire sand control screens?

A: The delivery time for the XinLu Wedge Wire sand control screens is 5-20days according to the order quantity.

Q: What is the supply ability for the XinLu Wedge Wire sand control screens?

A: The supply ability for the XinLu Wedge Wire sand control screens is 300pcs/month.
