DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage

DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage
DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage

Large Image :  DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Model Number: XL - Water Well Screen Pipe - 02 - 60
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 36-56usd/m
Packaging Details: carton, wooden case, pallet
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 1000m / 20days

DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage

Description
Product Name: Fine Filter Perfect Roundness Well Screen Pipe,wire Wrapped Screen Pipe,water Well Screen Pipe Out Diameter: 60mm
Slot: 0.05mm Material: SS316L
Length: 1m Profile Wire: 1x2mm
Support Wire: 2x3mm Type: Stainless Steel Filter Screen Pipe, Johnson Well Screen Pipe
High Light:

Beverage Well Screen Pipe

,

50 Micron Well Screen Pipe

,

DN60 Slotted Screen Pipe

DN60 x Slot 50 Micron Perfect Roundness Water Well Screen Pipe used in beverage filtration



Introduction for Perfect Roundness Water Well Screen Pipe



1. Materaial of Perfect Roundness Water Well Screen Pipe



We use normally 304 and 316L S.S.

Completed specifications for material to adapt to customer demand.



2. Perfect Roundness Water Well Screen Pipe Construction



Our filter elements were welded by profile wire and support wire. We can make the screens in different shape according to the different usage. Like tube and plate etc.



  • ​We use wedge-shaped profile wire in order to make the slot v-shaped. It can stop the impurities very well.
  • The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.
  • After wok for a period of time, the filter can be back flush. It can use for many times.

3.  Perfect Roundness Water Well Screen Pipe Specification





No. Type

OD

mm

ID

mm

Support Wire Number Filter Direction
1 XLD 25.4 25.4 18.6 12 FOTI
2 XLD 33 33 24 8 FOTI
3 XLD 37 37 28 8 FOTI
4 XLD 40 40 31 8 / 10 FOTI/ FITO
5 XLD 45 45 36 10 / 12 FOTI/ FITO
6 XLD 48 48 38 12 FOTI/ FITO
7 XLD 60 60 51 12 FOTI/ FITO
8 XLD 70 70 61 12 / 18 FOTI/ FITO
9 XLD 85 85 76 18 FOTI/ FITO
10 XLD 110 110 101 24 FOTI/ FITO
11 XLD 120 120 111 24 FOTI/ FITO

  Remarkes

  • 1. Make Tubes with different material according to user requirements
  • 2. Slot should be bigger than 0.025mm and less than 2500mm long, OD shoule be smaller than 220mm



4.  Flow of Perfect Roundness Water Well Screen Pipe

  • From outside to inside (FOTI)
  • from inside to outside(FITO)



5. Type of profile wire and support wire



  • Profile Wire of Perfect Roundness Water Well Screen Pipe
Profile Wire Width Height Material
10SR 0.75mm 1.5mm 304 316 316L,etc
12SR 1.0mm 2.0mm 304 316 316L,etc
18SR 1.5mm 2.9mm 304 316 316L,etc

  • Support Wire of Perfect Roundness Water Well Screen Pipe
Profile Wire Width Height Material
Q22 2.0mm 2.3mm 304 316 316L,etc
Q25 2.0mm 3.0mm 304 316 316L,etc






6 . Perfect Roundness Water Well Screen Pipe Product Instruction



V Wire Slot Tubes instruction: Xinlu company Slot tubes widely used in beverage / beer filtration, paper making industry, industrial waste water treatment, oil, water desalination, etc. This slot tube is the most widely used in all kinds of filter screens.

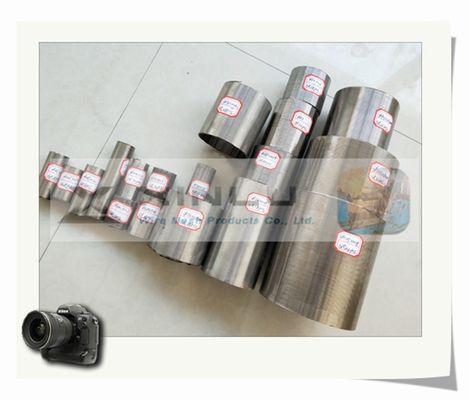

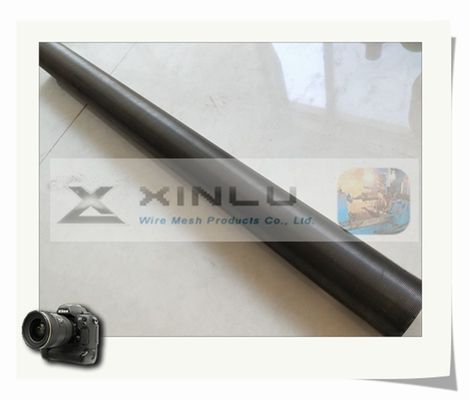

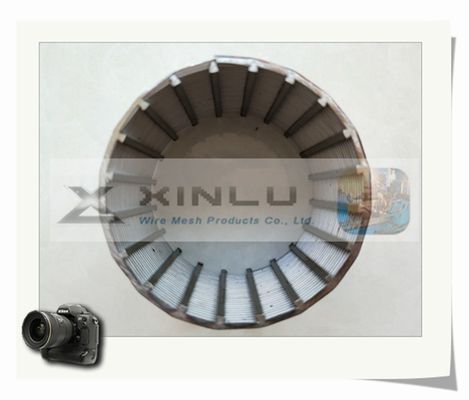

DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage 0DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage 1



DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage 2

DN60 Well Screen Pipe Fine 50 Micron Slotted Screen Pipe For Beverage 3





FAQ



Q1. Can I have a sample order of Perfect Roundness Water Well Screen Pipe?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time of Perfect Roundness Water Well Screen Pipe?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
