Product Details:
|
Product Name: | Stainless Steel Screen Panel, Wedge Wire Screen Panel, Welded Screen Plate, Mining Equipment, Reverse Rolled Wedge Wire Screen, Johnson Wedge Wire Screen, Stainless Steel Wedge Wire Welded Sieve Bend Screen | Material: | Stainless Steel 304L, 304 316L Wedge Wire 316 |
---|---|---|---|
Profile Wire Size: | 1.8x2.5mm, 2.2x3.5mm, 3x4.6mm, 3x5mm,customized | Thickness: | 3-12mm, Customized |

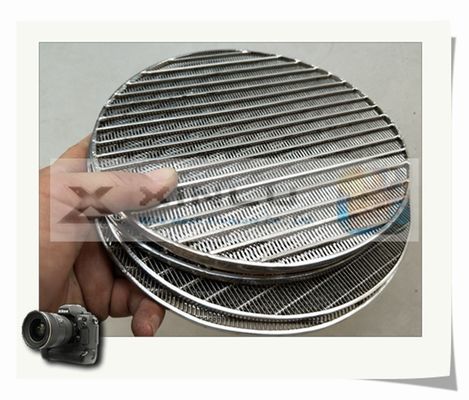

Usage: | Liquid Filter, Solid Filter, Welded Wedge Wire Candle Filter, Kinds Filtration Industry, Water Filed Or Oil Filed | Type: | Filter Elements, Filter Cylinder, Filter Disc, Flat Screen, Wire Wrapped Well Screen Cylinders / Wedge Wire Panels |
Width: | Customize Size, 300-3000mm | Length: | Customize Length, Up To 6m |
Highlight: | Welded Wedge Wire Screen Panel,Stainless Steel Wedge Wire Screen Panel,Stainless Steel Profile Wire Screen |

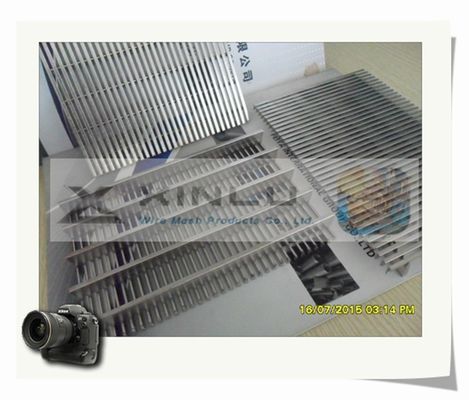

1.2x2m Stainless Steel Welded Profile Wire 3x5mm Screen Panel , Wedge Wire Screen Plate
Produce Name: wire wrapped panel, Johnson Screen plate, flat wedge wire panel with frame, Johnson screen flat panel, flat panel screens, sieve bend, arc screen, slot wire screen plate, stainless steel wire sieve, sieving wire mesh, wide slit screens, vibrating sieve screen
PROFILE WIRE | ||||||||
WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
SUPPORT ROD | ROUND |
|||||
WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Welded wedge wire screen is manufactured by flat welded screen in panel or cylinder type.

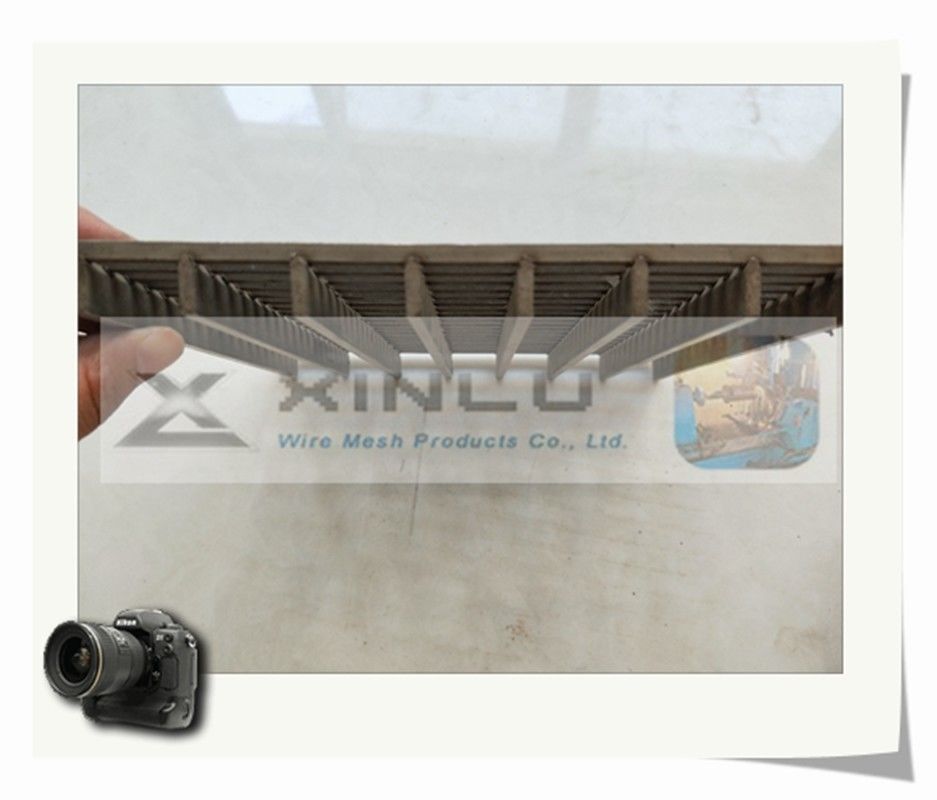

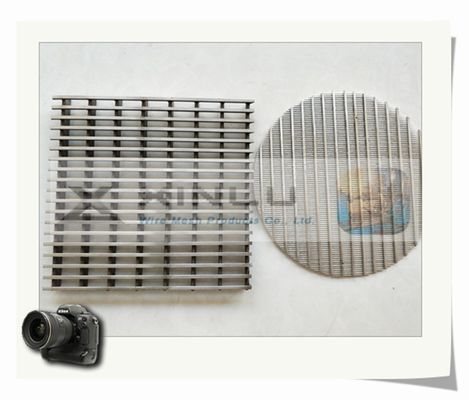

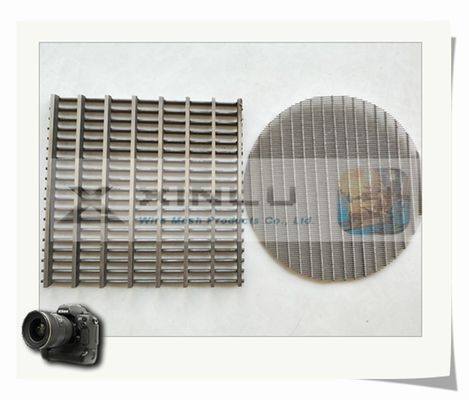

Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings.

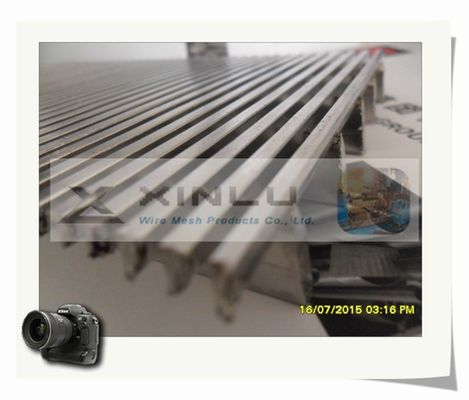

Welded Wedge Wire Screens are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.
We can produce Wedge Wire Panels in widths up to 3000 mm and lengths up to 6000 mm in single piece construction. The slots can be offered right from 50 microns rating to 750 microns & above.
This kind of wedge wire can replace conventional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen, etc..
Application:
Separating;
Sizing;
Straining;
De-watering;
Filtering;
Drying;
Water intake;
Media retention.
Also can be used in Mining, Breweries, Petrochemicals , Grain Storage, Fermentation Floors etc
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
