Product Details:
|
| Key Words: | Johnson Wedge Wire Screen Pipe, Wire Wrapped Screen Pipe, Wedge Wire Water Well Screen, Trapezoidal Wire Screen Pipe, Stainless Steel Filter Tube, V Wire Slot Tube | Selling: | High Strength, Bright, No Magnetic, Anti-Corrosion, Easy Installation, Anti-Pressure, Rust Resistant |
|---|---|---|---|
| Long: | 5.8m, Max 20ft | Connection: | Threaded Male & Female Coupling, API STC |
| Surface: | Pickling And Polishing,Bright | OD: | 114mm, 168.3mm, 219.1mm, 273mm, 300mm, 325mm, 426mm |
| Advantage: | Non-clogging ,Rust Resistant | Factory: | Anping County Xinlu Wire Mesh Products Co.,Ltd |
| High Light: | 5.8m Threaded Steel Pipe,Groundwater Threaded Steel Pipe,Groundwater High Strength Steel Tubing |
||
High Strength Johnson Wedge Wire Screen Pipe Length 5.8m With Threaded for Groundwater
water well screen pipe, johnson well screeen, rod based wire wrapped screen, wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
Product Advantages:
1. High Strength Johnson Wedge Wire Screen Pipe Length 5.8m With Threaded for Groundwater
2. Selling point: High Strength, Anti-Corrosion, Easy Installation, Anti-Pressure, Rust resistant
3. Surface treatment: Pickling and polishing, Bright
4. Slot size: 0.05-50mm
5. Length: 1m, 2m, 3m,10ft, 4m, 5m, 5.85m, 20ft

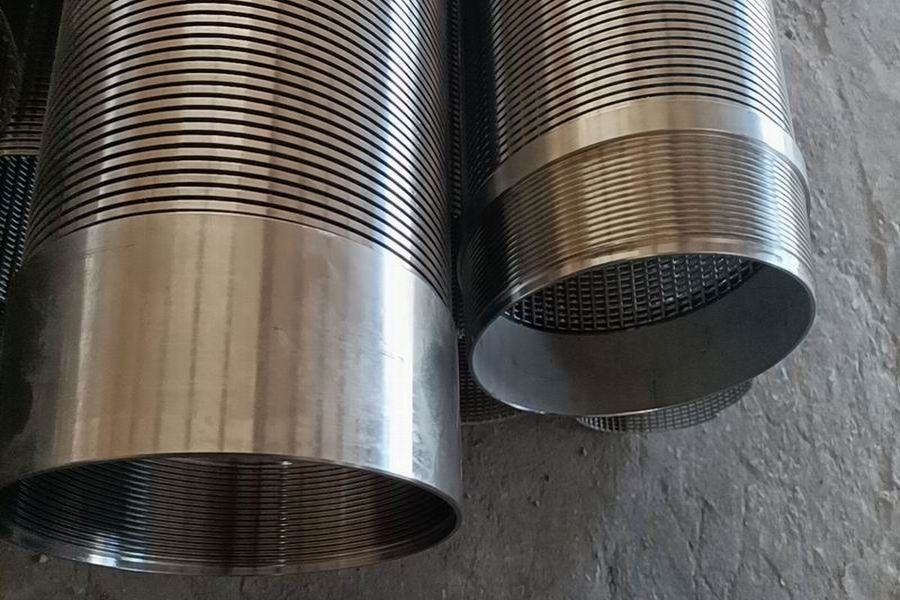

6. End connection: Welded rings, threaded male and female coupling, flange
7. Well deep: v / wedge wire: 2.5x4mm Well deep: 200-300m,
v / wedge wire: 3x4.6mm Well deep: 350-450m
v / wedge wire: 3.3x6.5mm Well deep: 500-650m
Johnson Wedge Wire Screen Pipe Features
1. High Open Area
More than 25% of open area allows water to seep through the dewatering screen at a reduce speed, while allowing for a lower flow resistance. The enhances the water removal rate, resulting in a more efficient water removal process.
2. Non-clogging Performance
Continuous slots widen inwardly from the screen surface to minimize the chance of sand clogging the slot opening,
3. Excellent Pressure Resistance
The wedge wire screen is welded in a single from with no weld seams on the surface. Precise welding technology gives the screen its strength, making it ideal from high pressure applications
4. Great Sand Barrier
Precisely machined slots keep sand, silt and clay from entering the well, preventing abrasion.
5. Easy Installation
Compared to bridge slot screens or cement pipes, the wedge wire well screen in lightweight and easy to lay on the ground. It is also safe and convenient.
6. Material
The screen is available is galvanized, low-carbon steel, or stainless steel in grades 304 and 316, Premium materials do not retain sand and other impurities, ensuring a non-clogging performance.
Technological Parameters of Johnson Wedge Wire Screen Pipe Pipe
|
SIZE (INCH) |
O.D (MM) |
SLOT (INCH) |
LENGTH (M) |
COLLAPSE STRENGTH (PSI) |
TENSILE WEIGHT (TON) |
WRAP (thick x deep) (MM) |
RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.5 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 2.5*4.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*4.6 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 |
3.2*6.0 |
5.0MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*4.6 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 2.5*4.0 | 3.5MM/50 |
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND |
|||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Used:
Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry
Custom well screens
Inform us of your specifications for the water well screen, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.
Package:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Quality assurance
1. Every production process has a special person to test to ensure quality
2. Have professional engineers to check the quality
Johnson Wedge Wire Screen Pipe Manufacturing Steps
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
