Pharmaceutical Welding Stainless Steel Pipe V Wire Welded Tubes

Ss304 Pure Round Winding Slot V Wire Screen Tube Filter Pipe For Pharmaceutical Industry

Pure Round Solid- Liquid Separation Winding V Wire / Wedge Wire Screen Tube

Wedge wire screen filter also be named Wound screen, Wire wrapped screen, Johnson screen, Wire screen pipe,

Well screen tube,Slotted tube.

Winding v wire / wedge wire screen tube is made of support wire and v-shaped wire around welding, support wire and V-shaped wire around resistance welding, with high welding strength, uniform gap, strong corrosion resistance, effective filtration area, good permeability, simple structure, belongs to the surface filtration form. As a filter element for various forms of automatic filters (such as automatic backwash, brush self-cleaning) for fluid filtration in various industries, the filtration accuracy is 20-800μm.

The finished products have the characteristics of high strength, high hardness, wear and corrosion resistance, uniform gap, good seepage, easy to clean and reverse cleaning.

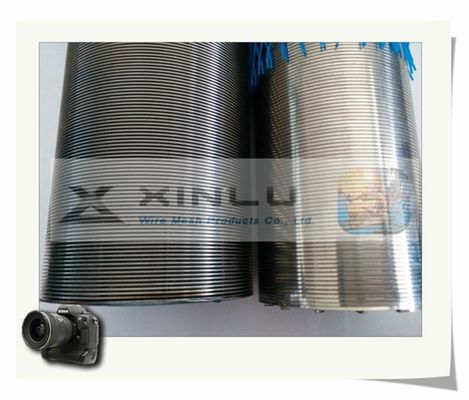

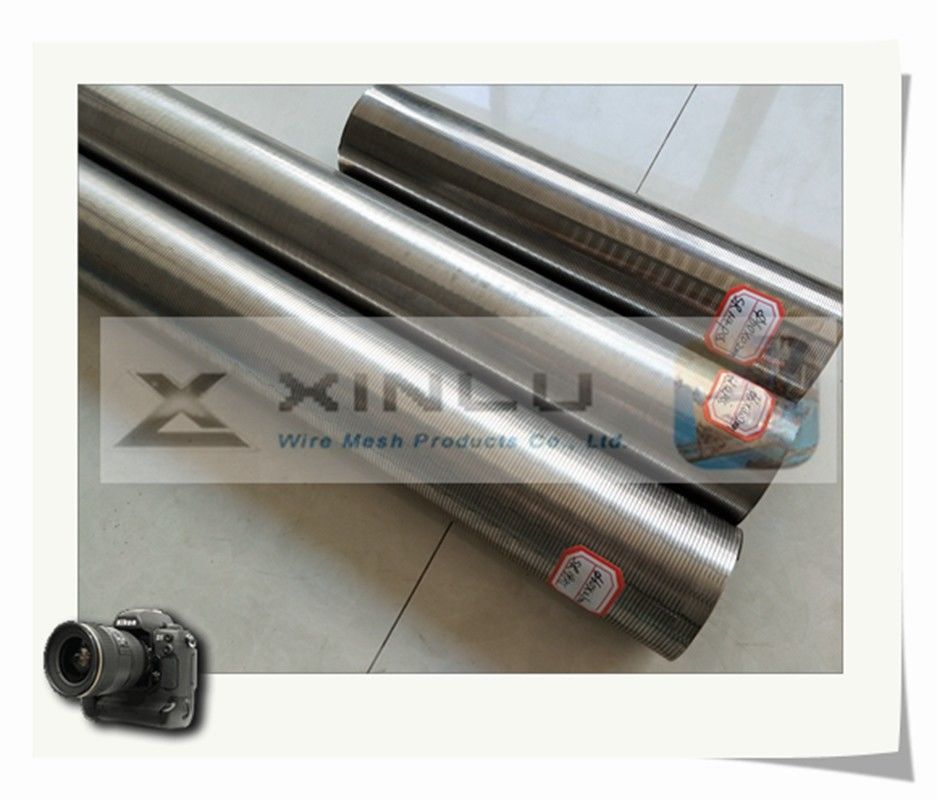

1.   V wire-wound screen pipe

All-welded wedge wire-wound screen pipe is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

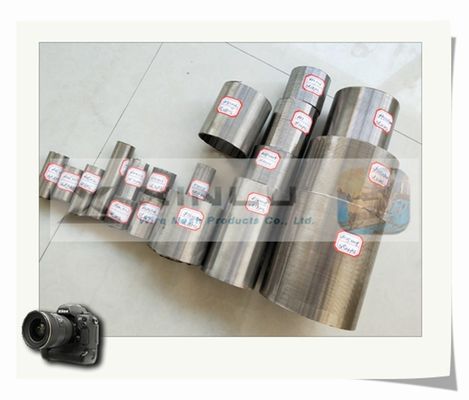

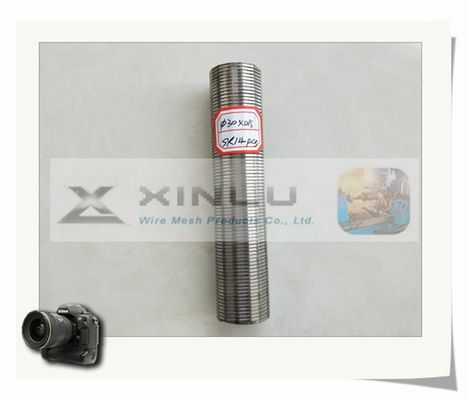

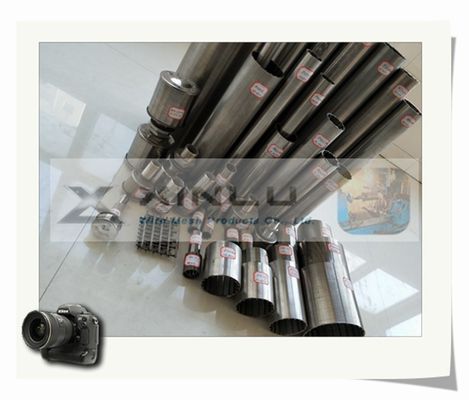

2. Winding V Wire Screen Tube:

3.  V Wire-Wrapped Welding Screen Tubes Flow Type

• From outside to inside (FOTI)
• from inside to outside(FITO)

4.  Profile Wire an Support Wire Size of V Wire-Wrapped Welding Screen Tubes

• Profile Wire

• Profile Wire	Width	Height	Material
  10SR	0.75mm	1.5mm	304 316 316L,etc
  12SR	1.0mm	2.0mm	304 316 316L,etc
  18SR	1.5mm	2.9mm	304 316 316L,etc

• Support Wire

• Profile Wire	Width	Height	Material
  Q22	2.0mm	2.3mm	304 316 316L,etc
  Q25	2.0mm	3.0mm	304 316 316L,etc

5 .  V Wire-Wrapped Welding Screen Tubes Product Instruction

V Wire-Wrapped Welding Screen Tubes Struction: Xinlu company Slot tubes widely used in beverage / beer filtration, papermaking industry, industrial waste water treatment, oil, water desalination, etc. This slot tube is the most widely used in all kinds of filter screens.

6 .  V Wire Slot Tube Specification

• No.	Type	OD mm	ID mm	Support Wire Number	Filter Direction
  1	XLD 25.4	25.4	18.6	12	FOTI
  2	XLD 33	33	24	8	FOTI
  3	XLD 37	37	28	8	FOTI
  4	XLD 40	40	31	8 / 10	FOTI/ FITO
  5	XLD 45	45	36	10 / 12	FOTI/ FITO
  6	XLD 48	48	38	12	FOTI/ FITO
  7	XLD 60	60	51	12	FOTI/ FITO
  8	XLD 70	70	61	12 / 18	FOTI/ FITO
  9	XLD 85	85	76	18	FOTI/ FITO
  10	XLD 110	110	101	24	FOTI/ FITO
  11	XLD 120	120	111	24	FOTI/ FITO

Remarkes

1. Make Tubes with different material according to user requirements

2. Slot should be bigger than 0.025mm and less than 2500mm long, OD shoule be smaller than 220mm

7.  Application:

water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical
