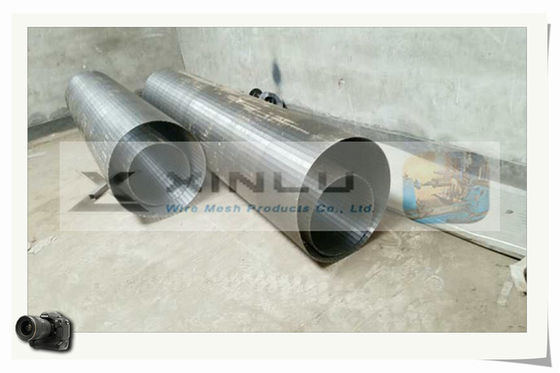

DN 29- 600mm Johnson Vee Wire Screen Pipe Non Clogging Wedge Wire Oil Filter Tube
stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
Johnson V Wire Screen Tube, Wedge Wire Oil Filter Tube Performance Characteristics:
The application of trapezoidal wire, so that the screen tube gap between the formation of V shaped opening.
The trapezoidal wire continuous winding forms continuous high-density uniform gaps on the supporting wires arranged in a circular manner.
The winding wire and all supporting wire are connected by electric welding, durable, long working life cycle.
According to the actual needs of the design of support wire longitudinal arrangement and the continuation of the screen gap form, the stainless steel screen high compressive performance
Johnson V Wire Screen Tube, Wedge Wire Oil Filter Tube Parameters:
1. Material: low carbon steel, stainless steel (201, 304,316, etc.) Stainless steel 201, 304,316, etc,Non-magnetic Stainless steel, Low carbon galvanized,Duplex steel etc.
2. Selling point: High Strength, Easy Installation, Anti-Pressure, Rust resistant
3. Surface treatment: Electrolytic polishing or Pickling and polishing, smooth surface,No burrs, brightly
4. The length is 5.8 meters or 2.9 meters to fit container.
5. The opening area is up to 80%.
6. Flow type: From outside to inside (FOTI), from inside to outside(FITO)
7. Production process: end connection are full welded
8. End connection: beveled, circumferential welded, threaded
9. Package:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Johnson V Wire Screen Tube, Wedge Wire Oil Filter Tube Information:
|
Sizes
(inch)
|
OD
(mm)
|
Slot
(mm)
|
Length
(m)
|
Tenslie
Strength
|
Collapse Strength |
Wrap wire
Vee-shaped wire(mm)
|
Support rod
Round wire(mm)
|
| 3-1/2 |
88.9 |
1.0 |
2.9 |
＞22 |
10.2 |
2.2*3.5 (Width*height) |
ø3.8MM×22 |
| 4-1/2 |
114.3 |
1.0 |
2.9 |
＞28 |
11.5 |
2.2*3.5(Width*height) |
ø3.8MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.2*3.5(Width*height) |
ø3.8MM×32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.2*3.5(Width*height) |
ø3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2*6.0(Width*height) |
ø6.0MM×32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3*3.5(Width*height) |
ø3.8MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0*5.0(Width*height) |
ø4.0MM×48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2*6.0(Width*height) |
ø5.0MM×48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.2*3.5(Width*height) |
ø4.0MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0*4.6(Width*height) |
ø4.8MM×55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2*6.0(Width*height) |
ø5.0MM×55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0*5.0(Width*height) |
ø4.0MM×56 |
| 14 |
355.6 |
1.0 |
2.9 |
＞80 |
37.8 |
3.0*5.0(Width*height) |
ø4.0MM×59 |
| 16 |
426 |
1.0 |
2.9 |
＞80 |
37.5 |
3.0*5.0(Width*height) |
ø4.0MM×54 |
Advantages of Wedge Wire Screen Pipe:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Use:
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Waste water treatment
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet
---------------------------------------------------------------------------------------------------------------
Anping XinLu wire mesh products co.,ltd, it is a manufacturer and exporter of wedge wire screen products.
-----------------------------------------------------------------------------------------------------------------------------------------------
