Johnson Type V Wire /Wedge Wire Screen–No-Clogging & Less Pressure Drop
Johnson Type V Wire / Wedge Wire Screen Description:
Johnson Type V Wire /Wedge Wire Screen is welded by winding support strip.
It has high strength, rigidity and bearing capacity, and can be made into a rigid screen filter device.
Johnson Type V Wire /Wedge Wire Screen Pipe is customized for fecal extrusion dehydration, and is processed by fusion welding process for solid-liquid separator and wedge-shaped slit filter.
Johnson Type Wedge Wire Screen surface of the slit has the advantages of high screening efficiency, strong anti-seismic tensile capacity, low maintenance cost and long service life.
Johnson Type V Wire /Wedge Wire Screen Specification:
| Item |
Johnson Type V Wire / Wedge Wire Screen |
| Material |
Stainless steel 304, 304L, 316L and 321 etc. |
| Profile Wire Width |
0.75mm to 3.2mm |
| Profile Wire Height |
1.0mm to 6.0mm |
| Support Rods Width |
1.0- 3.0mm |
| Support Rods Height |
1.5mm to 6.0mm |
| Round |
From 2.3mm to 6.0mm |
| Slot Size |
0.05mm,0.1mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length |
Max 6 meters |
| Pipe diameter |
29mm to 2000mm |
| Pipe Screen Ends |
Plain Beveled ends, male/female threaded, flange or close up. |
| Usage |
Sewage treatment and flood system: water source inlet,basement supply, carbon and resin retention, decentralization softening and ion exchange, sand, double and mixed media filtration, waste water sludge treatment;
|
|
Mineral processing, paper making and food processing: screening, coal drying, starch filtration,
pulp and plant fiber filtration, beverage filtration;
|
| Customized |
Available |
Johnson Type V Wire /Wedge Wire Screen Application:
Livestock manure, slaughtering wastewater, distiller's grains, potato residue, wastewater from wood processing enterprises, solid-liquid separation of biogas residue, dehydration of traditional Chinese medicine residue, food industry materials, etc.
Johnson Type V Wire /Wedge Wire Screen Feature & Advantage:
- Precision and uniform slot spacing;
- High open area;
- Resist plugging and prevent sand from damaging pumps;
- Minimum drawdown and less energy usage by a pump;
- Minimum pressure drop.
Package of the water well steel slotted screen pipe:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Advantages of Wedge Wire Screen Pipe:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Use:
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Waste water treatment
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet
---------------------------------------------------------------------------------------------------------------
Anping XinLu wire mesh products co.,ltd, it is a manufacturer and exporter of wedge wire screen products.
-----------------------------------------------------------------------------------------------------------------------------------------------
Why choose us ?
1. We are the professional manufacturer.
2. We can give you the best quality products with competitive price.
3. Professional sales team can give you feedback within 24 hours.
4. We offer 12 months excellent after-sale service.
5. We offer customized service.
6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.

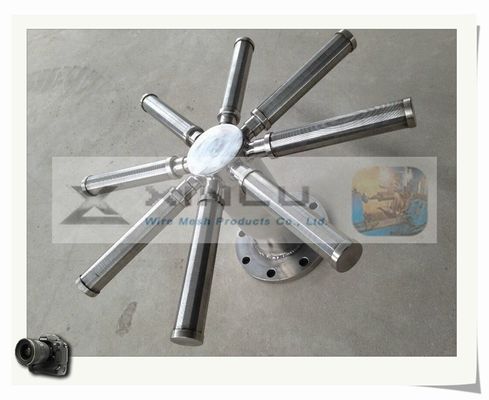

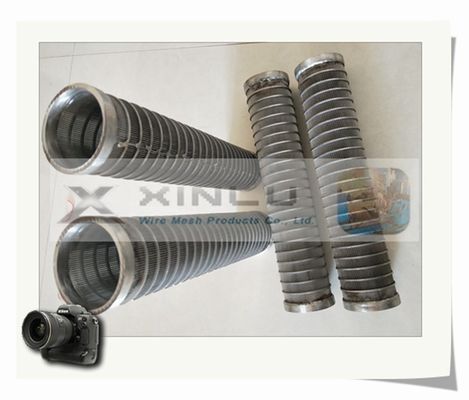

Dewatering Sand Control V Wire Screen Production Process and Pictures:
