Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic

Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic
Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic

Large Image :  Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping XinLu Wire Mesh Products Co.,Ltd
Certification: FORM E
Model Number: XL - Wire Wrapped Screens - 013
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: Negotiable
Packaging Details: carton, wooden case, pallet
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 100pcs / month

Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic

Description
Production Name: Perfect Round NO Magnetic Wedge Wire Wrapped Water Well Screen Tube Material: Stainless Steel 304,316L,Non-magnetic SS, Low Carbon Galvanized,Duplex Steel Etc.
Selling Point: Easy Cleaning, Easy Installation, Long Using Life Wedge Wire: Wedge Wire, V Wire, Trapezoidal Wire ,Triangle Wire ,Triangular Wire
Slot: 0.1-30mm Length: 2.95m, 5.85m
Surface TreatmentElectrolytic Polishing Pickling And Polishing: Electrolytic Polishing, Pickling And Polishing Connection: Welded Rings/Plain Beveled Ends;Male/female Threaded: API STC, PT NPT, BSP, G;Flange Etc.
High Light:

30mm Slot Stainless Steel Filter Element

,

316L Stainless Steel Filter Element

,

Non Magnetic Wedge Wire Pipe



Perfect Round NO Magnetic Wedge Wire Wrapped Water Well Screen Tube



Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen.



Product Quick Detail:



1. Perfect Round NO Magnetic Wedge Wire Wrapped Water Well Screen Tube



2. Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,Duplex steel etc.



3. Diameter: From 29-800mm (Normal diameter is in the below table)


4. Slot: From 0.1-100mm (Normal slot 0.5mm,0.63mm,0.75mm. 1.0mm.1.5mm, Pls refer to below table)


5. Length: From 100-6000mm (Normal length is 2.95m or 5.85m, to ft container)

6. Ends:Welded rings/Plain beveled ends;Male/female threaded: API STC, PT NPT, BSP, G;Flange etc.



7. Package of wedge wire wrapped screens:


Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet



V Wire Wrapped Water Well Screen, Wedge Wire Wrapped Johnson well screen Tube Product Description



Wire Wrapped Water Well Screens consist of V- shape profile wire and the longitudinal support rods. Each intersecting point of those wire is fusion welded. so Water Well Screens has sturdy constriction and good mechanical property.The V- shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water well screens under the great pressure, so it can filter sand better. Meanwhile, The slot of Water Well Screens can change according to the real condition of the earth.



Features of V Wire Wrapped Water Well Screen, Wedge Wire Wrapped Johnson well screen Tube


They are non-clogging
Self-supported and rigid
Very long lifetime
Reliable and consistent filtration rating
All metallic construction (non-metallic also possible like PP)
Easy to clean smooth filtering surface




SIZE

(INCH)



O.D

(MM)



SLOT

(MM)



LENGTH

(M)



COLLAPSE

STRENGTH

(BAR)



TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59



Type of profile wire and support wire





 PROFILE WIRE
 WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
 HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35



 SUPPORT ROD           Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 0
ROUND
 WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
 HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----



Custom well screens

Inform us of your specifications for the water well screen pipe, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.



Quality assurance

1. Every production process has a special person to test to ensure quality

2. Have professional engineers to check the quality

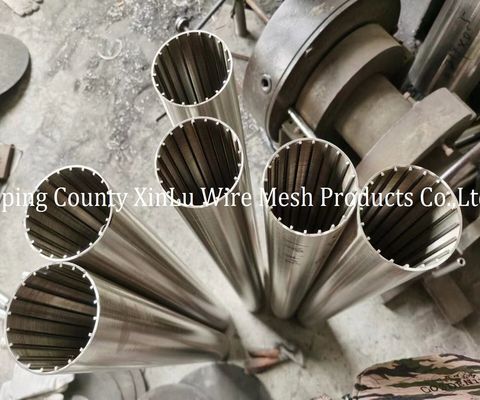

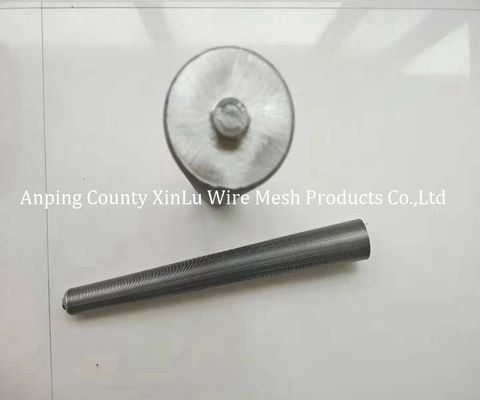

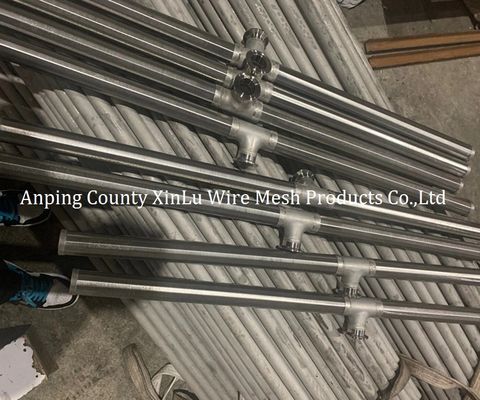

V Wire Wrapped Water Well Screen, Wedge Wire Wrapped Johnson well screen Tube Photos and production process:

Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 1Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 2

Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 3Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 4Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 5Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 6Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 7Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 8Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 9Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 10

Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 11Round 316L Stainless Steel Filter Element 30mm Slot Wedge Wire Pipe Non Magnetic 12
