Product Details:
|
Material: | SS304, 316L, 321, Duplex Stainless Steel, Hastelloy | Name: | Stainless Steel Double Head Water Filter Nozzle, ,wedge Wire Screen Nozzle, Johnson Strainer Nozzle |
---|---|---|---|
Diameter: | 82mm, Or Customized | End Connection: | Threaded M32 And Blind End Cap |
Slot: | 0.2mm | Flow Type: | FITO, FOTI |
Used: | Water Input Device, Water Distributor And Resin Trans | Application: | Filter, Filter, Mineral, Gas/oil/liquid Filtration, Industry |
Highlight: | 82mm Water Filter Nozzles,Johnson Water Filter Nozzles,DN Strainer Nozzle |

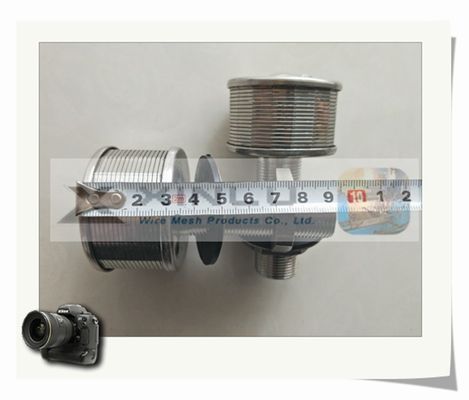

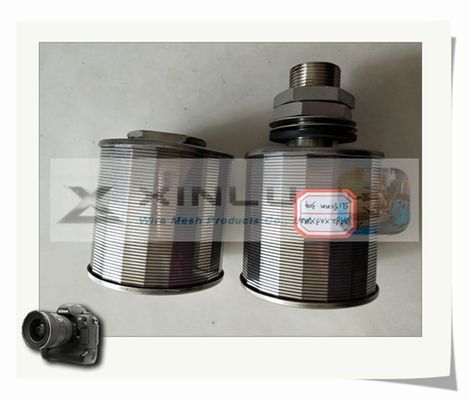

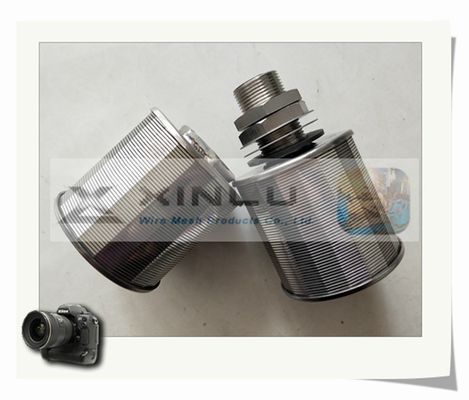

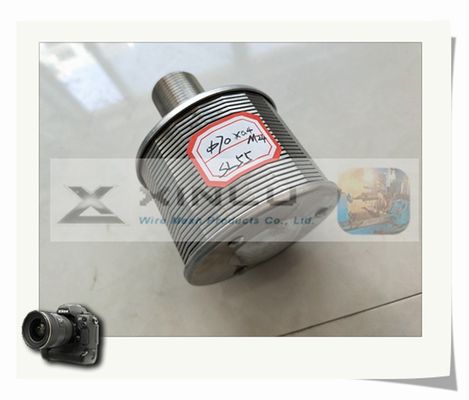

DN 82mm Stainless Steel Double Head Water Filter Nozzle, Johnson Strainer Nozzle
Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.
Water & Gas strainer nozzle (johnson type screen nozzles) are manufactured in accordance to customer flow requirements in almost any alloy. They can be designed for filtration or treatment systems to permit more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide rang of water treatment and other industrial applications. Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters. Strainers can also be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.The combination of high open area and a non-plugging slot design makes this nozzle /collector application popular.
Characteristic stainless steel water filter nozzle:
Stainless steel v / wedge - shaped wire water filter nozzle, usually with high quality stainless steel 304, 316L and other materials to ensure strong product structure and product bearing capacity.
Stainless Steel Wedge Wire Water Filter Strainer-Type DT, Water & Gas Strainer Nozzle Noraml Specification:
Filter Strainer-Type DT
Material: stainless steel 304, 316L, 321and other materials to ensure strong product structure and product bearing capacity.
Available in a variety of standard designs or can be customer designed to meet your requirement.
Note: All the length units are in millimeter.
No. | Model | Slot | Outline Dimension |
Open area (mm2) |
|||
D | H | L | M | ||||
1 | DT45-1-A | 0.25-0.5 | 45 | 30 | Available in customer design | M25 | 330 |
2 | DT45-1-B | 0.25-0.5 | 45 | 35 | M25 | 300 | |
3 | DT45-1-C | 0.25-0.5 | 45 | 40 | M25 | 450 | |
4 | DT45-1-D | 0.25-0.5 | 45 | 45 | M25 | 400 | |
5 | DT53-2-A | 0.25-0.5 | 53 | 30 | M25 | 400 | |
6 | DT53-2-B | 0.25-0.5 | 53 | 35 | M25 | 380 | |
7 | DT53-2-C | 0.25-0.5 | 53 | 45 | M32 | 680 | |
8 | DT57-3-A | 0.25-0.5 | 57 | 35-40 | M32 | 530 | |
9 | DT57-3-B | 0.25-0.5 | 57 | 50-55 | M32 | 700-750 |
PROFILE WIRE | ||||||||
WIDTH(mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
HEIGHT(mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
SUPPORT ROD | ROUND |
|||||
WIDTH(mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2.5--Ø6mm |
HEIGHT(mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | ---- |
Note:
1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.
Material: 304,321,316,316L,904L ,HastalloyB and C, ets
OEM service:
Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.
3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.
4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.
5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
