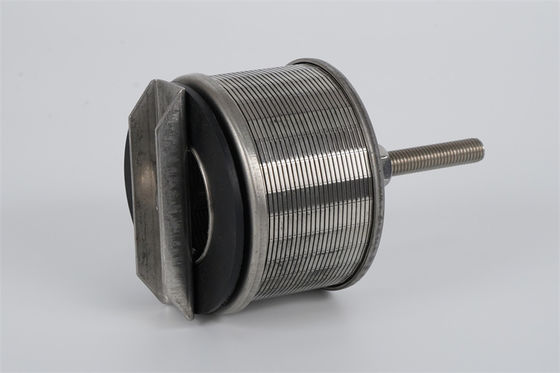

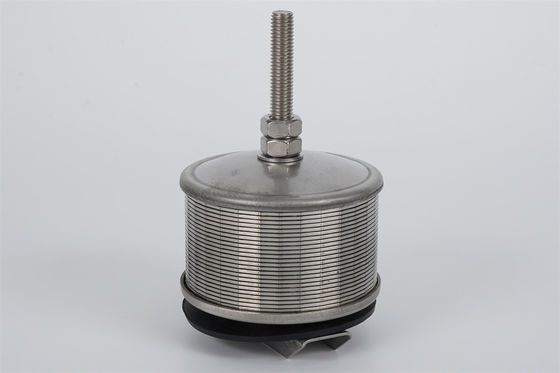

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle
82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle

Large Image :  82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Certification: CO
Model Number: XL - Water Filter Nozzle - 034
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable according to the specification
Packaging Details: wood case
Delivery Time: 8-10days
Payment Terms: T/T
Supply Ability: 1000pcs/20days

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle

Description
High Light Name: Water Filter Nozzle, Johnson Screen Nozzle, Wedge Wire Strainer Nozzle, Stainless Steel Filter Nozzle, Filter Bottom Nozzle Material: SS316L Or As Per Your Request Stainless Steel 304,316,Hastelloy, .
Diameter: 82mm, Or Customized End Connection: M10
Slot: 0.25mm (0.01") Weight: 0.3-0.5kg/pcs
Used: Water-treatment,beer Brewing,water Well Drilling ,oil Well Drilling ,mineral Processing, Coal-cleaning Plant, Refining & Petrochemical Tag: Npt Thread Nozzles, Water Screen Nozzle, Water Filter Nozzle, Johnson Screen Nozzle, Wedge Wire Strainer Nozzle, Stainless Steel Filter Nozzle
High Light:

Double Flow SS Johnson Screen Nozzle

,

82mm Johnson Screen Nozzle

,

Wedge Wire Filter False Bottom Nozzle

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire False Bottom Filter Nozzle



Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

The wedge wire nozzle features non-clogging, high filtering efficiency, and is economical. It has a wide range of applications in water treatment applications.

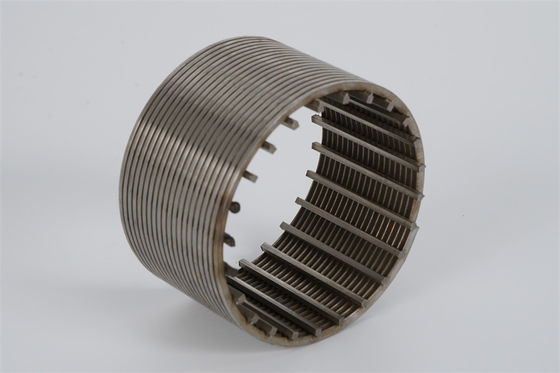

Wedge wire filter nozzles are made from V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with a unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.





Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle Types:
1. Single head filter nozzle
2. Double head filter nozzle

3. Long handle filter nozzle
4. Double flow filter nozzle
5. Flatwater filter nozzle, etc.

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 0

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 1



Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle



Material: Stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment), and other materials to ensure strong product structure and product bearing capacity.



Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)


Slot size: 0.04" - 0.3"


Diameter: 1" - 16"

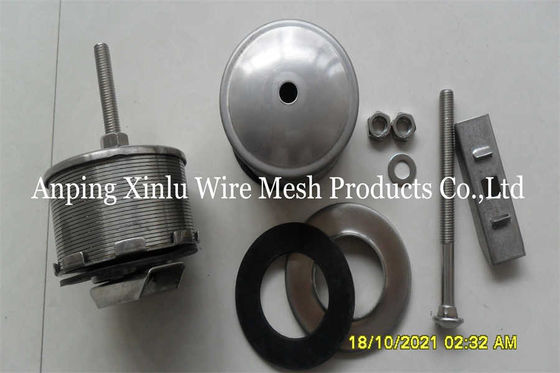

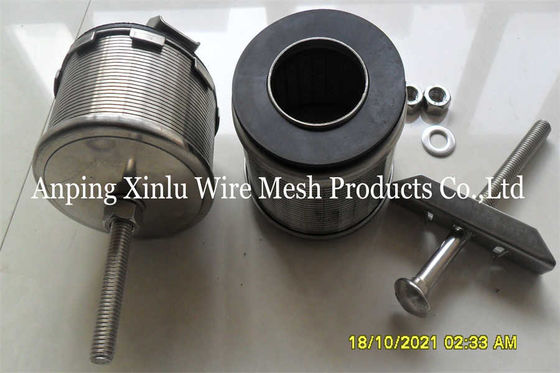

Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets



Application: Water distributor, tank, power plant, Water treatment, sand filter, water softening, desalination.



Available in a variety of standard designs or can be customer designed to meet your requirement.





82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 2



Note: All the length units are in millimeter.

No. Model Type Slot Dimension Open areas(mm2)
D L1 D1 L
1 CP82-DF1-A 0.25-0.5 82 50 50 130 1072-1300
2 CP82-SF1-A 0.25-0.5 82 50 50 130 551-690
3 CP82-SF1-B 1.02 82 50 50 130 1300
4 CP82-DF1-C 0.25-0.5 82 42 50 130 1020-1070
5 CP82-SF1-C 0.25-0.5 82 42 50 130 380-493
6 CP57-DF2-A 0.25-0.5 57 40 35 100 800
7 CP57-SF2-A 0.25-0.5 57 40 35 100 680
8 CP53-DF3-A 0.25-0.5 53 38 35 110 766
9 CP53-SF3-A 0.25-0.5 53 38 35 110 453-597
10 CP53-DF3-B 0.25-0.5 53 33 35 110 588
11 CP53-SF3-B 0.25-0.5 53 33 35 110 485
12 CP53-SF3-C 1.02 53 33 35 110 680-710

Note:1. One Nozzle with a rubber gasket, same material gasket andtwo thin nuts.

2. Available in customer design for perforated plate.
3. D: Filter outdiameter, L1: Filter Length, L: Overalength, M:threaded size

4. We can produce according to clients requirements.
Material: 304,321,316,316L,904L ,HastalloyB and C, ets

5. DF: double flow,  SF: single flow




Advantage of our 82mm Double Flow SS Johnson Screen Nozzle Wedge Wire False Bottom Filter Nozzle

Optimum structural strength for heavy loads
Minimal plugging and blinding
High pressure/pulsating pressure capability
Corrosive application suitability
Thermal resistance
Long-life — almost endless cleanability
Sterile application/food industry suitability
Low-pressure drop
High flow rate
We can supply all kinds of filter nozzles, and the material and size can be customed. We can design according to the actual application.



OEM service:

Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.

2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.

3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.

4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.

5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.



Why choose us ?

1. We are the professional manufacturer.

2. We can give you the best quality products with competitive price.

3. Professional sales team can give you feedback within 24 hours.

4. We offer 12 months excellent after-sale service.

5. We offer customized service.

6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.





82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 3

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 4

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 582mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 6

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 782mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 8

82mm Double Flow SS Johnson Screen Nozzle Wedge Wire Filter False Bottom Nozzle 9
