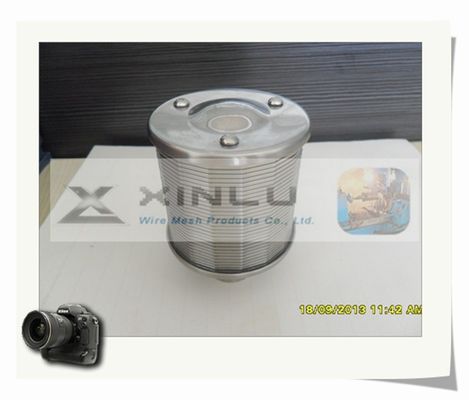

G3/4" Durable Sand Treatment Slot 0.25mm Wedge Wire Strainer, Sand Filter Nozzle
Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.
Durable Stainless Steel Filter Water Treatment Sand Filter Water Nozzle
Wedge wire screen filter nozzle with high strength and durability is mainly made of high quality stainless steel,including single wedge wire nozzle and double wedge wire nozzle. And the single wedge wire nozzle has plate type and long hand type for choice.
With high filtering efficiency, corrosion resistance, temperature resistance and easy installation, wedge wire nozzle has a wide range of water treatment and other industrial applications for filtering and screening.
Besides, several wedge wire nozzles can be used together as collectors at the bottom of vessels.
Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.
Feature:
They can be designed for filtration or treatment systems to permit the more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide range of water treatment and other industrial applications. they are economical, easily installed, and have several distinct design advantages
Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle Types:
1. Single head filter nozzle
2. Double head filter nozzle
3. Long handle filter nozzle
4. Double flow filter nozzle
5. Flatwater filter nozzle, etc.
Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle
Material: Stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment), and other materials to ensure strong product structure and product bearing capacity.
Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)
Slot size: 0.04" - 0.3"
Diameter: 1" - 16"
Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets
Application: Water distributor, tank, power plant, Water treatment, sand filter, water softening, desalination.
Available in a variety of standard designs or can be customer designed to meet your requirement.
Note: All the length units are in millimeter.
| Model |
Slot Opening Size |
Dimensions |
Flow area with 0.2mm slot opening (mm2) |
| |
|
D |
L1 |
L |
M |
|
| FY-XL-DT-45-A |
0.2-0.5 |
45 |
25 |
90 |
25 |
280 |
| FY-XL-DT-45-B |
0.2-0.5 |
45 |
35 |
100 |
25 |
380 |
| FY-XL-DT-45-C |
0.2-0.5 |
45 |
45 |
110 |
25 |
550 |
| FY-XL-DT-45-D |
0.2-0.5 |
45 |
35 |
55 |
25 |
380 |
| FY-XL-DT-45-E |
0.2-0.5 |
45 |
45 |
65 |
25 |
550 |
| FY-XL-DT-53-A |
0.2-0.5 |
53 |
35 |
100 |
25 |
450 |
| FY-XL-DT-53-B |
0.2-0.5 |
53 |
45 |
110 |
25 |
580 |
| FY-XL-DT-53-C |
0.2-0.5 |
53 |
55 |
120 |
32 |
700 |
| FY-XL-DT-57-A |
0.2-0.5 |
57 |
35 |
100 |
32 |
530 |
| FY-XL-DT-57-B |
0.2-0.5 |
57 |
45 |
110 |
32 |
680 |
| FY-XL-DT-57-C |
0.2-0.5 |
57 |
55 |
120 |
32 |
830 |
| FY-XL-DT-70-A |
0.2-0.5 |
70 |
40 |
105 |
32 |
650 |
| FY-XL-DT-70-B |
0.2-0.5 |
70 |
55 |
115 |
32 |
810 |
Note:
1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.
Material: 304,321,316,316L,904L ,HastalloyB and C, ets
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Benefits:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
OEM service:
Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.
3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.

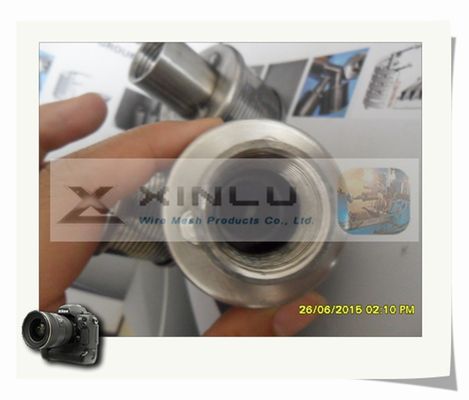

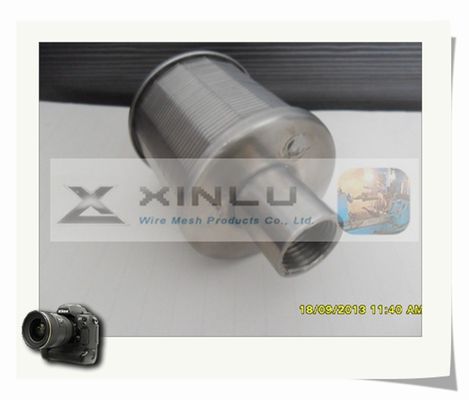

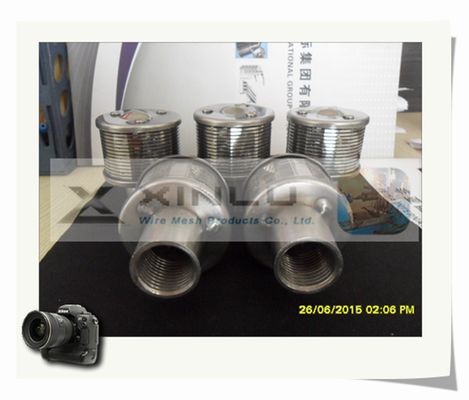

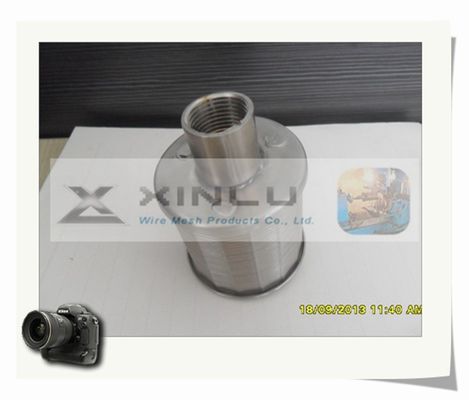

4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.
5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.
