Flow Rate 1.5Ton Wire Wrapped Strainer Nozzle, Water Filter Nozzle Threaded M32
Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.
Characteristic stainless steel water filter nozzle:
Stainless steel v / wedge - shaped wire water filter nozzle, usually with high quality stainless steel 304, 316L and other materials to ensure strong product structure and product bearing capacity.
Wedge Wire Water Filter Nozzle Parameters:

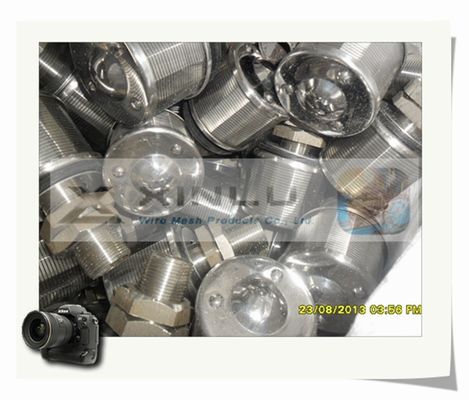

Metal wedge wire water filter nozzle is formed by welding wire(cross section is wedge)through a special welding technology welded on the support wire, use Special equipment for resistance welding, high welding strength, uniform gap, strong corrosion resistance, effective filter area, high penetration efficiency, simple structure, minimum aperture 25μm, arbitrarily chosen by the customer.
| No. |
Model Type |
D |
L |
H |
Slot
(MM)
|
Threaded |
Slot 0.2-0.25
open areas mm2
|
| FYN1 |
XL45-1-A |
45 |
80 |
25 |
0.2-0.5 |
M25 |
280 |
| FYN2 |
XL45-1-B |
45 |
90 |
35 |
0.2-0.5 |
M25 |
390 |
| FYN3 |
XL45-1-C |
45 |
98 |
34 |
0.2-0.5 |
M20 |
380-493 |
| FYN4 |
XL45-1-D |
45 |
100 |
45 |
0.2-0.5 |
M25 |
500 |
| FYN5 |
XL45-1-E |
45 |
100 |
34 |
0.2-0.5 |
M24 |
551-690 |
| FYN6 |
XL45-1-F |
45 |
110 |
45 |
0.2-0.5 |
M25 |
550 |
| FYN7 |
XL45-1-G |
45 |
55 |
35 |
0.2-0.5 |
M25 |
380 |
| FYN8 |
XL45-1-H |
45 |
65 |
45 |
0.2-0.5 |
M25 |
550 |
| FYN9 |
XL53-2-A |
53 |
90 |
35 |
0.2-0.5 |
M25 |
450 |
| FYN10 |
XL53-2-B |
53 |
100 |
34 |
0.2-0.5 |
M24 |
453-597 |
| FYN11 |
XL53-2-C |
53 |
100 |
45 |
0.2-0.5 |
M25 |
570 |
| FYN12 |
XL53-2-D |
53 |
100 |
50 |
0.2-0.5 |
M27 |
680-710 |
| FYN13 |
XL53-2-E |
53 |
105 |
34 |
0.2-0.5 |
M32 |
800-920 |
| FYN14 |
XL53-2-F |
53 |
110 |
45 |
0.2-0.5 |
M25 |
580 |
| FYN15 |
XL53-2-G |
53 |
110 |
50 |
0.2-0.5 |
M32 |
700 |
| FYN16 |
XL53-2-H |
53 |
120 |
55 |
0.2-0.5 |
M32 |
700 |
| FYN17 |
XL57-3-A |
57 |
100 |
35 |
0.2-0.5 |
M32 |
530 |
| FYN18 |
XL57-3-B |
57 |
110 |
45 |
0.2-0.5 |
M32 |
600-680 |
| FYN19 |
XL57-3-C |
57 |
115 |
35 |
0.2-0.5 |
M30 |
560-670 |
| FYN20 |
XL57-3-D |
57 |
120 |
55 |
0.2-0.5 |
M32 |
800-905 |
| FYN21 |
XL60-4-A |
60 |
120 |
55 |
0.2-0.5 |
G1″ |
905-1100 |
| FYN22 |
XL70-5-A |
70 |
105 |
40 |
0.2-0.5 |
M32 |
650 |
| FYN23 |
XL70-5-B |
70 |
110 |
45 |
0.2-0.5 |
M32 |
800 |
| FYN24 |
XL70-5-C |
70 |
115 |
50 |
0.2-0.5 |
M32 |
810 |
| FYN25 |
XL70-5-D |
70 |
120 |
55 |
0.2-0.5 |
M32 |
1000 |
| FYN26 |
XL82-6-A |
82 |
120 |
60 |
0.2-0.5 |
G2″/M42 |
|
Note:
1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.
4. Material:304,321,316,316L,904L ,HastalloyB and C, ets
Wedge Wire Water Filter Nozzle Advantages
- Optimum Structural Strength: Designed for heavy loads, ensuring durability and reliability.
- Minimal Plugging and Blinding: Reduces the risk of blockages, maintaining consistent performance.
- High Pressure Capability: Suitable for high and pulsating pressure applications.
- Corrosion Resistance: Ideal for corrosive environments, extending product lifespan.
- Thermal Resistance: Performs well under high-temperature conditions.
- Long-Life and Cleanability: Features an almost endless cleanability, reducing maintenance needs.
- Sterile and Food Industry Suitable: Meets the stringent requirements of sterile applications and the food industry.
- Low Pressure Drop: Ensures efficient flow with minimal energy loss.
- High Flow Rate: Delivers high flow rates for optimal filtration performance.
Customization Options
We can supply all kinds of filter nozzles, with customizable materials and sizes to meet your specific needs.
Applications
- Rapid and gravity sand filters
- Activated carbon vessels
- Demineralizers/water softeners filters
- Ion exchange columns
- Collectors and distributors
- Water distributors
- Tanks
- Power plants
Stainless Steel Wedge Wire Water Filter Nozzle Characteristics
- Strong and Durable: Designed for a long service life.
- Even Gaps: Prevents resin leakage and material loss.
- High Opening Rate: Meets the requirements of large flow applications.
- Versatile Structure: Adaptable to various design specifications.
OEM Service
We provide tailored OEM services to meet your specifications:
| Specification |
Details |
| Material |
Stainless steel 304, 316L, 321, Hastelloy B, C, etc. |
| Outer Diameter |
38mm, 45mm, 53mm, 57mm, 70mm, 82mm |
| Slot Size |
0.2mm-0.5mm (±0.03mm tolerance) |
| Type |
Female thread (G3/4", G1"), male threaded (M24 or M32), no thread, long handle, single velocity, double velocity, etc. |
| Length |
30mm, 45mm, 50mm, 100mm, 130mm, 150mm, or custom lengths |
Why Choose Us?
- Professional Manufacturer: Specialized in producing high-quality filtration products.
- Competitive Pricing: Offer the best quality at competitive prices.
- Prompt Feedback: Professional sales team provides feedback within 24 hours.
- Excellent After-Sale Service: 12 months of after-sale support.
- Customized Service: Tailored solutions to meet your specific requirements.
- 24/7 Availability: Available around the clock for your convenience.
Choose our Wedge Wire Water Filter Nozzle for efficient and reliable filtration solutions. Contact us today to discuss your requirements and place your order.
