Customized 304 316L Stainless Steel Filter Johnson Sieve Tube Backflushing
Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.
Stainless Steel Filtration Solutions
Our comprehensive range includes Johnson screen nozzles, water and gas strainer nozzles, stainless steel filter nozzles, filter candles, lateral arms, wedge wire lateral pipes, and changeable filter elements. These components are integral to enhancing water input devices, distributors, and other critical systems.

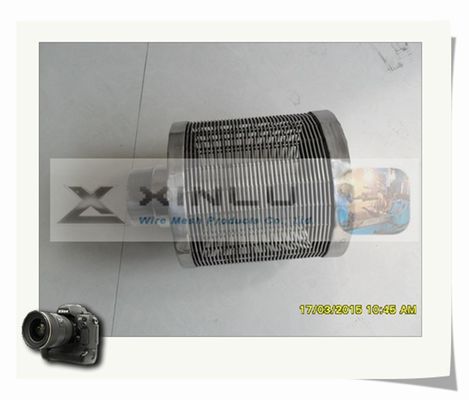

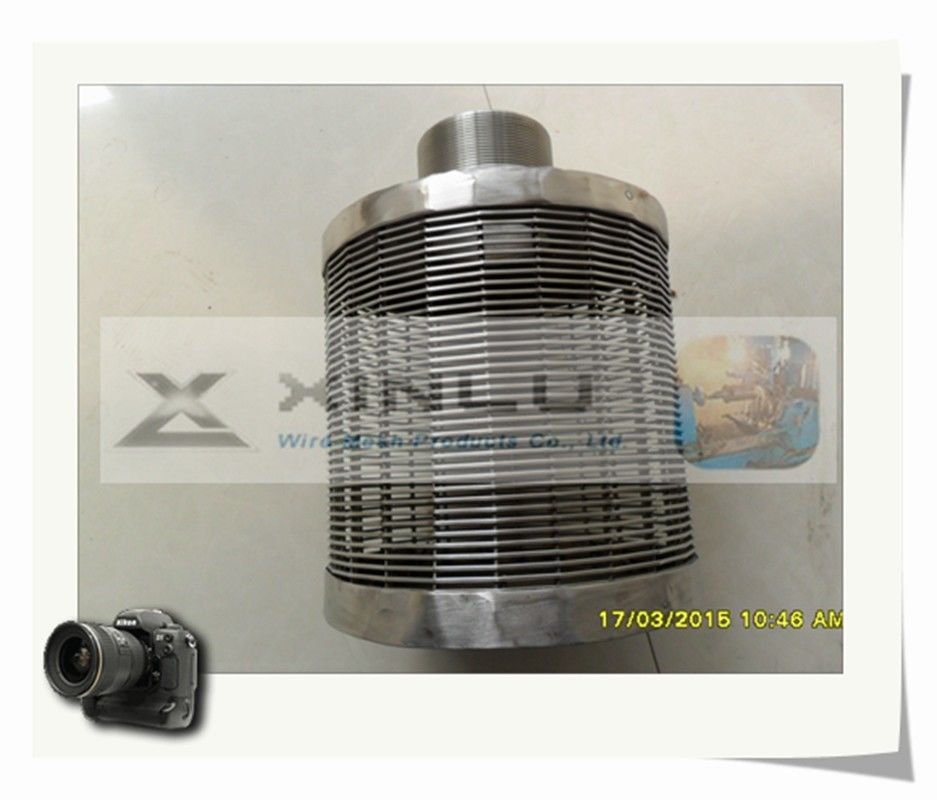

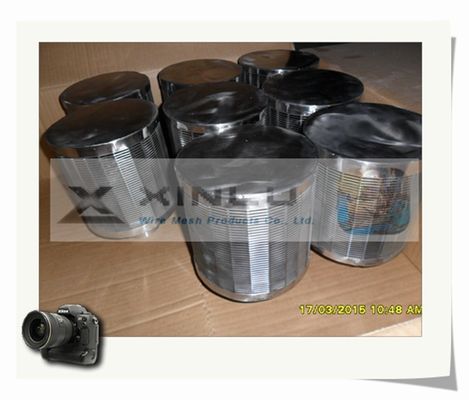

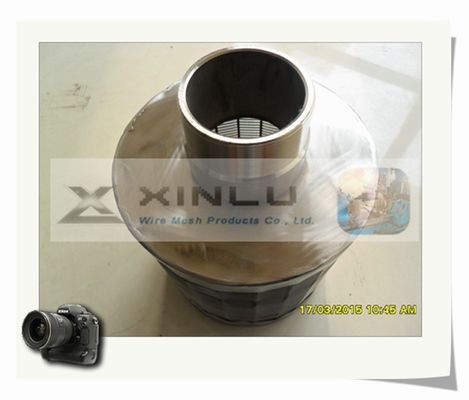

Characteristics of Stainless Steel Water Filter Nozzles
Our wedge wire filter nozzles are meticulously crafted by welding profile wires (with a wedge-shaped cross-section) onto support wires using advanced welding techniques. This process ensures high welding strength, uniform gaps, strong corrosion resistance, and a large effective filter area. The result is a high penetration efficiency, a simple structure, and a minimum aperture of 25μm, which can be customized to meet your specific requirements.
Applications
These nozzles are particularly well-suited for fluids containing wax, asphalt, and high viscosity substances. They are widely used in the coarse and fine filtration of water treatment in oil wells, gas wells, chemical, mining, papermaking, environmental protection, metallurgy, food, sand, and decorative industries.
Materials
- 304 (0Cr18Ni9)
- 321 (1Cr18Ni9Ti)
- 316L (00Cr17Ni14Mo2)
- Hastelloy B and C
Features
- High mechanical strength to withstand greater pressure.
- Uniform apertures that form an even filter cake, facilitating effective backwash regeneration.
- Wedge-shaped filter gaps improve backwash regeneration capabilities.
- Designed for high pressure, high temperature, anti-aging, and corrosion resistance, suitable for various liquid types.
- Almost two-dimensional filtration with no particle accumulation, allowing for efficient energy gathering during backwash for optimal results.
Specifications
- Filter Layer Standard: Around-welded stainless steel sieve tube (SY5182-87).
- Outside Diameter (mm): 25.4, 33, 38, 50, 57, 76, 89, 105, 117, 130, 850; custom sizes available upon request.
| No. |
Model Type |
D |
L |
H |
Slot
(MM)
|
Threaded |
Slot 0.2-0.25
open areas mm2
|
| FYN1 |
XL45-1-A |
45 |
80 |
25 |
0.2-0.5 |
M25 |
280 |
| FYN2 |
XL45-1-B |
45 |
90 |
35 |
0.2-0.5 |
M25 |
390 |
| FYN3 |
XL45-1-C |
45 |
98 |
34 |
0.2-0.5 |
M20 |
380-493 |
| FYN4 |
XL45-1-D |
45 |
100 |
45 |
0.2-0.5 |
M25 |
500 |
| FYN5 |
XL45-1-E |
45 |
100 |
34 |
0.2-0.5 |
M24 |
551-690 |
| FYN6 |
XL45-1-F |
45 |
110 |
45 |
0.2-0.5 |
M25 |
550 |
| FYN7 |
XL45-1-G |
45 |
55 |
35 |
0.2-0.5 |
M25 |
380 |
| FYN8 |
XL45-1-H |
45 |
65 |
45 |
0.2-0.5 |
M25 |
550 |
| FYN9 |
XL53-2-A |
53 |
90 |
35 |
0.2-0.5 |
M25 |
450 |
| FYN10 |
XL53-2-B |
53 |
100 |
34 |
0.2-0.5 |
M24 |
453-597 |
| FYN11 |
XL53-2-C |
53 |
100 |
45 |
0.2-0.5 |
M25 |
570 |
| FYN12 |
XL53-2-D |
53 |
100 |
50 |
0.2-0.5 |
M27 |
680-710 |
| FYN13 |
XL53-2-E |
53 |
105 |
34 |
0.2-0.5 |
M32 |
800-920 |
| FYN14 |
XL53-2-F |
53 |
110 |
45 |
0.2-0.5 |
M25 |
580 |
| FYN15 |
XL53-2-G |
53 |
110 |
50 |
0.2-0.5 |
M32 |
700 |
| FYN16 |
XL53-2-H |
53 |
120 |
55 |
0.2-0.5 |
M32 |
700 |
| FYN17 |
XL57-3-A |
57 |
100 |
35 |
0.2-0.5 |
M32 |
530 |
| FYN18 |
XL57-3-B |
57 |
110 |
45 |
0.2-0.5 |
M32 |
600-680 |
| FYN19 |
XL57-3-C |
57 |
115 |
35 |
0.2-0.5 |
M30 |
560-670 |
| FYN20 |
XL57-3-D |
57 |
120 |
55 |
0.2-0.5 |
M32 |
800-905 |
| FYN21 |
XL60-4-A |
60 |
120 |
55 |
0.2-0.5 |
G1″ |
905-1100 |
| FYN22 |
XL70-5-A |
70 |
105 |
40 |
0.2-0.5 |
M32 |
650 |
| FYN23 |
XL70-5-B |
70 |
110 |
45 |
0.2-0.5 |
M32 |
800 |
| FYN24 |
XL70-5-C |
70 |
115 |
50 |
0.2-0.5 |
M32 |
810 |
| FYN25 |
XL70-5-D |
70 |
120 |
55 |
0.2-0.5 |
M32 |
1000 |
| FYN26 |
XL82-6-A |
82 |
120 |
60 |
0.2-0.5 |
G2″/M42 |
|
Note:
1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.
4. Material:304,321,316,316L,904L ,HastalloyB and C, ets
Applications of Wedge Wire Water Filter Nozzles
- Rapid and gravity sand filters
- Activated carbon vessels
- Demineralizers/water softeners filters
- Ion exchange columns
- Collectors and distributors
- Water distributors
- Tanks
- Power plants
Characteristics
- Strong and durable, ensuring a long service life.
- Even gaps prevent resin leakage and material loss.
- High opening rate to accommodate large flow requirements.
- Versatile structure to meet various design specifications.
OEM Service
We are committed to providing tailored solutions to meet your unique needs. Simply provide us with your specifications, and we will deliver high-quality products. Our offerings include:
- Materials: Primarily stainless steel 304, 316L, 321, Hastelloy B, C, and other materials.
- Outer Diameter: Standard sizes include 38mm, 45mm, 53mm, 57mm, 70mm, 82mm, with customization options available.
- Slot: Typically 0.2mm-0.5mm, with a tolerance of +0.03mm, adjustable according to customer needs.
- Type: Female thread (G3/4", G1"), male threaded (M24 or M32), no thread, long handle, single velocity, double velocity, etc.
- Length: Standard lengths include 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, with customization options available.
Why Choose Us?
- Expertise: We are a professional manufacturer with extensive experience in the industry.
- Quality and Price: We offer top-tier products at competitive prices.
- Responsive Service: Our dedicated sales team provides feedback within 24 hours.
- After-Sale Support: We offer 12 months of excellent after-sale service.
- Customization: We provide customized solutions to fit your unique requirements.
- Availability: Our service is available 24/7, ensuring continuous support.
