Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number: XL - Wedge Wire Screen Panel - 019
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 80-160usd/m2, Negotiable according to the specification
Packaging Details: wood case, pallet
Delivery Time: 6-8days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300m2/month

SS Aisi 304 1mm Slot Flat Wedge Wire Screen Panel Johnson Grating Filter Plate

Description
Product Name: Johnson Flat Panel Wedge Wire Screen Grating Filter Plate Slot: 0.3-2mm
Width: 500mm, Customize Size, Up To 1.3m Material: Stainless Steel 304L, 304 316L Wedge Wire 316
Profile Wire Size: 3x4.6mm, 3x5mm, 3.2x5.5mm, 3x6mm, 3.70x5.60mm, 3.30x6.30mm Usage: Liquid Filter, Solid Filter, Welded Wedge Wire Candle Filter, Kinds Filtration Industry, Water Filed Or Oil Filed
Type: Filter Elements, Filter Cylinder, Filter Disc, Flat Screen, Wire Wrapped Well Screen Cylinders / Wedge Wire Panels Tag: Wedge Wire Screen Panels,wedge Wire Flat Screen,wedge Wire Screen Panel, Johnson Screen Panel,
High Light:

Flat Wedge Wire Screen Panel

,

Aisi 304 Wedge Wire Screen Panel

,

1mm Slot Wedge Wire Screen Panel



Ss Aisi 304 1mm Slot Johnson Flat Panel Wedge Wire Screen Grating Filter Plate

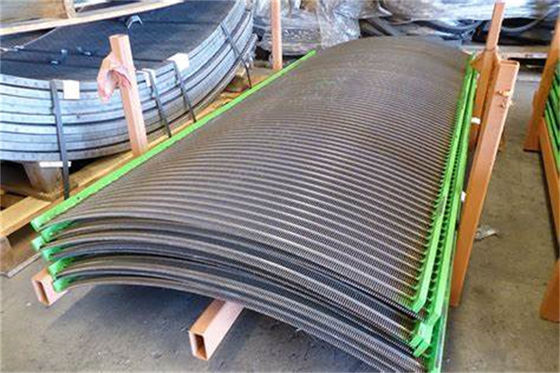

Produce Name: wire wrapped panel, Johnson Screen plate, flat wedge wire panel with frame, Johnson screen flat panel, flat panel screens, sieve bend, arc screen, slot wire screen plate, stainless steel wire sieve, sieving wire mesh, wide slit screens, vibrating sieve screen



Johnson V Shape Wire Slot Flat Panel, Wedge Wire Screen Grating, Filter Plate For Solid-liquid separation Product Description:

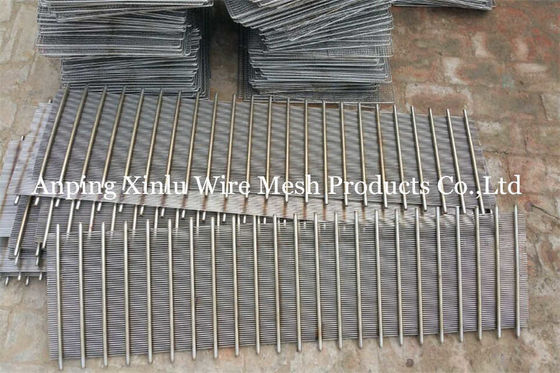

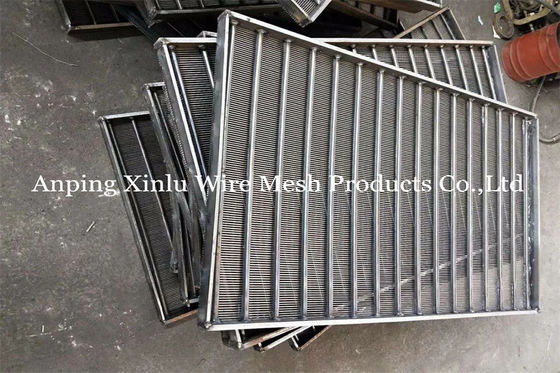

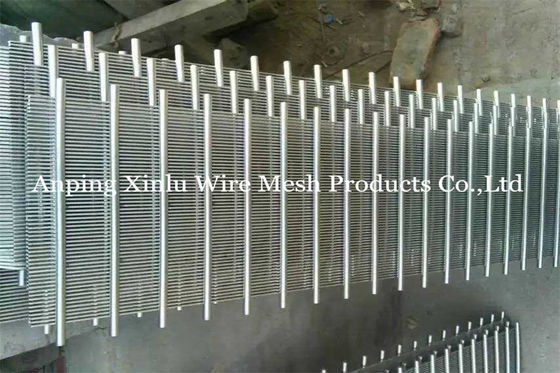

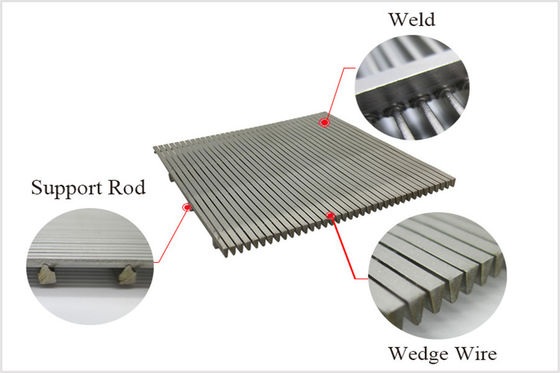

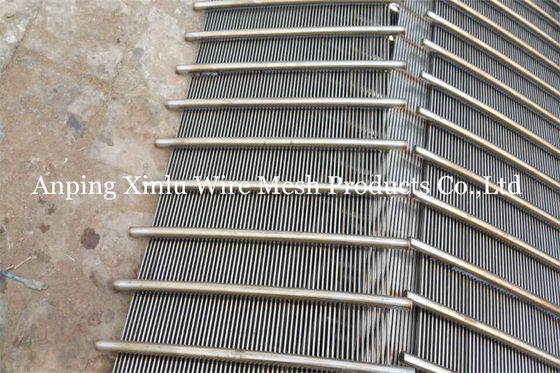

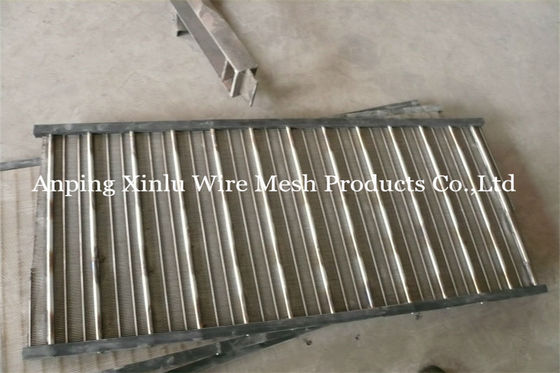

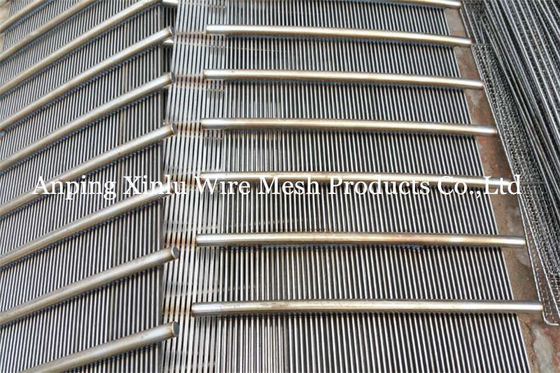

Johnson V Shape Wire Slot Flat Panel, Wedge Wire Screen Grating, Filter Plate For Solid-liquid separation is welded by V wire and support rod.There is a fixed value slot between each v wire. The support rod can be round wire can also be a triangular or trapezoidal shape, wedge wire is triangular wire , the wedge shape wire make the gap opening one end small and the other end large, it is not easy to jam.This product is processed by advanced fusion welding technology, with high strength, rigidity and bearing capacity, which can be used to make rigid sieving filters of various shapes.The slot size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable.





Johnson V Shape Wire Slot Flat Panel, Wedge Wire Screen Grating, Filter Plate Advantages:



Johnson V Shape Wire Slot Flat Panel, Wedge Wire Screen Grating, Filter Plate For Solid-liquid separation

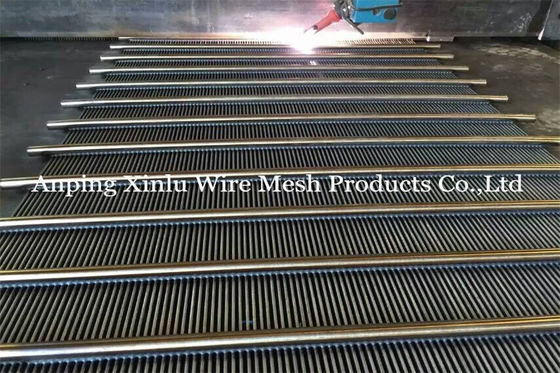

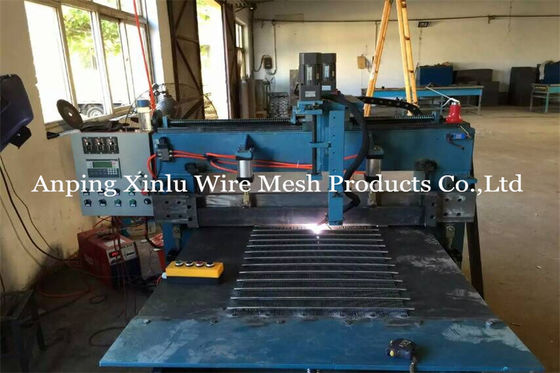

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.



Industry:



Johnson V Shape Wire Slot Flat Panel, Wedge Wire Screen Grating, Filter Plate For Solid-liquid separation are mainly used for screening filter coal mine, coal products, such as iron ore, sandstone can also be used for food, oil, water and other solid liquid filter, mainly used in coal mine, coal washing, food, is a manufacturing and other industries, can also be used to decorate the breeding, etc.



Uses of Johnson V Shape Wire Slot Flat Panel, Wedge Wire Screen Grating, Filter Plate :



Use in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.



Johnson V Shape Wire Slot Flat Panel, Wedge Wire Screen Grating, Filter Plate Specification:

Material:stainless steel 304,316,316L
Slot size(Opening):0.3-10mm or customer's requirement
Support Rods pitch: 45mm or customer's requirement
Wedge wire size:3x4.6mm, 3x6mm or others
Support Rods size:round wire 6-12mm or others

Panel width: up to 90 mm.
Panel length:up to 1300 mm.



PROFILE WIRE
WIDTH(mm) 3 3 3.2 3 3.70 3.30
HEIGHT(mm) 4.6 5 5.5 6 5.60 6.30



SUPPORT ROD
Round (mm) Ø6--Ø12mm
Slot(mm) 0.3-2mm
Width 90cm, up to 1m
Length 130cm, up to 2m

FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



SS Aisi 304 1mm Slot Flat Wedge Wire Screen Panel Johnson Grating Filter Plate 0SS Aisi 304 1mm Slot Flat Wedge Wire Screen Panel Johnson Grating Filter Plate 1SS Aisi 304 1mm Slot Flat Wedge Wire Screen Panel Johnson Grating Filter Plate 2SS Aisi 304 1mm Slot Flat Wedge Wire Screen Panel Johnson Grating Filter Plate 3



---------------------------------------------------------------------------------------------------------------



Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
