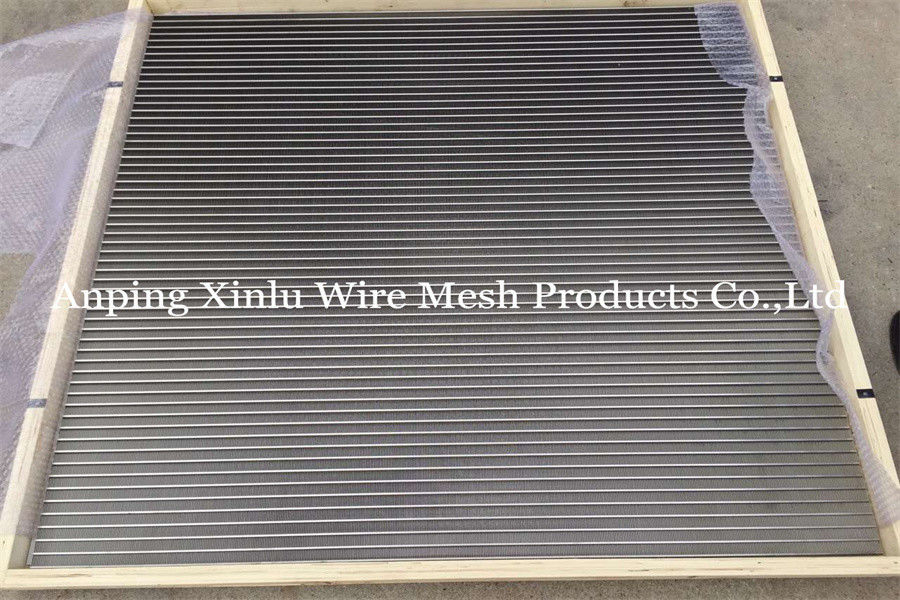

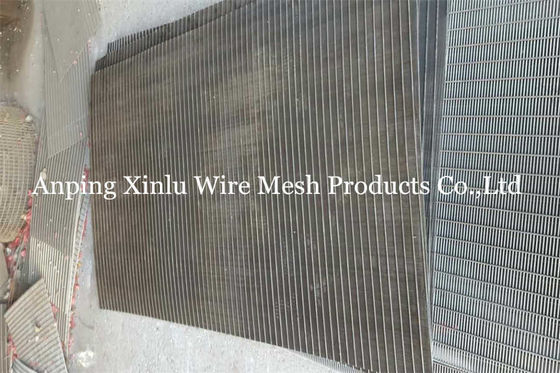

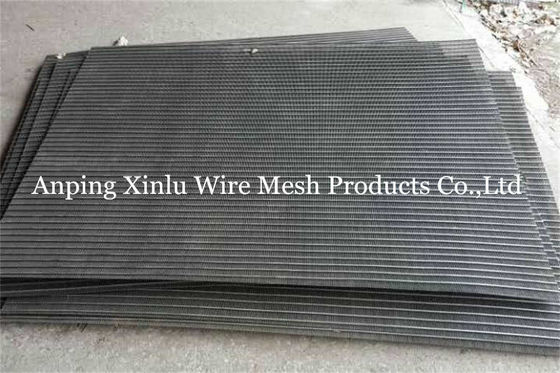

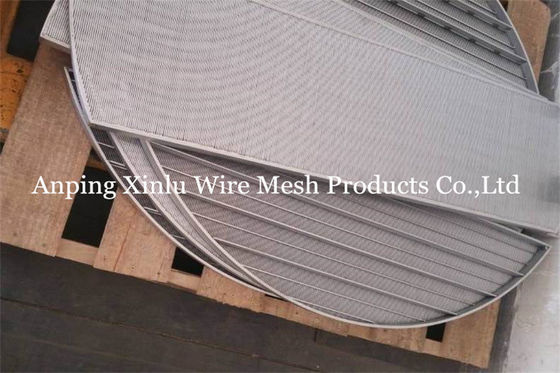

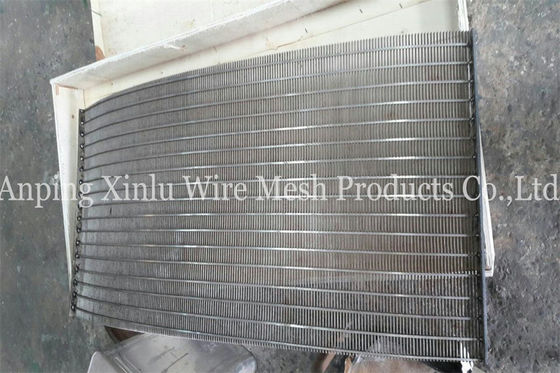

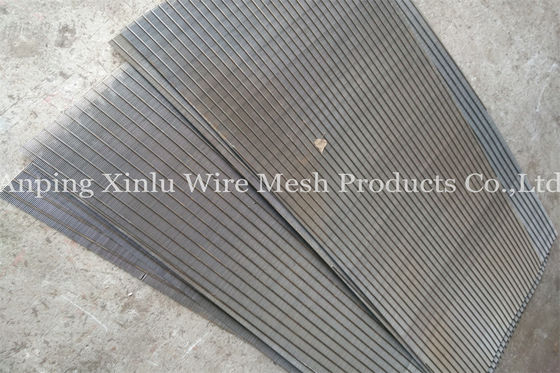

Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding

Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding
Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding

Large Image :  Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding

Product Details:
Place of Origin: Anping County, Hebei Province, China
Brand Name: Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number: XL - Wedge Wire Screen Panel - 020
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 80-160usd/m2, Negotiable according to the specification
Packaging Details: wood case, pallet
Delivery Time: 6-8days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300m2/month

Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding

Description
Name: Stainless Steel Slotted Vee Wedge Wire Screen Panels Electric Resistance Welding Grate: Stainless Steel 304L, 304 316L Wedge Wire 316
Surface Treatment: Acid Washing Wire Size: 2.2x3.5mm
Support: 2.5x4mm Usage: Liquid Filter, Solid Filter, Welded Wedge Wire Candle Filter, Kinds Filtration Industry, Water Filed Or Oil Filed
Type: Filter Elements, Filter Cylinder, Filter Disc, Flat Screen, Wire Wrapped Well Screen Cylinders / Wedge Wire Panels Tag: 304 Ss Wedge Wire Screen Panels, Slotted Vee Wedge Wire Screen Panels, Electric Resistance Welding Wedge Wire Panels
High Light:

Slotted Vee Wedge Wire Screen Panel

,

Stainless Steel Wedge Wire Screen Panel

,

316L Wedge Wire Screen Panel



Stainless Steel Slotted Vee Wedge Wire Screen Panels Electric Resistance Welding





Produce Name: wire wrapped panel, Johnson Screen plate, flat wedge wire panel with frame, Johnson screen flat panel, flat panel screens, sieve bend, arc screen, slot wire screen plate, stainless steel wire sieve, sieving wire mesh, wide slit screens, vibrating sieve screen



Stainless Steel Slotted Vee Wedge Wire Mesh Screen Flat Panels



What is Wire Screen Flat Panel?



Slotted Vee Wedge Wire Mesh Screen Flat Panels are produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.



Slotted Vee Wedge Wire Mesh Screen Flat Panels are characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.



The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.



Slotted Vee Wedge Wire Screen Flat Panels Advantage:



​1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.



2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.



3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.



4.High-precision slot opening: Minimum Slot opening is 20 microns.



Flat Welded Wedge Wire Screen Panel Applications :



Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

petroleum

chemical

pharmaceutical

water treatment

environmental protection

paint & inks

pulp & paper

food & light industries



PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----





FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding 0Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding 1Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding 2Stainless Steel Slotted Vee Wedge Wire Screen Panel Electric Resistance Welding 3



---------------------------------------------------------------------------------------------------------------



Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
