3" V Wire Wrap Johnson Water Well Screen Pipe With Smooth Filtration Surface

Description
Product Name: 3" V Wire Wrap Johnson Water Screen Pipe Material: Stainless Steel 304, Or 205, 304L, 316L ,321, Duplex Stainless Steel, Etc.
Diameter: 76mm Weave Style: Wedge Wire Wrapped
End Connection: Threaded NPT,PT, BSP V / Wedge Wire: #63, #93, #118, #121,#130
Advantage: Non-magnetic, Anti-corrosion, Non-clogging,Easy Installation Apply For: Water Well, Oil Well Drilling, Water Treatment, Filter, Mineral, Gas /oil Filtration, Industry, Food,etc
High Light:

V Wire Water Well Screen Pipe

,

3" Water Well Screen Pipe

,

Smooth Filtration Water Well Screen Pipe

3" V Wire Wrap Johnson Water Screen Pipe With Smooth Filtration Surface



stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.



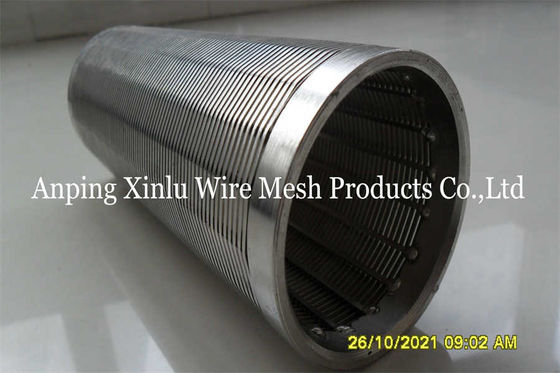

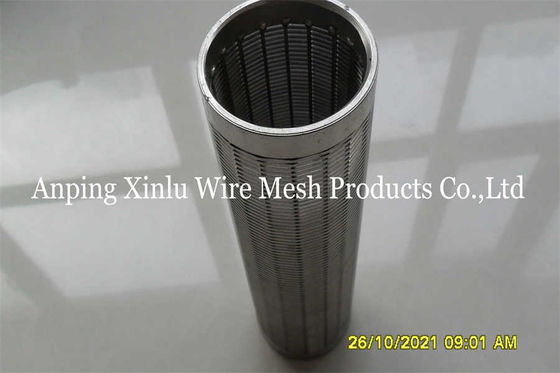

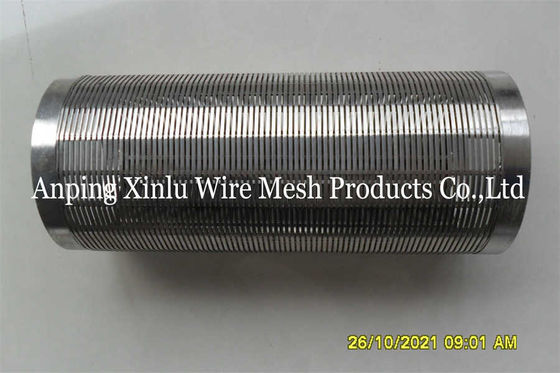

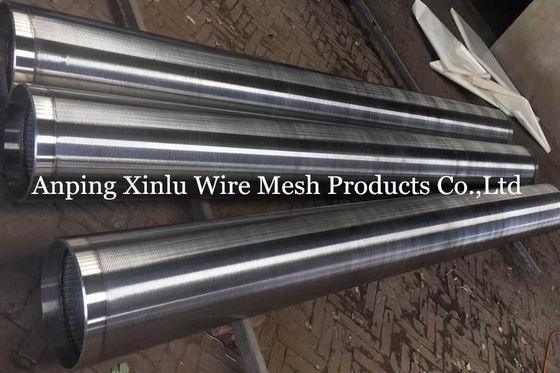

V Wire Wrap Johnson Water Screen Pipe

Wedge Wire Screen is widely used throughout the world for water, oil & gas wells, and is the dominant screen type used in the water well industry.

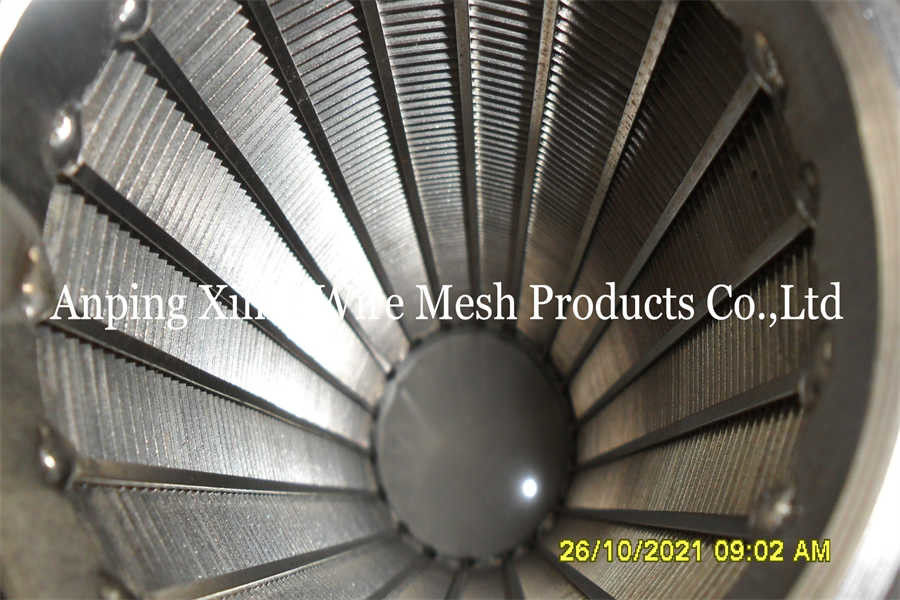

The welded stainless steel wire wrap screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of wedge wire screen has a structure and high open area, as well as accurate slot dimension. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights. Slot opening for screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burrs and cuttings. Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface. The V-shaped openings designed to be non-clogging, narrowest at the outer face and widen inwardly.

Wedge Wire Screen can be used in both Gravel Pack and Stand Alone Screen (direct retention) applications. Screens are available in a range of sizes and specifications, including outside diameter, material type, the geometry and dimension of the screen slots, and so on.


Features & Benefits

1. V-Shaped Slots — Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

2. Very Large Open Area — This design gives continuous slot and hence the open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

3. Better Sand Filtration — Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.

4. Low maintenance costs — Separation at the screen surface which can easily cleaned by scraping or back washing.

5. Maximum process output — Precise and continuous slot openings resulting in accurate separation without loss off media.

6. Energy Saving — Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

7. Chemical and thermal resistant — A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly. Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.


Applications
Vertical oil & gas well and water wells



Slot: form 0.1mm, tolerances: ± 0.05mm.
Maximum length: 6000 mm.
Diameter: from 25 mm to 1200 mm.
Material: Low Carbon, Low Carbon Galvanized steel (LCG), Stainless Steel ( 304, 304L, 316, 316L, etc.).
End Connection :Plain beveled ends for butt welding or threaded.



V Wire Wrap Johnson Water Screen Pipe Specification

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3x3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3x3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2x6.0 6.0MM/32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3x3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2x6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3x3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2x6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0x5.0 4.0MM/59





Package of the water well steel slotted screen pipe:


Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside

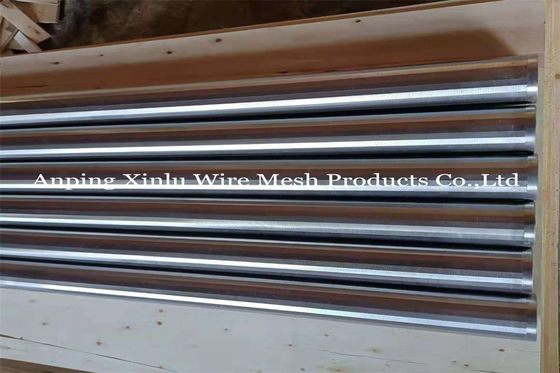

Wooden box
Pallet




Advantages of V / Wedge Wire Screen Pipe:



Non-clogging capabilities

Self supporting

High abreaction resistance

Large open area

Better sand filtration

Energy saving

Lowest possible cost

Long using life

Maximum flow capacity


Use:



water well

Juice

Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Groundwater

Pump Filter

Motor Filter

Dewatering

Pharmaceutical

Waste water treatment





OEM service:


We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet

---------------------------------------------------------------------------------------------------------------



Anping XinLu wire mesh products co.,ltd, it is a manufacturer and exporter of wedge wire screen products.

-----------------------------------------------------------------------------------------------------------------------------------------------

FAQ



Q: Are you trading company or manufacturer?

A: We are manufacturer.



Q: To quote,what’s information needed?

A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.



Q: How long is your delivery time?

A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.



Q: Could you provide free sample?

A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.



Q: What is your terms of payment?

A: 30% T/T as deposit,the balance before shipment.



Q: How to confirm the quality about your products?

A: During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.



Q: How do you make our business long-term and good relationship?

A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
