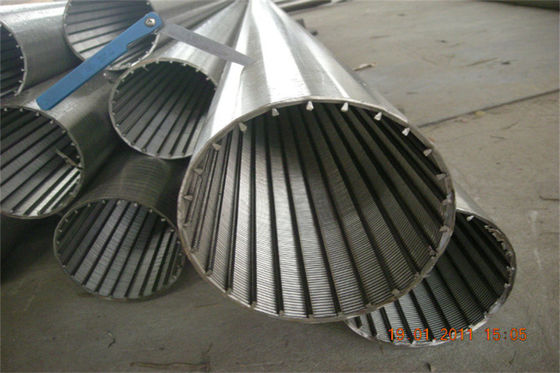

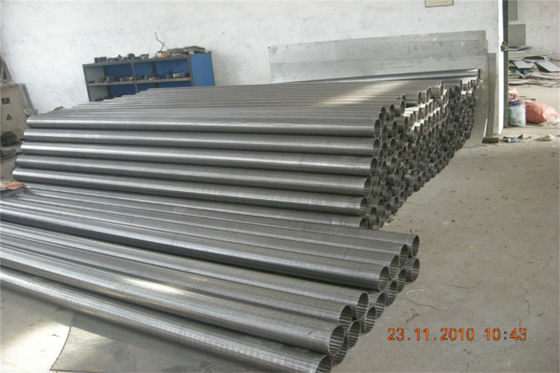

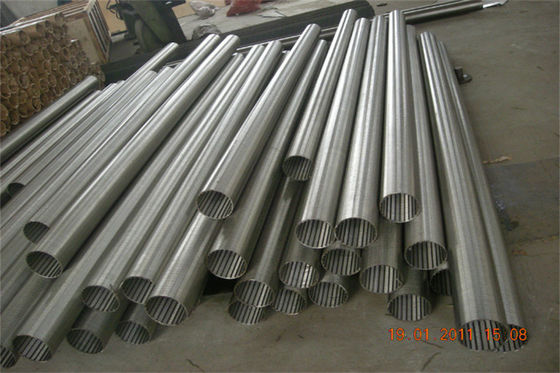

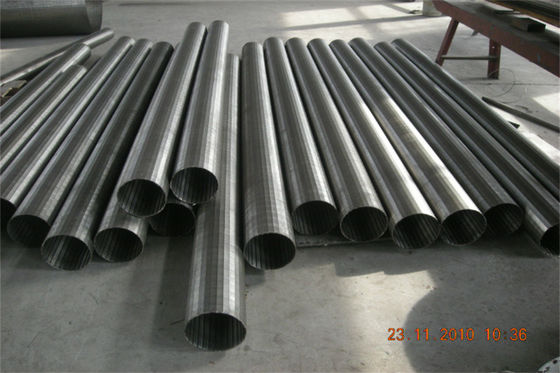

Stainless Steel Pipes 219 Screen Johnson Filter Pipe 8" Spiral Wire Strainer Pipe For Water Well
Pozo De Agua Del Tubo Del Filtro De Johnson De La Pantalla
wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe,
Product Advantages of Stainless steel pipes 219 screen johnson filter pipe water well:
1. Anti-Corrosion Stainless Steel Pipes 219 Screen Johnson Filter Pipe Water Well
2. Selling point: High Strength, Anti-Corrosion, Easy Installation, Anti-Pressure, Rust resistant
3. Surface treatment: Pickling and polishing, Bright
4. Diameter: 2-1/2", 3", 4-1/2", 4-3/4", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16",18", 20"
5. Slot size: 0.1mm, 0.2mm, 0.3mm, 0.4mm,0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be others.
6. Length: 1m, 2m, 3m,10ft, 4m, 5m, 5.85m, 20ft (2.9m/2.95m, or 5.8m / 5.85mto fit container)
7. End connection: Plain beveled ends for butt welding, male/female threaded,Flange, Closed Up etc.
8. Material: Low Carbon, Low Carbon Galvanized steel (LCG),Stainless Steel( 304,etc.), Duplex Stainless Steel, 904L etc.
9. Well deep: v / wedge wire: 2.5x4mm Well deep: 200-300m,
v / wedge wire: 3x4.6mm Well deep: 350-450m
v / wedge wire: 3.3x6.5mm Well deep: 500-650m
Stainless Steel Pipes 219 Screen Johnson Filter Pipe Water Well Application
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Groundwater
Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Salt industry
Customer Service: Custom well screens
Inform us of your specifications for the water well screen, including diameter, slot opening size, length and percentage of open area. Based on that information, we can customized your products.
Main specs for Stainless Steel Pipes 219 Screen Johnson Filter Pipe Water Well
Well Screen material: stainless steel, galvanized low-carbon steel, or custom materials
Slot opening size: 0.1mm-15mm
Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm
Length: 2.9m, 5.85m. The maximum length is 6.05m
Connection method: beveled, circumferential welded, threaded connection
Wedge Wire Stainless Steel Pipes 219 Screen Johnson Filter Pipe Water Well Specification
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE
(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
>22 |
10.2 |
2.3x3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
>28 |
11.5 |
2.3x3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
>33 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.2x6.0 |
6.0MM/32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>34 |
21.9 |
2.3x3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>50 |
38.2 |
3.0x5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
>60 |
46 |
3.2x6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
32.9 |
2.3x3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>60 |
39.5 |
3.0x5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
>100 |
48 |
3.2x6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
>120 |
37.2 |
3.0x5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
>80 |
37.8 |
3.0x5.0 |
4.0MM/59 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Benefits of Wedge Wire Stainless Steel Pipes 219 Screen Johnson Filter Pipe Water Well
1. Maximum Flow Rate
The slots are arranged in a uniform pattern, allowing water to enter the screen directly from all directions of the water bearing area.
2. Excellent Sand Control Performance
Traditional perforated tubes have holes large than 1 cm, which do not keep sand out. Scratches and corrosion on the outer wrap layers leads to more sand, gravel and clay entering the well pipe, which in turn leads to clogging. However, the wedge wire screen has slot openings between 0.5mm and 1.5mm, keeping most sand and abrasive particles out.
3. Long Well Life
Each wedge wire screen undergoes anti-corrosion treatments, rendering it less prone to rust or encrustation.
4. Easy Installation
Wedge wire screens are lighter than cast iron pipes or perforated tubes, making them easier to install.
5. Standard Length
The standard length of each wedge wire screen is 3.2m. Pup joints can be added upon request.
6. Connection Method
Welded, threaded, and flanged connections are available.
Applications for the Wedge Wire Screen
This screen is applicable in vertical wells, deviated wells, directional wells, and others that require sand control.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
