Polishing Stainless Steel 321 Wire Johnson Well Filter Pipes For Groundwater
Water well screen, wedge wire screens, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, stainless steel filter screen, oil well screen, sand control well screen, countinuous slot screen, dewaterin screen pipe, perfect round well screen pipe, v wire screen, stainless steel strainer pipe, pump filter, motor filter, stainless steel filter element, changeable filter element

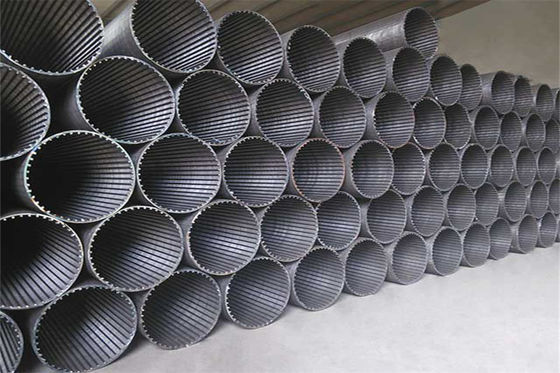

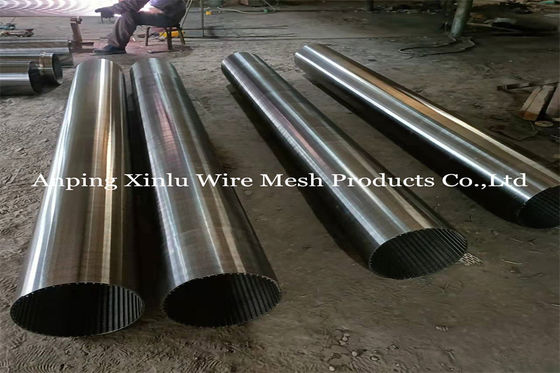

Water Well Screens are designed for construction of well depths of 100 m, 200 m, 350 m & 600 m. Custom deep wells available upon request. It is manufactured using our unique digital controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded onto support rods to form a pipe screen.
This V shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.
Well screens have high opening area, as well as accurate slot dimension. When compared to conventional perforated liners, Water Well Screens have superior open area due to their continuous slot openings.
The Benefits of using profile wire well screens rather than perforated screen:
Reduced energy consumption and increased water flow.
Reduced erosion of entry surfaces and increased well life.
Allowing a uniform and efficient well development.
Reduced significantly potential pump damage and subsequent maintenance costs.
Materials of Construction: Polishing Stainless Steel 321 Wire Johnson Well Filter Pipes For Groundwater
AISI 304 & 316 grade Stainless Steel, Low Carbon Steel, Galvanized Steel…
Screen lengths (metres)
Standard water well lengths: 2,90 m up to 6 m.

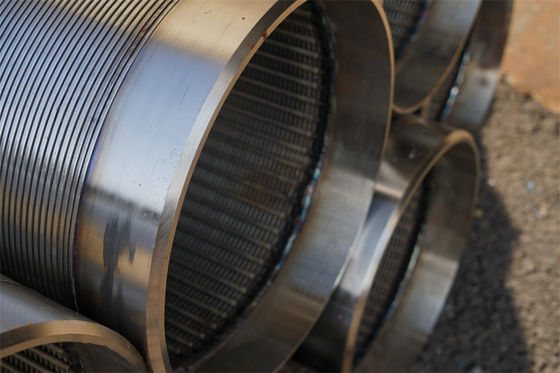

Styles of connection: by welding or by threaded male/female couplings.

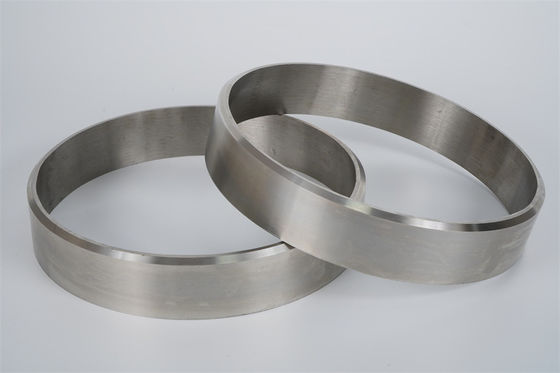

End connection: Plain beveled ends for butt welding or threaded
Compared with carbon or galvanized steel, Stainless Steel Well Screens have many advantages:
1. Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal shape filter screen offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire stainless steel filter screen is easy for washing, long service life, safe, reliable, comprehensive and low cost.
6. Heat-resisting, anti-corrosive, good machine capability
7. Long life span, safety and reliability
Uses: Stainless steel water well screen can use with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry as the petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters and so on.
Polishing Stainless Steel 321 Wire Johnson Well Filter Pipes For Groundwater Specification list
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
＞22 |
10.2 |
2.3x3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
＞28 |
11.5 |
2.3x3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2x6.0 |
6.0MM/32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3x3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0x5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2x6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.3x3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0*5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2x6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0x5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
＞80 |
37.8 |
3.0x5.0 |
4.0MM/59 |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q7. What's the wire?
A: Profile wire: 1.5x2mm, Support Wire: 1.8x2.5mm / 24pcs
