Steel Aisi 304 (08x18h10) Replaceable Filter Element Od 126 Well Screen Pipe
Water well screen, wedge wire screens, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, stainless steel filter screen, oil well screen, sand control well screen, countinuous slot screen, dewaterin screen pipe, perfect round well screen pipe, v wire screen, stainless steel strainer pipe, pump filter, motor filter, stainless steel filter element, changeable filter element

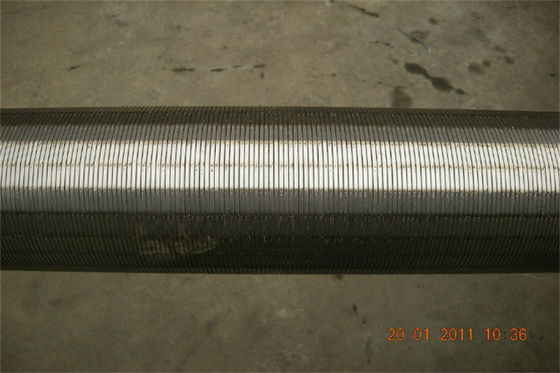

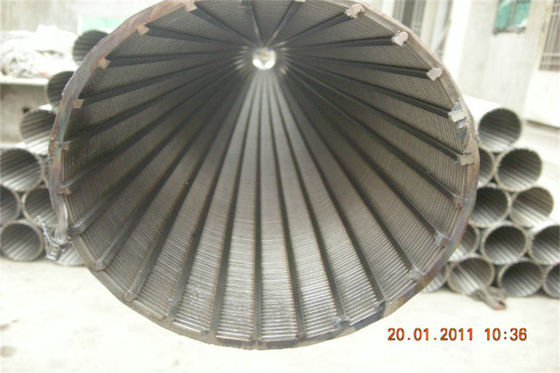

Water Well Screens are designed for construction of well depths of 100 m, 200 m, 350 m & 600 m. Custom deep wells available upon request. It is manufactured using our unique digital controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded onto support rods to form a pipe screen.
Products Quick Details:
replaceable filter element without coating
Another name: Johnson wire screens, Changeable filter element

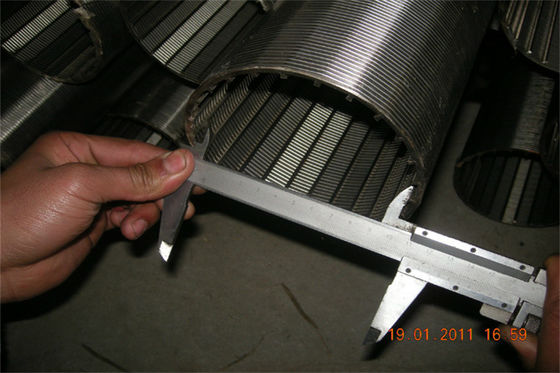

outer diameter 126 mm
internal diameter 116.0 mm,
length 1000mm, 1500mm, 2000mm, 3000 mm.
material: Steel Aisi 304 (08x18h10)
slot size: 0.1mm, 0.15,. 0.2mm, 0.25mm, 0.3mm
Vee Wire Screen performances depend on several parameters, including profile wire and rod shape, construction, steel grade and microstructure as well as slot accuracyover the full length of the screen.
To meet the most demanding requests, Xinlu company has been investing in stateof-the-art wire drawing and annealing capabilities as well as wire wrap machines to supply screens from range I to range III and from 1inch up to 40inch OD.
Over the last 5 years we have doubled our manufacturing capacity by adding new equipment and expanding our factories.
Construction
Materials
Stainless steel types 304L, 316L and 904L according to ASTM A580.
Other corrosion-resistant alloys are available on request.
SLOT SIZES
Between 0.1 and 3 mm
PROFILES
we have the technology to manufacture VEE-Wire
Steel Aisi 304 (08x18h10) Replaceable Filter Element Od 126 Well Screen Pipe advantages:
1. Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal shape filter screen offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire stainless steel filter screen is easy for washing, long service life, safe, reliable, comprehensive and low cost.
6. Heat-resisting, anti-corrosive, good machine capability
7. Long life span, safety and reliability
Uses: Stainless steel water well screen can use with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry as the petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters and so on.
Steel Aisi 304 (08x18h10) Replaceable Filter Element Od 126 Well Screen Pipe Specification list
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
＞22 |
10.2 |
2.3x3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
＞28 |
11.5 |
2.3x3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2x6.0 |
6.0MM/32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3x3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0x5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2x6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.3x3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0*5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2x6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0x5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
＞80 |
37.8 |
3.0x5.0 |
4.0MM/59 |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q7. What's the wire?
A: Profile wire: 1.5x2mm, Support Wire: 1.8x2.5mm / 24pcs
