Aisi 304 Replaceable Filter Element ID 116 Johnson Wire Screen Without Coating
Water well screen, wedge wire screens, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, stainless steel filter screen, oil well screen, sand control well screen, countinuous slot screen, dewaterin screen pipe, perfect round well screen pipe, v wire screen, stainless steel strainer pipe, pump filter, motor filter, stainless steel filter element, changeable filter element

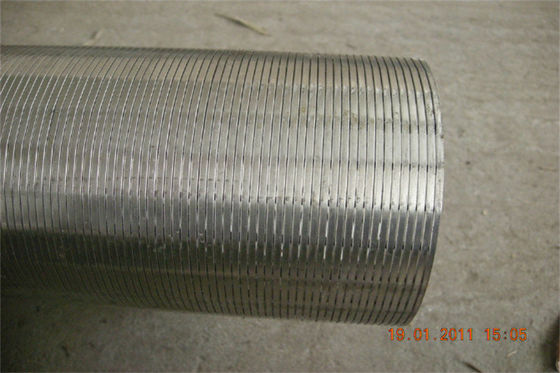

Water Well Screens are designed for construction of well depths of 100 m, 200 m, 350 m & 600 m. Custom deep wells available upon request. It is manufactured using our unique digital controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded onto support rods to form a pipe screen.
Products Quick Details:
replaceable filter element without coating
Another name: Johnson wire screens, Changeable filter element

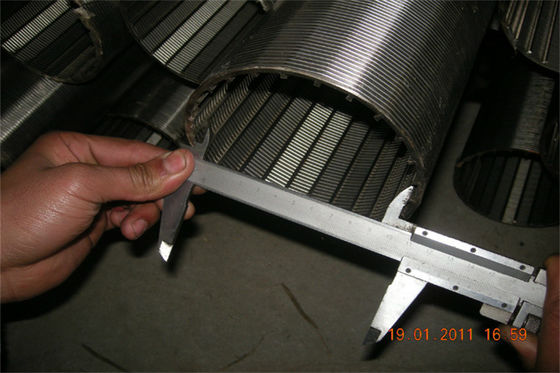

outer diameter 125 mm
internal diameter 116.0 mm,
length 1000mm, 1500mm, 2000mm, 3000 mm.
material: Steel Aisi 304 (08x18h10)
slot size: 0.1mm, 0.15,. 0.2mm, 0.25mm, 0.3mm

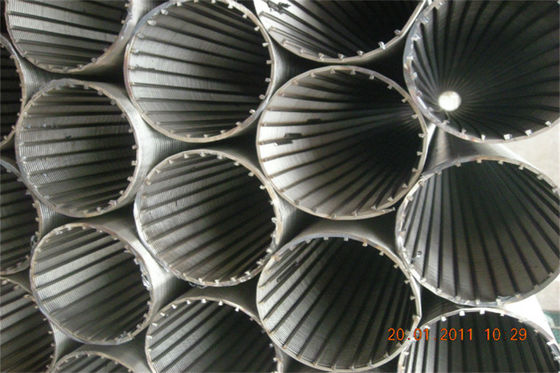

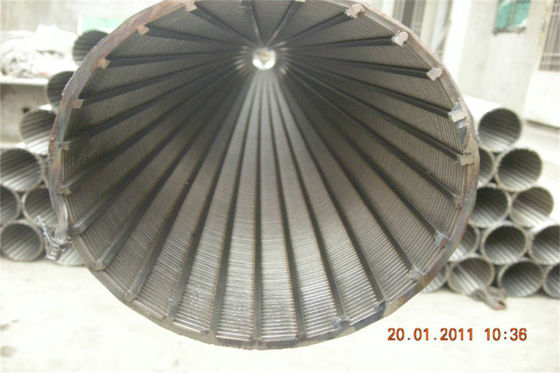

Profile wire: 1.5x2.5mm Support wire: 2x3mm
Profile wire; 1.5x2mm, Support 1.5x2.5mm
ADVANTAGES: Aisi 304 Replaceable Filter Element ID 116 Johnson Wire Screen Without Coating
V-wire / Wedge-wire screen construction, developed over a century for a world wide demanding customer base, optimises flow rates, minimises clogging thus helping faster formation development.
MAXIMISING FLOW RATES: Aisi 304 Replaceable Filter Element ID 116 Johnson Wire Screen Without Coating
When considering screens of equal length, diameter and slot size, flow rates through Vee-Wire screens can be:
• three times higher than bridge-slot screens
• nine times higher than slotted casing
NON CLOGGING SLOT: Aisi 304 Replaceable Filter Element ID 116 Johnson Wire Screen Without Coating
Xinlu Vee-Wire is designed to provide unique structural strength.
The “V” shaped openings allow only two contact points with sand grains, thus reducing clogging and making cleaning easier.
More efficient well: Aisi 304 Replaceable Filter Element ID 116 Johnson Wire Screen Without Coating
At th end of the “well development”, in which finer sand grains are pumped into the well and removed, only the larger sand and gravel particles are left next to the well screen; the water then passes freely around these coarse particles and enters the well.
APPLICATIONS: Aisi 304 Replaceable Filter Element ID 116 Johnson Wire Screen Without Coating
Continuous slot Vee-Wire screens are recommended for the following installations:
• formation comprised of small or fine particles
• water wells where gravel packs will be installed
• thin aquifers, where maximum open area is required
• small diameter wells
Aisi 304 Replaceable Filter Element ID 116 Johnson Wire Screen Without Coating Specification list
|
SIZE
(INCH)
|
O.D
(MM)
|
SLOT
(MM)
|
LENGTH
(M)
|
COLLAPSE
STRENGTH
(BAR)
|
TENSILE
WEIGHT
(TON)
|
WRAP WIRE(WIDTH*HEIGHT)
(MM)
|
RODS
(MM)
|
| 3-1/2 |
88.9 |
1.0 |
3 |
＞22 |
10.2 |
2.3x3.5 |
3.8MM/22 |
| 4-1/2 |
114.3 |
1.0 |
3 |
＞28 |
11.5 |
2.3x3.5 |
3.8MM/22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.3x3.5 |
3.8MM/32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2x6.0 |
6.0MM/32 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3x3.5 |
3.8MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0x5.0 |
4.0MM/48 |
| 8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2x6.0 |
5.0MM/48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.3x3.5 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0*5.0 |
4.9MM/55 |
| 10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2x6.0 |
5.0MM/55 |
| 12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0x5.0 |
4.0MM/50 |
| 14 |
355.6 |
1.0 |
3 |
＞80 |
37.8 |
3.0x5.0 |
4.0MM/59 |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q7. What's the wire?
A: Profile wire: 1.5x2mm, Support Wire: 1.8x2.5mm / 24pcs
