Easy Installation Johnson V Wire Filter Nozzle / Wedge Wire Strainer Nozzle
Continuous Slot Screen Nozzle also be named Water Filter Nozzle, Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.
Product Description

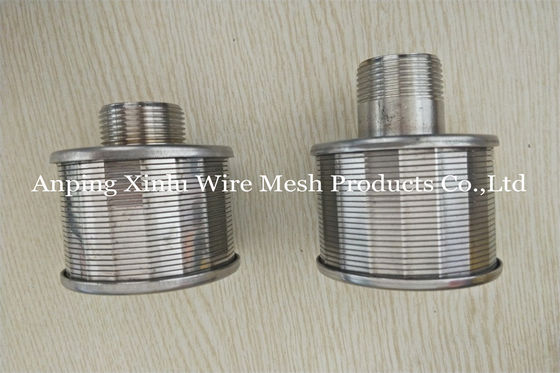

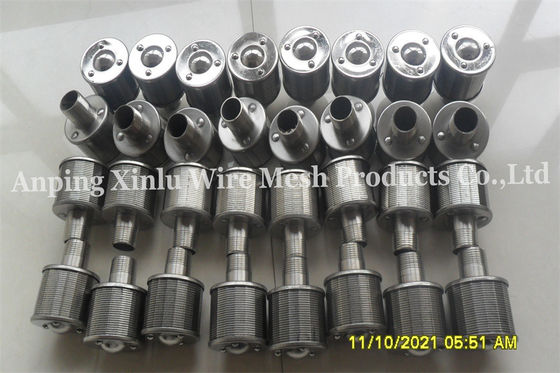

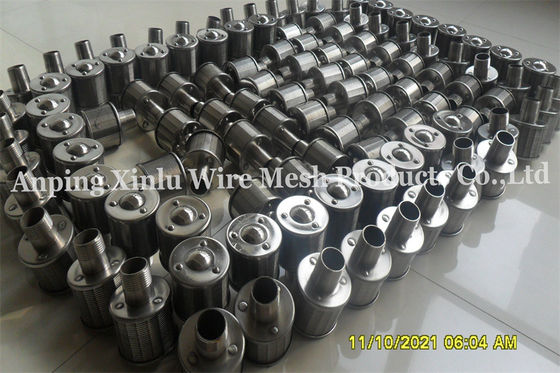

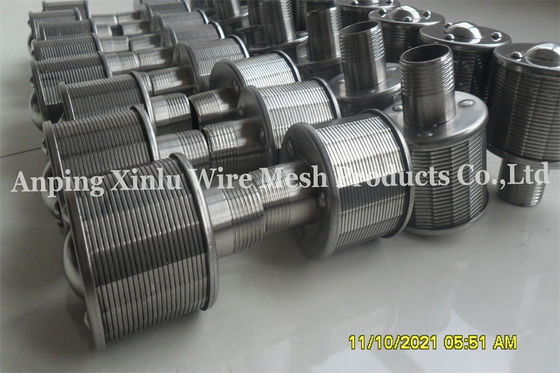

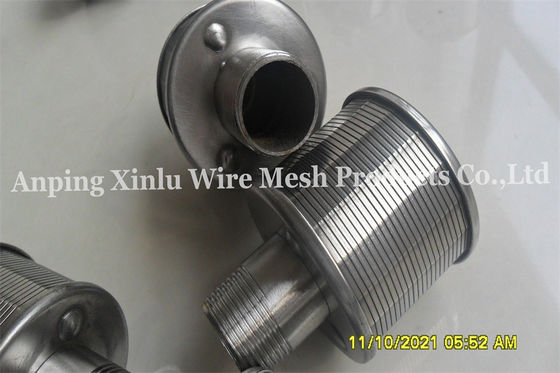

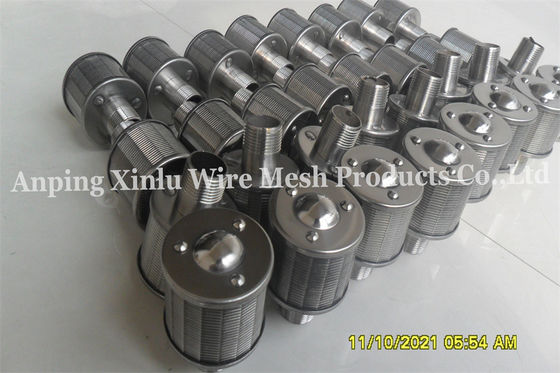

Stainless steel Wedge wire water filter nozzle is also known as Johnson wire filter nozzle, it is fabricated with a blind cap on one end and washer fixed with a threaded stem on the other end and can be secured with a nut and washer, usually installed in a vessel by an orifice plate. Usually, it is produced to suit customer requirements and are not restricted by screen diameter, connection type, slot or length. These Johnson screen filter nozzles are used in common water treatment processes for activated carbon absorption, removal of suspended solids, sand, gravel or ion exchange.
| Name |
Easy Installation Johnson V Wire Filter Nozzle / Wedge Wire Strainer Nozzle |
| Color |
Silver |
| Port |
Tianjin |
| Applications |
Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. For example, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters. It also can be used as collectors at the bottom of the vessels. |
Water & Gas Strainer Nozzle
Water & Gas strainer nozzle (johnson type screen nozzles) are manufactured in accordance to customer flow requirements in almost any alloy. They can be designed for filtration or treatment systems to permit more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide rang of water treatment and other industrial applications. Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters. Strainers can also be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.The combination of high open area and a non-plugging slot design makes this nozzle /collector application pupilar.
Easy Installation Johnson V Wire Filter Nozzle / Wedge Wire Strainer NozzleRegular Specifications:
| Type |
Slot size |
Specifications |
Flow filter area
0.2mm slot ( reference) |
| D |
H |
L |
M |
| XL-FN-45-A |
0.2-0.5 |
45 |
25 |
90 |
25 |
280 |
| XL-FN-45-B |
0.2-0.5 |
45 |
35 |
100 |
25 |
380 |
| XL-FN-45-C |
0.2-0.5 |
45 |
45 |
110 |
25 |
550 |
| XL-FN-45-D |
0.2-0.5 |
45 |
35 |
55 |
25 |
380 |
| XL-FN-45-E |
0.2-0.5 |
45 |
45 |
65 |
25 |
550 |
| XL-FN-53-A |
0.2-0.5 |
53 |
35 |
100 |
25 |
450 |
| XL-FN-53-B |
0.2-0.5 |
53 |
45 |
110 |
25 |
580 |
| XL-FN-53-C |
0.2-0.5 |
53 |
55 |
120 |
32 |
700 |
| XL-FN-57-A |
0.2-0.5 |
57 |
35 |
100 |
32 |
530 |
| XL-FN-57-B |
0.2-0.5 |
57 |
45 |
110 |
32 |
680 |
| XL-FN-57-C |
0.2-0.5 |
57 |
55 |
120 |
32 |
830 |
| XL-FN-70-A |
0.2-0.5 |
70 |
40 |
105 |
32 |
650 |
| XL-FN-70-B |
0.2-0.5 |
70 |
55 |
115 |
32 |
810 |
Note
1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.
4. Material:304,321,316,316L,904L ,HastalloyB and C, ets
5. We can also make any other size according to your drawing
Pls feel free to cotact me if you have any requirement.
Continous Slot Screen Nozzle Application:
Rapid and gravity sand filters
Activated carbon vessels
Demineralizers/water softeners filters
Ion exchange columns
Collectors and distributors
Water distributor
tank
power plant
OEM service:
Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.
3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.
4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.
5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.
